3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer

3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer
3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer

Large Image :  3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5096CEG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Trailer Tank Capacity: 40m3-61.9m3 Corrosion Allowance: 1.0mm
Design Temperature: -19~50 Degree Tank Material: Q345r, Q370r, Or SA516gr70, Etc.
Axle Brand: BPW, Fuwa, York, Etc. Curb Weight: 15000kg
Hydraulic Test Pressure: 2.1MPa Filling Factor: 420-590kg/M3
Tire: 12r22.5 Heat Treatment: Entire Tank
Air Tightness Test: Yes Hydraulic Test: Yes
Life Time: 20 Years Color And Logo: Customized
Warranty: 1 Year
High Light:

25mt Liquid Propane Transport Tanker

,

3 Axle Delivery Semi Trailer

3 Axle 25mt 58.5m3 Liquid Propane Transportsemi Trailer





Product Description

1) LPG semi-trailer function :

  • transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
  • We can offer lpg bridger truck tanker trailers from 40cbm to 61.9cbm.

2) Manufacturing standards of LPG Transport Tanker Trailer :

  • GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

3) Optional accessories of LPG Transport Tanker Trailer:

  • ROCHESTER level gauge
  • flow meter
  • sunshelter
  • lpg pump
  • lpg dispenser machine
  • filling hose

4) Available tanker trailer capacity of LPG Transport Tanker Trailer:

  • From 40cbm to 61.9cbm


Product Specification

Item Parameter
Tank Description of LPG tank 60m3 LPG semi-trailer
Type number CLW9440GYQA
Volume 58.5CBM
GVW 40000KG
Overall dimensions (mm) 12900*2500*3980
Curb weight(kg) 15430
Approach Angle/Angle of departure -/20 (°)
Wheel base 7092+1310+1310(mm)
Tire 12R22.5 12PR
Axle Number 3
Type of vessel The third kind
Design pressure 1.61MPa
Design temperature -19~50ºC
Filling medium Liquid petroleum gas (propane)
Corrosion allowance 1.0mm
volume 58.5 CBM
Thermal treatment The entirety
Filling factor 420-590kg/CBM
Material of the tank Q345R or sa516gr70
Hydraulic test pressure 2.1 MPa
Cylinder thickness 8mm
Head thickness 8mm
Service time 20 years
Liquid level indicator Type Float ball level gauge
Normal pressure 2.5MPa
Scope of testing 50-2300mm
Precision 2.5
Safety valve Model A42F-2.5-80
Version Built-in
Normal pressure 2.5 M Pa
Normal diameter DN80
Opening pressure 1.68~1.76M Pa
Re-seating pressure >=0.8 times of the opening pressure
Loading and unloading system Normal diameter Feed pip DN80
Drain pip DN80
Admission port DN80
Sewage outfall port DN80
Vent nozzle port DN80
Standard GB150 <pressure vessel>TSG R0004-2009 or ASME
Specification Designed Pressure: 1.77Mpa
Filling Ratio: 0.42-0.59 kg/L
Working Temperature:-50ºC
Corrosion Allowance: 1mm
Standard configuration 13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender.



Reference Photos

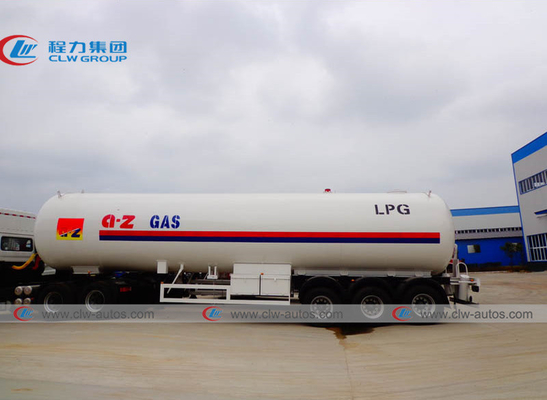

3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 0

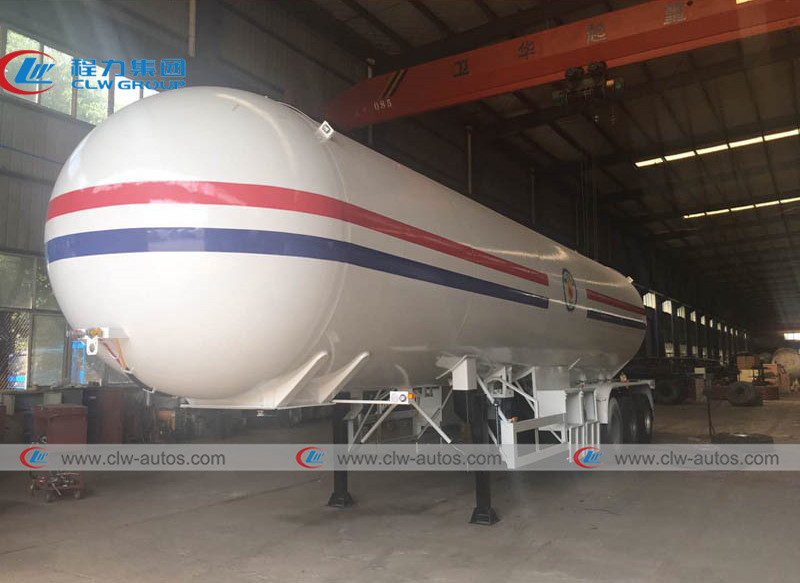

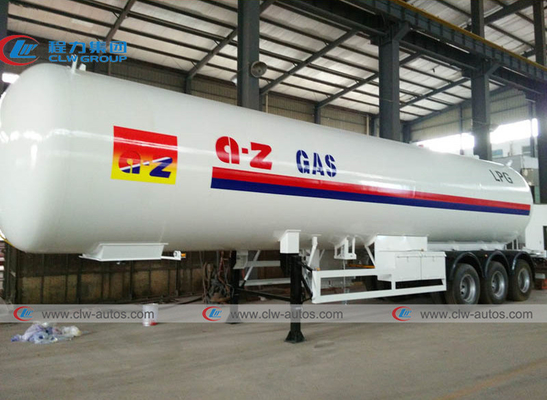

3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 13 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 2



Main Structure Diagram

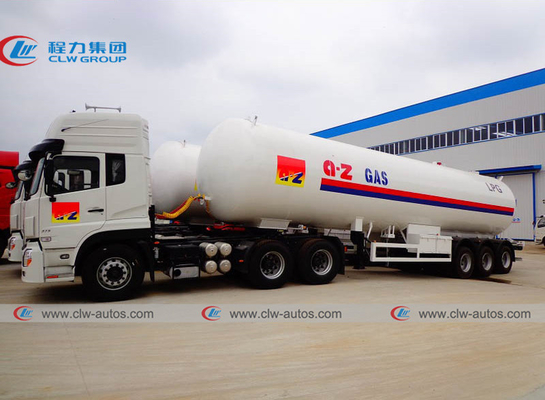

3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 3

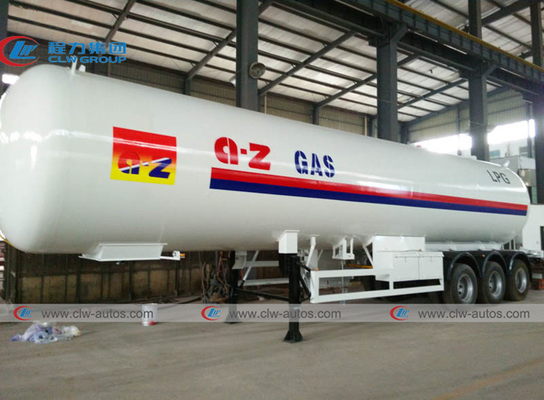

3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 4

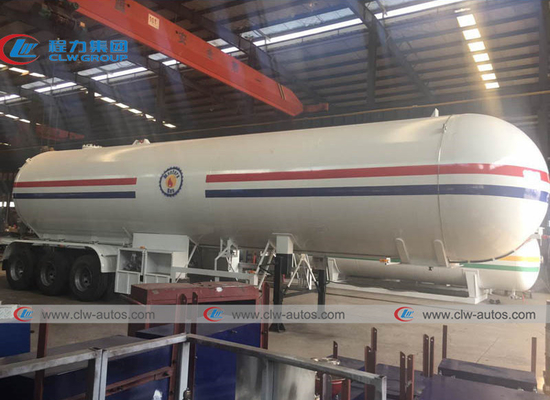

3 Axle 25mt 58.5m3 Liquid Propane Transport Tanker Delivery Semi Trailer 5



Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of lpg tank trailer I can order from your company?

A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.



Q2: What's the material of your lpg tanker?

A: We usually provide Q345R, Q370R, Q420R for customer's choice.



Q3: What is your production standard of lpg tank trailer? Whether your lpg tank trailer been exported to USA, Canada and Europen countries?

A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported lpg tank trailer super structure to Europen countries before.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Contact Ms Eunice Xu (whatsapp +86 15571397992) for any details.
