LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt

LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt
LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt

Large Image :  LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5096CEG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Trailer Tank Capacity: 40m3-61.9m3 Corrosion Allowance: 1.0mm
Design Temperature: -19~50 Degree Tank Material: Q345r, Q370r, Or SA516gr70, Etc.
Axle Brand: BPW, Fuwa, York, Etc. Curb Weight: 15000kg
Hydraulic Test Pressure: 2.1MPa Filling Factor: 420-590kg/M3
Tire: 12r22.5 Heat Treatment: Entire Tank
Air Tightness Test: Yes Hydraulic Test: Yes
Life Time: 20 Years Color And Logo: Customized
Warranty: 1 Year Material: Steel, Q370R, Q345, Q345R,Q370R Etc
Type: Semi-Trailer, Oil Tank Semi-trailer, Full Trailer
High Light:

LPG Semi Trailer 25mt

,

Q345r LPG Semi Trailer

LPG Semi-Trailer 59.52m3 25mt Liquid Propane Transportation Tanker Delivery Trailer





Product Description

LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer.

It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.




1) LPG semi-trailer function :

  • transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
  • We can offer lpg bridger truck tanker trailers from 40cbm to 61.9cbm.

2) Manufacturing standards of LPG Transport Tanker Trailer :

  • GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

3) Optional accessories of LPG Transport Tanker Trailer:

  • ROCHESTER level gauge
  • flow meter
  • sunshelter
  • lpg pump
  • lpg dispenser machine
  • filling hose

4) Available tanker trailer capacity of LPG Transport Tanker Trailer:

  • From 40cbm to 61.9cbm


Product Specification

Item Parameter
Tank Description of LPG tank 60m3 LPG semi-trailer
Type number CLW9440GYQA
Volume 59.52 CBM
GVW 40000KG
Overall dimensions (mm) 12900*2500*3980
Curb weight(kg) 15430
Approach Angle/Angle of departure -/20 (°)
Wheel base 7092+1310+1310(mm)
Tire 12R22.5 12PR
Axle Number 3
Type of vessel The third kind
Design pressure 1.61MPa
Design temperature -19~50ºC
Filling medium Liquid petroleum gas (propane)
Corrosion allowance 1.0mm
volume 59.52 CBM
Thermal treatment The entirety
Filling factor 420-590kg/CBM
Material of the tank Q345R or sa516gr70
Hydraulic test pressure 2.1 MPa
Cylinder thickness 8mm
Head thickness 8mm
Service time 20 years
Liquid level indicator Type Float ball level gauge
Normal pressure 2.5MPa
Scope of testing 50-2300mm
Precision 2.5
Safety valve Model A42F-2.5-80
Version Built-in
Normal pressure 2.5 M Pa
Normal diameter DN80
Opening pressure 1.68~1.76M Pa
Re-seating pressure >=0.8 times of the opening pressure
Loading and unloading system Normal diameter Feed pip DN80
Drain pip DN80
Admission port DN80
Sewage outfall port DN80
Vent nozzle port DN80
Standard GB150 <pressure vessel>TSG R0004-2009 or ASME
Specification Designed Pressure: 1.77Mpa
Filling Ratio: 0.42-0.59 kg/L
Working Temperature:-50ºC
Corrosion Allowance: 1mm
Standard configuration 13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender.

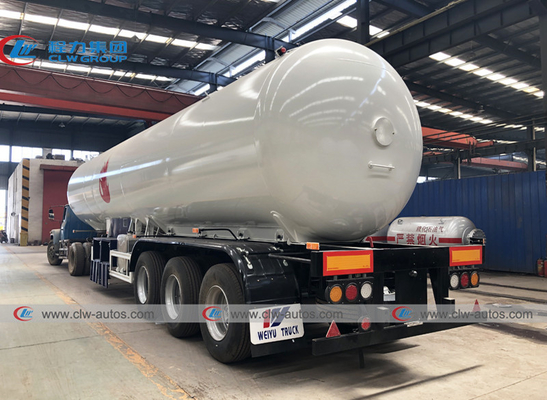

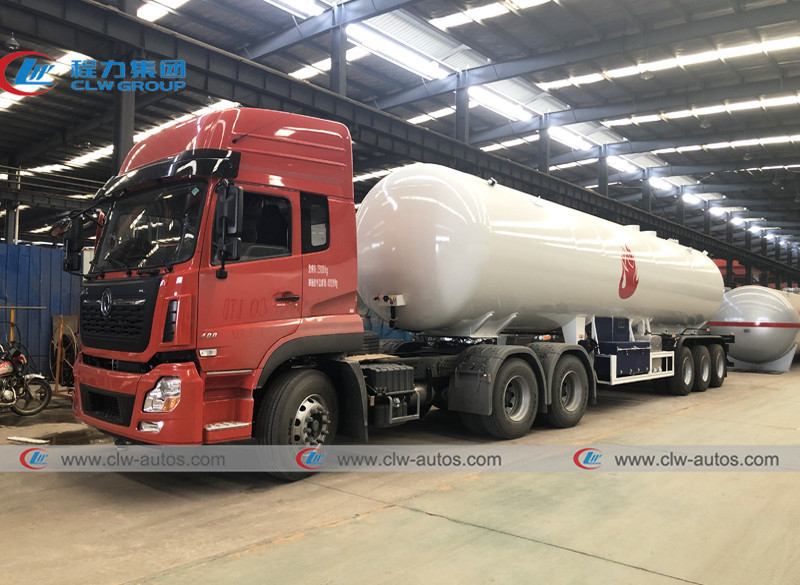

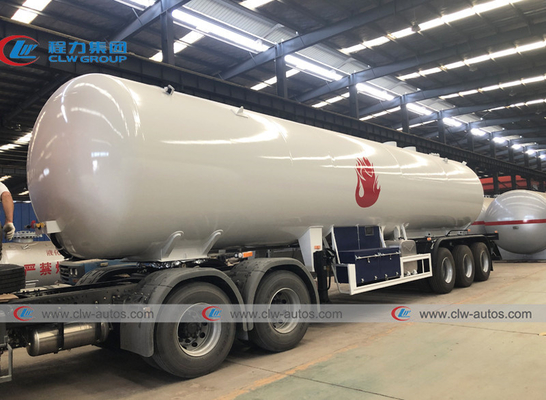

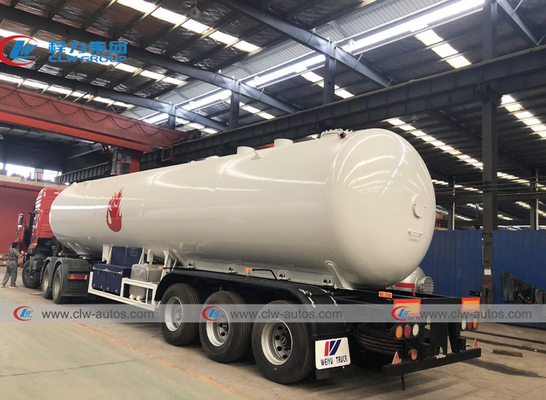

Reference Photos

LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt 0
LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt 1
LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt 2

LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt 3






Main Structure Diagram

LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt 4

LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt 5

LPG Semi Trailer Liquid Propane Transportation Tanker Delivery Trailer 59.52m3 25mt 6



Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of lpg tank trailer I can order from your company?

A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.



Q2: What's the material of your lpg tanker?

A: We usually provide Q345R, Q370R, Q420R for customer's choice.



Q3: What is your production standard of lpg tank trailer? Whether your lpg tank trailer been exported to USA, Canada and Europen countries?

A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported lpg tank trailer super structure to Europen countries before.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Contact Ms Eunice Xu (whatsapp +86 15571397992) for any details.
