Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Q345R, Q370R, Q420R SA516gr70 For Pressure Vessel | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | LPG Tanker: | 50M3, 50 Cubic Meters, 50000 LITERS, 25tons |
| Design Temperature: | -19~50 Degree | Hydraulic Test Pressure: | 2.1MPa |
| Heat Treatment: | Entire Tank | Transport: | LPG. Liquid Petroleum Gas, Propane |
| Tank Shape: | Double Ellipse, Or Hemispherical | Tank Capacity: | 40M3 45M3 46M3 48M3 50M3 56M3 60M3, 61.9M3 |
| High Light: | Q420R LPG Tanker Semi Truck,Gas Tank Semi Trailer 25T |
||

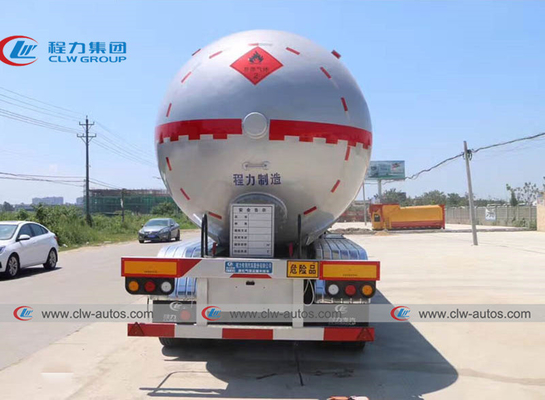

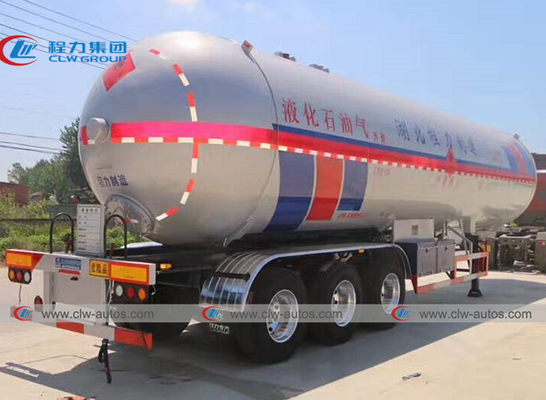

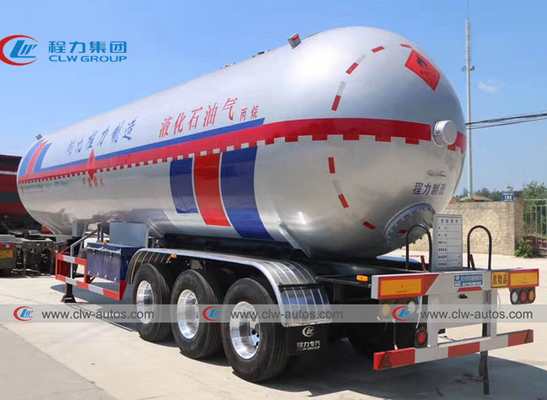

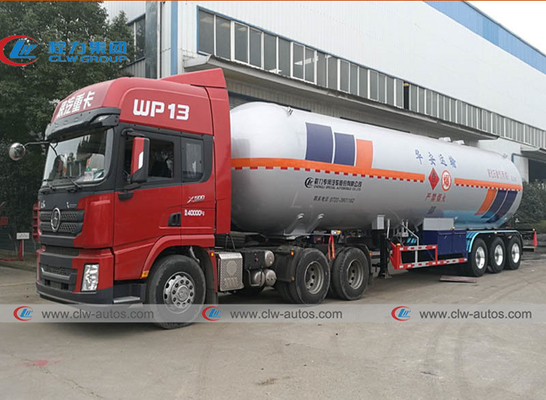

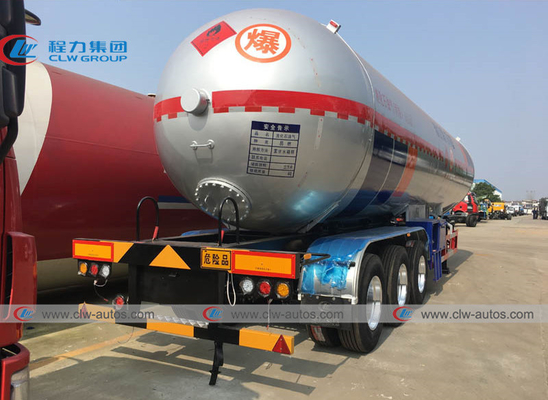

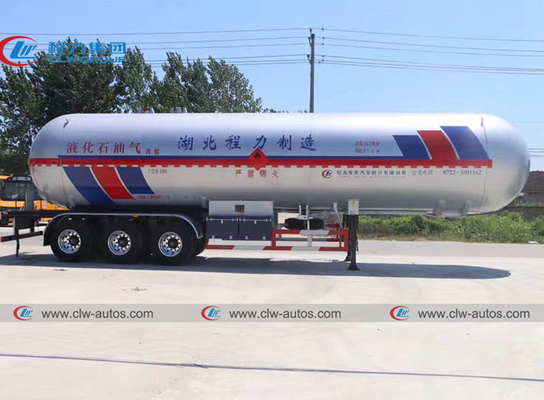

61.9cbm 25T Q345R Q370R Q420R LPG tanker semi truck Gas Tank Semi Trailer
Description:
1) LPG semi-trailer function :
2) Manufacturing standards of LPG Transport Tanker Trailer :
3) Optional accessories of LPG Transport Tanker Trailer:
4) Available tanker trailer capacity of LPG Transport Tanker Trailer:
product Specification
| Item | Parameter | ||
| Tank | Description of LPG tank | 61.9m3 LPG semi-trailer | |
| Type number | CLW9440GYQA | ||
| Volume | 61.9CBM | ||
| GVW | 42,250KG | ||
| Overall dimensions (mm) | 13350*2550*3995 | ||
| Curb weight(kg) | 16250 | ||
| Approach Angle/Angle of departure | -/20 (°) | ||
| Wheel base | 7230+1310+1310(mm) | ||
| Tire | 12R22.5 12PR | ||
| Axle Number | 3 | ||
| Type of vessel | The third kind | ||
| Design pressure | 1.61MPa | ||
| Design temperature | -19~50ºC | ||
| Filling medium | Liquid petroleum gas (propane) | ||
| Corrosion allowance | 1.0mm | ||
| volume | 61.9CBM | ||
| Thermal treatment | The entirety | ||
| Filling factor | 420-590kg/CBM | ||
| Material of the tank | Q345R or sa516gr70 | ||
| Hydraulic test pressure | 2.1 MPa | ||
| Cylinder thickness | 8mm | ||
| Head thickness | 8mm | ||
| Service time | 20 years | ||
| Liquid level indicator | Type | Float ball level gauge | |
| Normal pressure | 2.5MPa | ||
| Scope of testing | 50-2300mm | ||
| Precision | 2.5 | ||
| Safety valve | Model | A42F-2.5-80 | |
| Version | Built-in | ||
| Normal pressure | 2.5 M Pa | ||
| Normal diameter | DN80 | ||
| Opening pressure | 1.68~1.76M Pa | ||
| Re-seating pressure | >=0.8 times of the opening pressure | ||
| Loading and unloading system | Normal diameter | Feed pip | DN80 |
| Drain pip | DN80 | ||
| Admission port | DN80 | ||
| Sewage outfall port | DN80 | ||
| Vent nozzle port | DN80 | ||
| Standard | GB150 <pressure vessel>TSG R0004-2009 or ASME | ||
| Specification | Designed Pressure: 1.77Mpa Filling Ratio: 0.42-0.59 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm |
||
| Standard configuration | 13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender. | ||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
