Product Details:
Payment & Shipping Terms:
|
| Trailer Tank Capacity: | 40m3-61.9m3 | Corrosion Allowance: | 1.0mm |
|---|---|---|---|
| Design Temperature: | -19~50 Degree | Tank Material: | Q345r, Q370r, Or SA516gr70, Etc. |
| Axle Brand: | BPW, Fuwa, York, Etc. | Curb Weight: | 15000kg |
| Hydraulic Test Pressure: | 2.1MPa | Filling Factor: | 420-590kg/M3 |
| Tire: | 12r22.5 | Heat Treatment: | Entire Tank |
| Air Tightness Test: | Yes | Hydraulic Test: | Yes |
| Life Time: | 20 Years | Color And Logo: | Customized |
| Warranty: | 1 Year | ||
| High Light: | Acrylic LP Gas Tank Semi Trailers,LP Gas Tank Semi Trailers |
||
57.1M3 lpg Tanker For LPG Transport petroleum acrylic LP Gas tank Semi-trailers
Product Description
LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer. It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.
1) LPG semi-trailer function :
2) Manufacturing standards of LPG Transport Tanker Trailer :
3) Optional accessories of LPG Transport Tanker Trailer:
4) Available tanker trailer capacity of LPG Transport Tanker Trailer:
Product Specification
| 54000 Liters LPG tank trailer | |
| Volume (Liters) | 57100 |
| Curb Weight (kg) | 15780 |
| Loading capacity (kg) | 23520 |
| Overall Dimension (mm) | 12700x2500x3975 |
| Number of axles (mm) | 3 |
| Wheel Base (mm) | 6800+1310+1310 |
| Approach/Departure Angle (°) | -/26 |
| Track Rear (mm) | 1840/1840/1840 |
| Front/Rear Overhang (mm) | -/1450 |
| Number of springs(F/R) | -7/7/7 |
| Maximum Axle-load (kg) | -/24000 |
| Tire specification |
Triangle Tubeless 11.00R20 Aluminum Alloy Rim |
| Tank material | Q370R |
| Thickness (mm) | 12 |
| Endplate thickness | 14 |
| Tank Color | White |
| Standard configuration | 13 tons of FUWA shaft, valve cover, single-fluid two-valve boxes, JOST legs, 2 inches (50mm) JOST traction pins, two sets of liquid level gauge (Automatic gauge in the front, Manual in the rear), pressure gauge, thermometer, emergency shut-off valve, anti-static grounding tape, fence , tire fenders |
| Others | Filling medium:LPG(propane);designing pressure 1.77Mpa,designing temperature 50ºC,filling factor:0.42t/m3,corrosion margin:1mm;tank dimension:12311*2466mm |
| Standard | GB150-1998 Steel Pressure Vessels,Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection procedures |

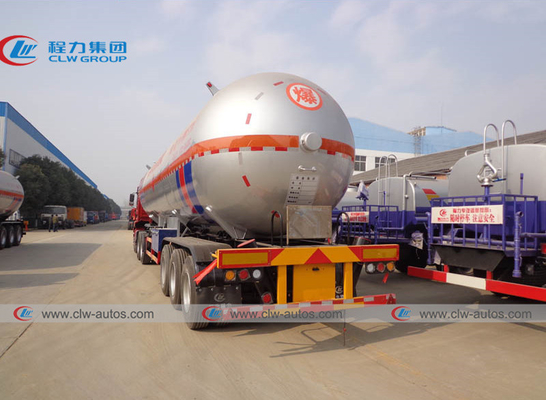

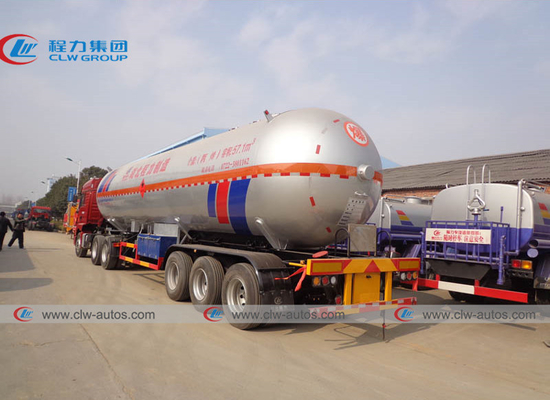

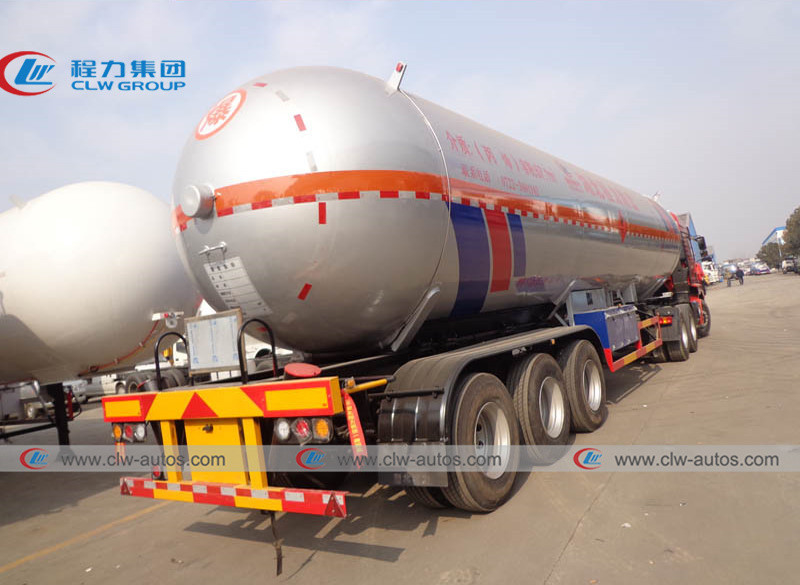

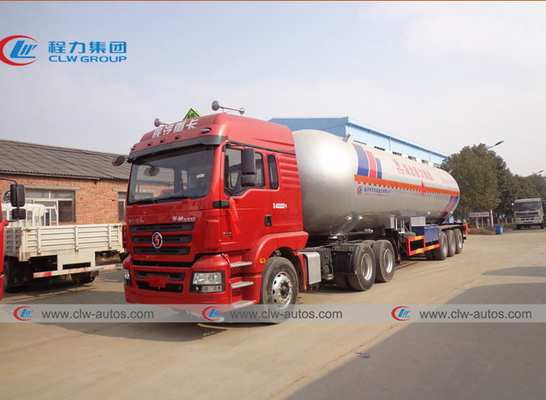

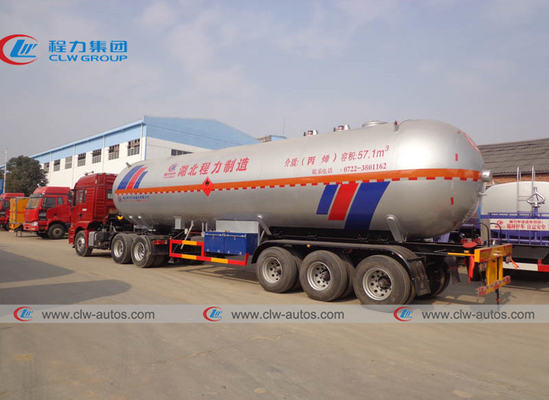

Reference Photos
Main Structure Diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of lpg tank trailer I can order from your company?
A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.
Q2: What's the material of your lpg tanker?
A: We usually provide Q345R, Q370R, Q420R for customer's choice.
Q3: What is your production standard of lpg tank trailer? Whether your lpg tank trailer been exported to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported lpg tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
