Product Details:
Payment & Shipping Terms:
|
| Axle: | FUWA, BPW, L1, Zhengyang Brand | Axle Loading: | 13tons, Or 16tons. 20Tons |
|---|---|---|---|
| Nos. Of Alxe: | 2 Axle, 3 Axle, 4 Axle, 5 Axle, 6 Axle | Suspension: | Front: Air Bag, Rear: Mechenical Suspension. |
| Length: | 13 Meters, Extendable To 16 Meters | Landing Gear: | JOST Brand, Or Fuwa Brand |
| Capacity: | 40tons, 50tons, 60 Tons, 80 Tons. | Function: | Construction Machinery, Timber Log Transport |
| Product Name: | Lowbed, Low Bed , Low Loader, Lowboy Trailer | Load: | 50 60 80 100 Tons |
| Leaf Spring: | 10 Pieces, 12 Pieces, 13 Pieces | Other Equipment: | Hydraulic/Mechanical Rear Ladder |
| High Light: | 2 Axle Lowbed Lowboy Semi Trailer,Lowboy Semi Trailer 40Tons |
||
Goods Description:
Lowbed semi trailer is designed for stevedoring and transporting for Excavator , wheel loader or Other Heavy Duty Equipment.
CLW Group with many years' international business experience . We visit overseas customers many times per year . our lowbed semi trailer is designed according to the real market survy . The main points of the lowbed semi trailer ( like gooseneck , suspention , side beam ) with reinforced process . So that , the lowbed trailer could run well for the final user.
Features:
1. Different length available.
2. Gooseneck type: hydraulic gooseneck, detatchable gooseneck, radial gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.
3. Line lowbed available.
4. Platform extendable, super low platform availale.
5. Twist lock available.
6. Fence available.
Parameters:
| Dimension and Weight | |
| Overall Dimension(mm) | 13000x3000x1650mm |
| Working Deck Dimension(mm) | 9000x3000x1350mm |
| Platform thickness(mm) | 4mm |
| Main Beam |
"H"main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
| Wheelbase | 7,650mm+1,310mm+1,310mm |
| Payload | 60,000kg |
| Tare weight | 9,000kg |
| G.V.W.R. | 69,000kg |
| Function | To transport bulk goods or heavy equipment like loader or excavator |
| Running System | |
| Axle |
13Ton, ZY brand optional FUWA brand, one hundred fifty thousand Kilometers no need maintenance |
| Axle Number | Three |
| Tire | 1100R20, 12 pcs Taitong brand |
| Rim | 8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Suspension system | Common Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
| Electrical System | Chinese standard 24V lighting system |
| Brake system: | Dual line pneumatic brake, SAE hose and connector,optional ABS |
| Brake air chamber | 6 units T30/30 spring brake chambers |
| Emergency relay valve | Wabco relay valve |
| Traction/King Pin | 2" and 3.5" removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing Gear | Zhenhua brand 28ton |
| Accessories: | |
| Tool box | 1pcs, One crank and one shaft head wrench |
| Ramp | Heavy duty trailer ramp |
| Spare wheel carriers | 2 pcs |
| bumper | Rear bumper |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core electric cable protected by PVC conduit on main frame | |
| Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed |

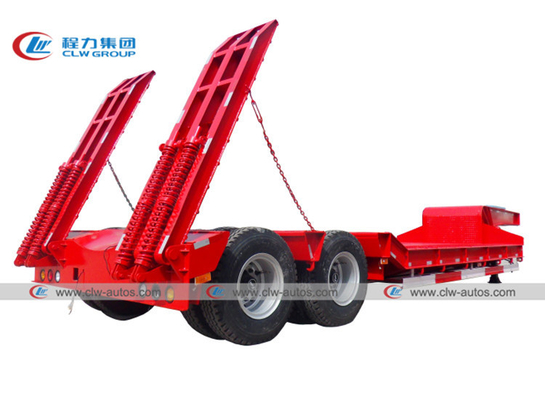

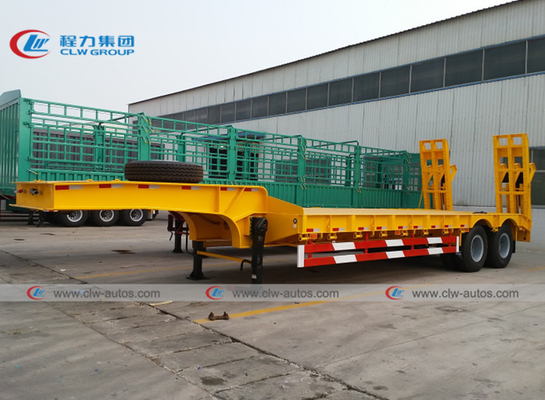

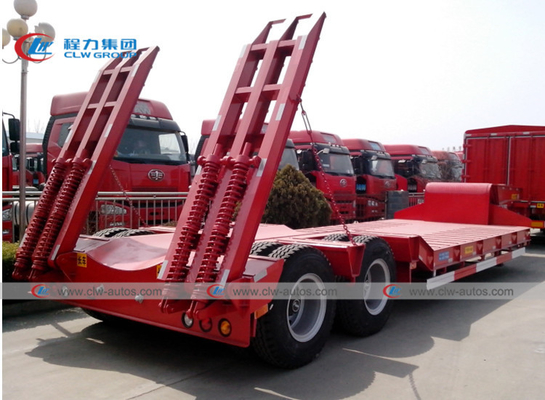

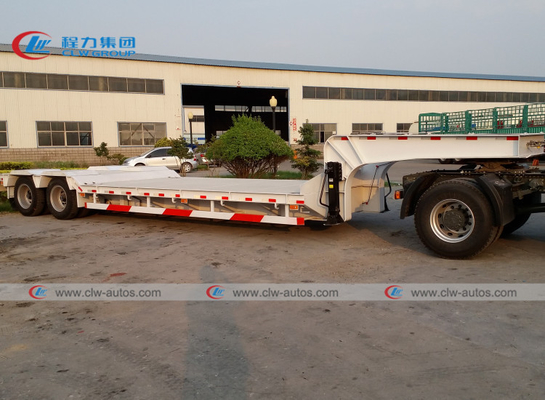

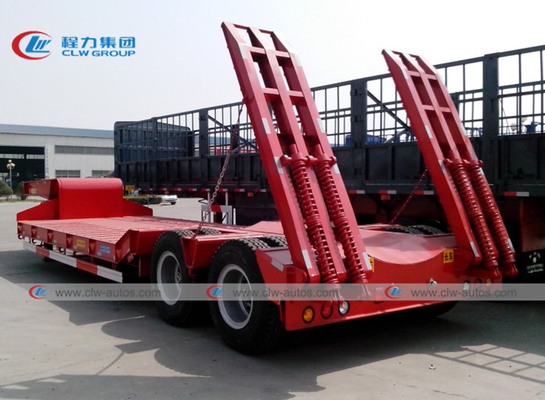

More pictures:
Packed for delivery:
