Product Details:
Payment & Shipping Terms:
|
| Axle: | FUWA, BPW, L1, Zhengyang China Famous Brand | Axle Loading: | 13tons, Or 16tons. 20Tons |
|---|---|---|---|
| Nos. Of Alxe: | 2 Axle, 3 Axle, 4 Axle, 5 Axle, 6 Axle | Suspension: | Germany Type Mechenical Suspension With Leaf Spring |
| Deck Length: | 13 Meters, Or Extendable | Landing Gear: | JOST Brand, Or Fuwa Brand |
| Loading Capacity: | 40tons, 50tons, 60 Tons, 80 Tons. 100Tons | Function: | Construction Machinery, Timber Log Transport |
| Product Name: | Lowbed, Low Bed , Low Loader, Lowboy Trailer, Low Boy Trailer | Load: | 50 60 80 100 Tons |
| Leaf Spring: | 10 Pieces, 12 Pieces, 13 Pieces | Other Equipment: | Hydraulic/Mechanical Rear Ladder |
| High Light: | Lowbed Semi Trailer 60Tons,3 Axle Lowboy Lowbed Semi Trailer |
||
Goods Description:
Our CLW Group, Chengli Special Automobile Co., Ltd. can provide high quality strong lowbed trailers maximize payload, and deliver strength and durability to meet the transport needs. And we serve and help transportation and logistic sector and their needs.
We adopt famous brand parts, like Wabco, German famous brand, Improve the system's reaction sensitivity and stability, More Safe.
Parameters for 3 axle/4 axle 60 Tons 80 Tons Low bed Lowboy Lowbed Semi Trailer for excavating machine Transport:
| Tare Weight | 10t |
| Loading Weight | 60t |
| Dimension(mm) | platform length:7620mm, height is 635mm, traction height:1270mm |
| Main Beam | The height of the beam is 405 mm, upper flange 20 mm,down flange is 20 mm,middle flange is 12 mm, Material is Q 345B Steel |
| Cross member | 12#C type or AB type |
| Side rail | 380# "I" type, and equipped with the flip small ladder. |
| Platform | Q 235, checkered plate, 5 mm. |
| Gooseneck | engine system mounted inside gooseneck (easy to operate and waterproof). engine 10 hp electric starter, 2GPM pump, 6" bore w/22" stroke cylinder. detatchable hydraulic gooseneck, pneumatically controlled. |
| Leaf Spring | 90*16-10 6/8 sets, Funiu or Taiyue or other china brand |
| Axle | 13T 3/4 pcs, BPW or FUWA or other china brand |
| Tyre &Wheel rim | tyre 255/70R22.5 *12pcs, wheel rim 8.25*22.5 *12pcs |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| King pin | 2" / 3.5" |
| Hole / lashing | 12 pcs per side,24pcs in total |
| Hook | 9pcs per side,18pcs in total |
| Landing legs | 28 T total Lifting capacity and 50 T static capacity,two speeds |
| Brake system | Brand: Weboco Type: Dual line braking system Brake Air chamber: 6 in total, T30/30*4 + T30*2 Air tank: 40L*2 unit ABS: none ABS: chooseable. |
| Electric system | 24V LED light waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |

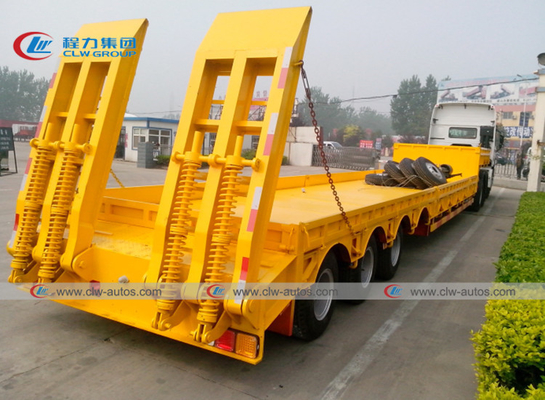

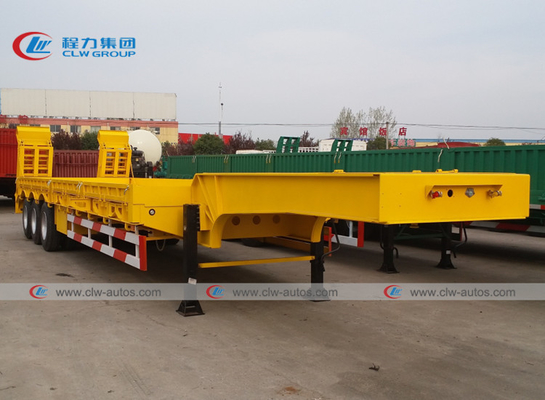

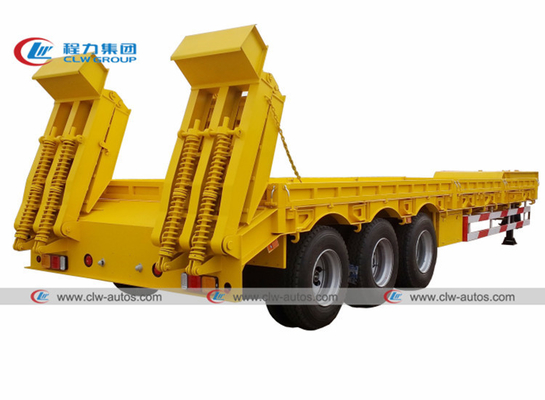

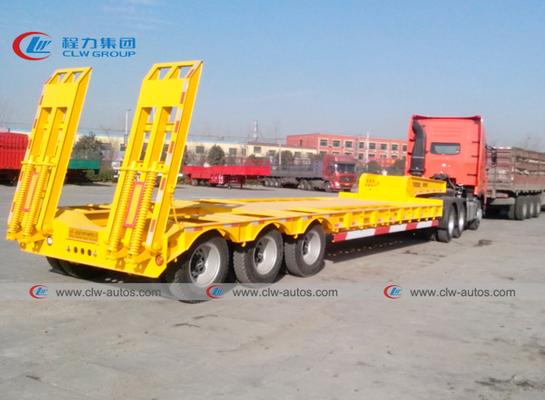

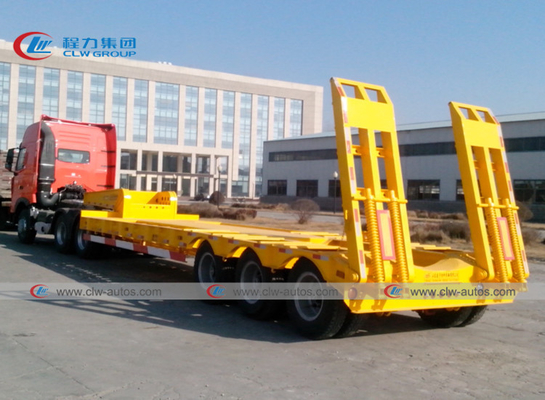

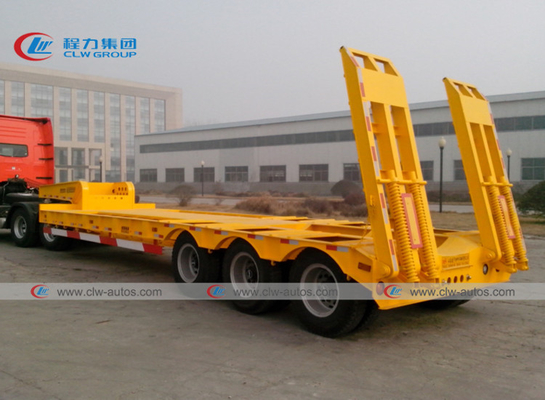

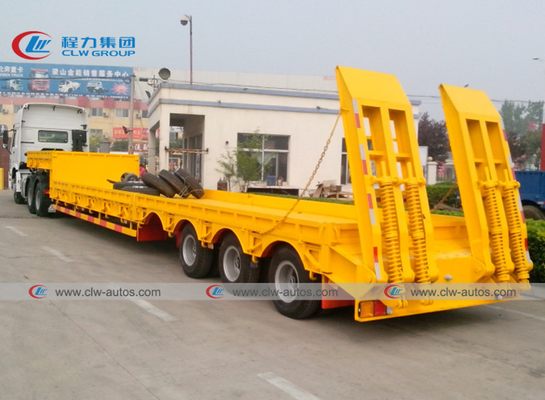

More pictures for Heavy Duty 3 Axle 60 Tons 80 Tons Low bed Lowboy Lowbed Semi Trailer for excavating machine Transport :
1. The series of low bed trailers have flat-plate, concave beam and exposed tire structures, and the longitudinal beams are straight or gooseneck. The frame is stepped and the longitudinal beam section is I-shaped. It has the characteristics of high rigidity and high strength.
2. The main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.
3. The electrical system of a lowbed trailer is composed of seven-core sockets, cables, gas lines, various lamps, etc. It is used for lighting, safety warning, and air supply for brakes. Generally, if you look at the regularity of electrical wiring, you basically know how the quality of this heavy transport trailer.
4. The support device of the semi-trailer is mainly used to support the low flatbed trailer when it is detached, and is composed of legs and connecting brackets.
5. The low bed trailer for sale protection device consists of side protection and rear protection to protect pedestrians and other vehicles.
6. Other accessories on the semi-trailer include toolboxes, spare tire racks, etc. There are also some small accessories such as tight ropes and rope hooks, which are very functional accessories, which need to be selected according to their own types of goods.
