HOWO 4X4 Off Road AWD 15000l Helicopter Aircraft Aviation Refueling Tank Truck For Jet A1 Filling

Large Image : HOWO 4X4 Off Road AWD 15000l Helicopter Aircraft Aviation Refueling Tank Truck For Jet A1 Filling

Product Details:

Place of Origin:	SUIZHOU, HUBEI, CHINA
Brand Name:	CLW
Certification:	ISO9001, CCC, BV, SGS
Model Number:	CLW20220613

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiated
Packaging Details:	Naked or waxed before shipment
Delivery Time:	30-35 days after receiving the deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units per month

Contact Now

Detailed Product Description

Tanker Material:	Stainless Steel, Aluminum Alloy	Drive Type:	4x4 AWD, Off Road For Bad Road Condition
Drive Model:	Left Hand Drive, Or Right Hand Drive, RHD	Tank Volume:	12000L, 15000L, 12CBM, 15CBM, 12M3， 15M3
Truck Brand:	Dongfeng /Sinotruk HOWO, Shacman, FAW, FOTON, Jac	Tuck Type:	Aviation Kerosene, Jet A1 Transport, Delivery And Refilling
Other Equipment:	Charging/discharging Valves. API Manhole	Compartment:	1
Dispenser:	With Dispensers ( 2 Fuel Filling Machine)	Product Name:	Helicopter Aircraft Aviation Rufueling/Refilling Filling Tank Truck
Type:	For Army, Military Using	Transmission Type:	Manual
Highlight:	HOWO 4X4 Aviation Refueling Tank Truck , Jet A1 Filling Refueling Tank Truck

HOWO 4X4 Off Road AWD 15000liters Helicopter Aircraft Aviation Refueling Tank Truck For Jet A1 Filling

Product Description

Competitive advantage fuel tanker truck series

1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Top quality Jets Refueling Truck with competitive price.

Product Specification

Condition	New condition/Left hand drive
Drive Type	4x4, Full Wheel Drive, All Wheel Drive, AWD. Off Road Type For Army, Military Using
Chassis	Brand		SINOTRUK
	Model		HOWO
	Curb weight(kg)(Whole Truck)		9000 kg
	Loading weight(kg)		12000 kg
	Wheelbase(mm)		4600 mm
	Front/Rear axle loading weight(kg)		7000/16000 kg
	Dimensions(mm)(Whole Truck)		917524803290 mm
	Front/Rear overhang(mm)		1500/2675 mm
	Approach/Departure angle(°)		20/14°
	Max. driving speed(km/h)		80 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheel. Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	10pcs with one spare tire
		Specifications	12.00R20/12R22.5
	Fuel tank volume(L)		400 L
Transmission	Manual type, HW19710, 10 Forwards and 2 reverses
Steering	Power steering, hydraulic steering with power assistance
Cabin	It can accommodate three people, With Air conditioner
Engine	Brand		SINOTRUK
	Model		WD615.62
	Fuel type		Diesel
	Displacement(ml)		9726 ml
	Power(kw)		196 kw
	Horsepower(HP)		266 HP
	Cylinder number		6 pcs
	Rated speed(rpm)		2500 rpm
	Emission standard		Euro 2
Upper & Equipment
Fuel tank	Capacity(cbm)		15cbm, 15000Liters, 15M3, 15 Cubic Meters
	Tank material		Aluminium alloy
	Compartment quantity(pcs)		1 pcs
	Filling medium		Aviation kerosene, Jet A1
	Piping system		Stainless steel
	Manhole	Quantity(pcs)	2 pcs
		Size(mm)	500 mm
Filter	International brand filter
Remarks	Pls directly contact with us for more technical parameters

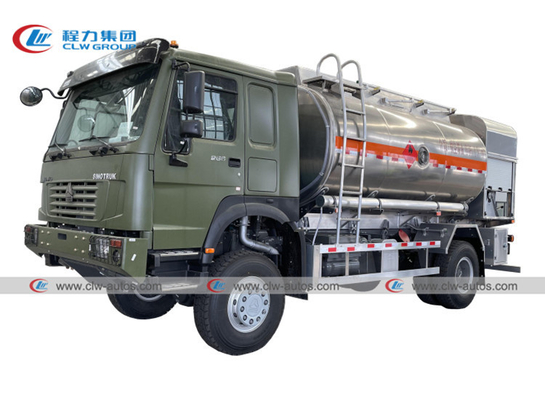

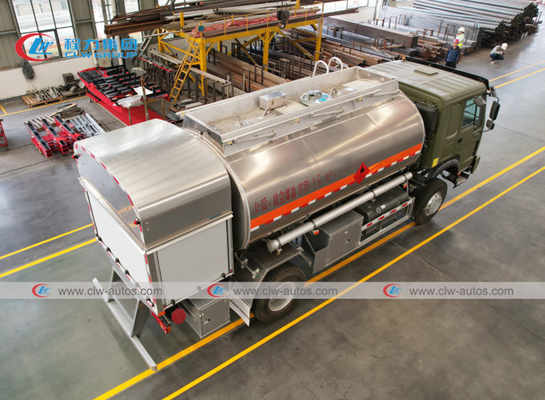

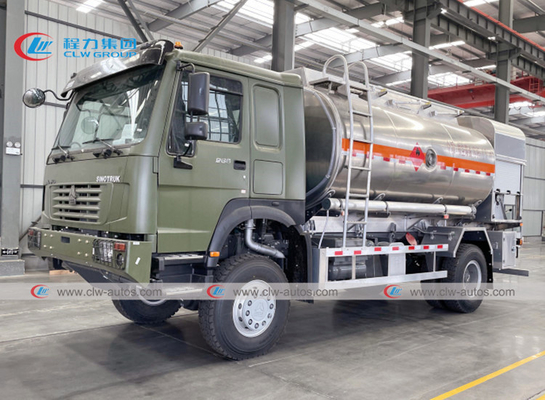

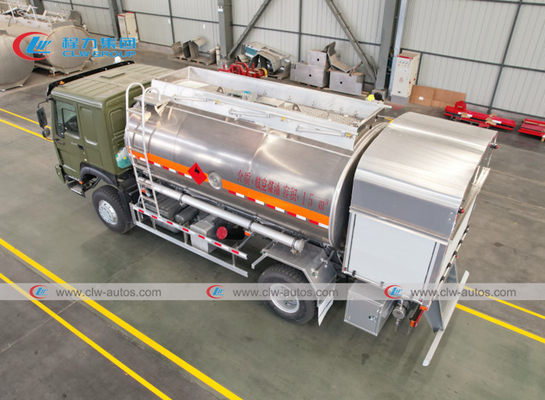

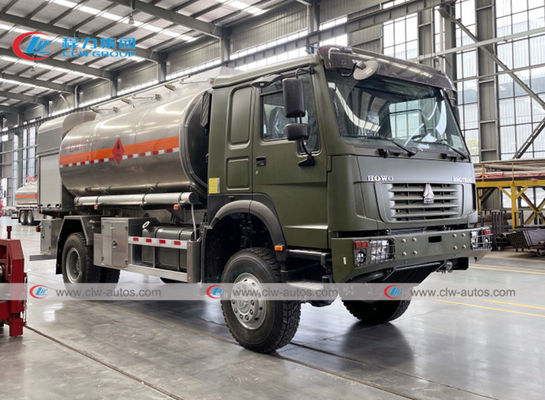

More pictures for HOWO 4X4 Off Road AWD 15000liters Helicopter Aircraft Aviation Refueling Tank Truck for

Jet A1/Aviation kerosene filling.

HOWO 4X4 Off Road AWD 15000l Helicopter Aircraft Aviation Refueling Tank Truck For Jet A1 Filling 0

HOWO 4X4 Off Road AWD 15000l Helicopter Aircraft Aviation Refueling Tank Truck For Jet A1 Filling 2

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation

and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products

arriving at destination safely.
