Product Details:
Payment & Shipping Terms:
|
| Tipper Material: | Q345B, T700, HARDOX | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons, 20Tons | Tipper Box: | 24m3, 30M3, 32M3, 35M3 |
| Loading Capacity: | 50tons, 60tons, 50T, 60T, 40TONS | Front Axle: | 40 Tons, Or 50 Tons, Liftable |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Tipper Body: | U-shape, Or Square Shape |
| Side Thickness: | 6mm | Bottom Thickness: | 8mm |
| Axle: | FUWA, Optional, BPW/FUWA/Huajing Brand, FUWA Or MAOWO | ||
| High Light: | 30CBM Side Lifting Rear Tipping Trailer,Dump Semi Trailer 40ton |
||
Product Description:
Purpose: It used for transporting stone, soil, sand, steel material and different kinds of cargo.
Main parts: Suspension, Tire and axles.
Axle: Most of our customer all choose BPW or FUWA brand axle.
Tire: Double tire or Single tire for optional.
Landing leg: JOST or FUWA brand.
Customized service: All products can be produced as per customer's request if there any specifized requirements.
Advantage:
1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacit, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam . The lattice structure of the side door makes the side door more solid
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.
Specification
| Overall dimensions | 11200*2550*3500mm |
| Tare weight | 14300kg |
| Payload | 60000kg |
| Wheelbase | 6120+1320+1320mm |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 16mm,width140mm;Middle Flange 12mm;bottom flange18mm,width hight 500mm |
| Floor | 6mm |
| Side wall | 4mm height 2000mm |
| Cylinder | HYVA brand |
| Axle | 4 axle FUWA brand 16T |
| Suspension | Mechanical suspension |
| Leaf spring |
HYVA hydraulic lifting system, model:FC214-5-09030
|
| Landing gear | 28ton, double speed operation |
| Thickness | bottom:8mm, side:6mm |
| Traction Pin | Φ90MM or 50MM |
| Tire | 16R22.5 triangle brand |
| Wheel rim | 9.0-22.5 |
| Kingpin | 2" or 3.5" bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | 4S/2M |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | 2 spare tire carrier, one rocker handle,one shaft wrench |

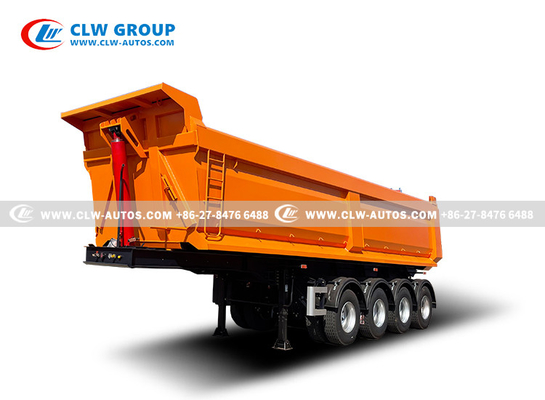

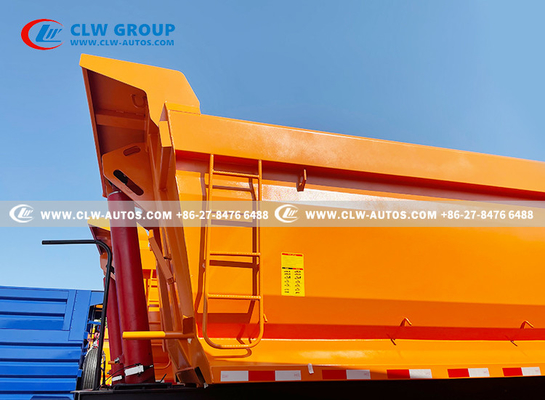

1. Hydraulic Lift and Box Climbing Ladders

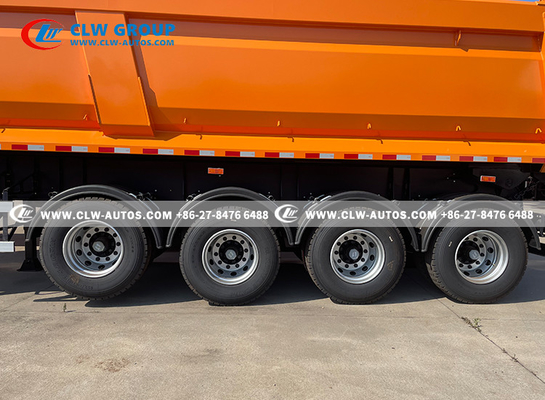

2. 4 axle with 16 pieces tires
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Our Service:
1. Professional design model of chassis trailer for customers' special requirements.
2. Welcome to visit our factory and we will pick you up at airport!
3. Strict Quality Control for the chassis trailer.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solveway for you.
