4X4 All Wheel Drive 10cbm 10000liters Refuelling Oil Tank Truck Aircraft Aiviation

Large Image : 4X4 All Wheel Drive 10cbm 10000liters Refuelling Oil Tank Truck Aircraft Aiviation

Product Details:

Place of Origin:	SUIZHOU, HUBEI, CHINA
Brand Name:	CLW
Certification:	ISO9001, CCC, BV, SGS
Model Number:	CLW528EWI

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiated
Packaging Details:	Naked or waxed before shipment
Delivery Time:	30-35 days after receiving the deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units per month

Contact Now

Detailed Product Description

Tanker Material:	Stainless Steel, Aluminum Alloy	Drive Type:	4x4 , Off Road For Bad Road Condition
Drive Model:	Left Hand Drive	Tank Volume:	15000L, 15cbm, 15000liters,12m3
Truck Brand:	Sinotruk HOWO	Tuck Type:	Aviation Kerosene, Jet A1 Transport, Delivery And Refilling
Other Equipment:	Charging/discharging Valves. API Manhole	Compartment:	1
Dispenser:	With Dispensers ( 2 Fuel Filling Machine)	Product Name:	Helicopter Aircraft Aviation Rufueling/Refilling Filling Tank Truck
Type:	For Army, Military Using	Transmission Type:	Manual
Highlight:	10000liters Refuelling Oil Tank Truck , 10cbm Refuelling Oil Tank Truck , Aircraft Aiviation Fuel Tank Truck

4X4 All-Wheel Drive 10cbm 10000liters Fuel Tanker Refuelling Oil Tank Truck Aircraft Aiviation Fuel Tank Truck

Product description:

Howo 4X4 off load left hand driving
WEICHAI diesel engine with 266hp
Front/rear axle loading: HF7/ ST16
10-Forward & 2-Reverse gear box single H manual operation type
Q235B carbon steel; Ellipse tank shape
10cbm tank volume with 5mm thickness

Product advantages:

4X4 four-wheel drive fuel truck adopts world-class automotive technology, novel design and unique style
The cab is comfortable to ride, has a wide field of vision, is well sealed and has complete functions;
The best engine power matching, high passability, high reliability chassis, flexible maneuverability,
It is used for cargo transportation in roadless areas, suitable for a variety of complex road conditions,like deserts, floating soil, Gobi, gravel, mud, mountains, rugged, ice and snow.
Temperature resistance ±45℃
The use of special tires for desert off-road makes the vehicle even more powerful and invincible. (Optional by model)

Product specification
Model		Refueling tank truck	Tank volume	10,000L /10m3
Overall Dimension(LxWxH)		820024503200mm	Driving type	4x4 off road
Chassis parameters
Chassis		HOWO
Cabin		One and a half row, allowable for 3 passengers, with a bed, and Air conditioner
Engine	Model	WD615.62
	Rated power	266hp
	Displacement	9.726L
	Type	6 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection
	Emission	Euro 2, Diesel
	Manufacturer	SINOTRUK
Tire	Size	295/80R22.5, tubeless tire
	Number	6 tires plus one spare
Front / Rear axle		HF7/ ST16	Transmissions	HW15710, 10-Forward & 2-Reverse
Fuel tank		400L, steel	Wheel Base	4300mm
Tanker parameters
Tank dimensions		380015701100mm	Tank volume	10,000L
Shape of the tanker		Ellipse	Tank thickness	5mm body/ end plate 6mm
Material of tanker		Q235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion
Transport medium		Diesel oil
Manhole		GLME, Euro standard, including pressure relief valve
Bottom Valve		GLME, Euro standard
Discharge Valve		Aluminium Alloy Ball Valve type (stainless steel ball valve is optional)
Emergency Cutoff Device		Equipped
Oil Pump		Weilong or Yifeng (Chinese famous brand )
Flow Meter		High-end flow meter
Filling Gun		Rotary filling gun
Standard configuration		tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included
Optional Configuration		pneumatic valve, AIP valve, overflow sensor system, vapour recovery system
Color & Logo		Customized

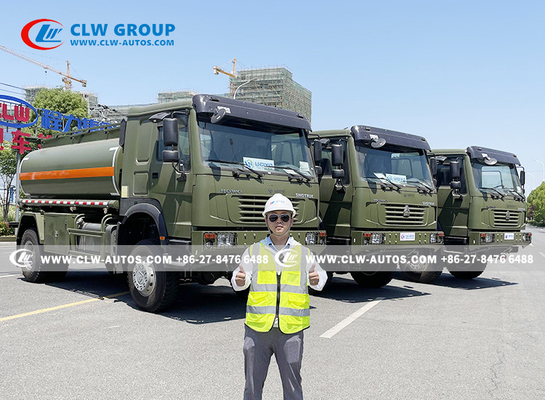

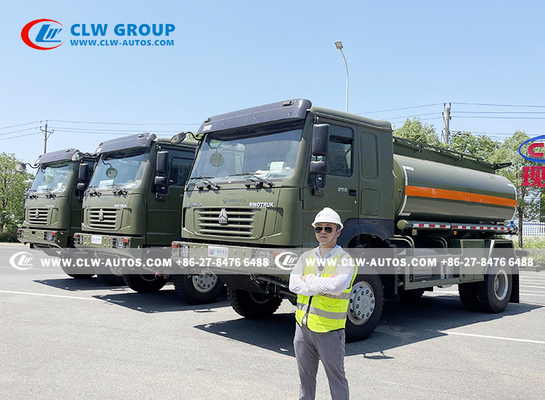

1.Trucks photos in Factory

4X4 All Wheel Drive 10cbm 10000liters Refuelling Oil Tank Truck Aircraft Aiviation 0

2.Toolbox filling room

3. Unloading pipes on both sides of the tank

Our advantages:

Certificate: ASME, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
