Product Details:
Payment & Shipping Terms:
|
| Tipper Material: | Q345B, T700, HARDOX, Nm450 Wear Resistant Steel | Axle: | FUWA, BPW, L1, Zhengyang, CLW Brand |
|---|---|---|---|
| Axle Capacity: | 16ton | Spare Tire Rack: | Yes For Two Spare Tire Design |
| Tire Specifications: | 80r22.5, With One Spare Tire | Front Axle: | 13 Tons, Or 16 Tons, Liftable |
| Suspension: | Leaf Spring Or Air Bag | Tipper Body: | U-shape, Or Square Shape |
| Cylinder Brand: | Hyva Brand Hydraulic System | Tipper Box: | Square Shape. U-Shape. U-type |
| High Light: | Rear Tipping Dump Truck Trailer 50t,Jost 4 Axle Dump Truck Trailer,60tons End Tipper Trailer |
||
Product descriptions:
1. 11000X2500X3700mm overall dimensions
2. HYVA brand cylinder
3. 4 axle L1 brand
4. Equipped with Jost landing legs
5. Q345 plate Q235 box carbon steel material
6. Equipped with LED light
Product advantages:
1. It used for transporting stone, soil, sand, steel material and different kinds of cargo.
2. 24hours after sales service
3. It is optional for BPW, FUWA, L1 brand axle.
4. It's equipped with JOST landing leg with good loading capacity.
5. All products can be produced as per customer's request if there any specifized requirements.
Product descriptions:
| carbon steel U type dump Semi trailer | |||
| Loading capacity | 50T | Volume | 45cbm |
| Box inner size | 9200X2400X2000 | Outer Size | 10000x2500x3800mm |
| Chassis (I beam) | Top flange plate | Material and thickness | Q345B 16mm |
| Bottom flange plate | Material and thickness | Q345B 18mm | |
Middle flange plate |
Material | Q345 | |
| Thickness | 10mm | ||
| Height | 530mm | ||
Box |
Thickness | 6mm | |
| Height | 2000mm | ||
| Material | Q235 | ||
Floor |
Material | Q235 | |
| Thickness | 8 mm | ||
| Floor type | Plate | ||
Running mechanism Running mechanism |
Cylinder | HYVA 214-5-7130 | |
Axle |
Brand | L1 | |
| Type | 16t | ||
| Number | 4pcs | ||
| Rim | Type | 8.5 | |
| Number | 16pcs | ||
Tire |
Brand | triangle brand | |
| Type | 80R22.5 | ||
| Number | 16pcs | ||
| Suspension | Mechanical suspension | ||
Spring leaf |
Leaf width | 90mm | |
| Leaf thickness | 16mm | ||
| Layer/set | 10 Layer | ||
| King pin | Type | Bolts type | |
| Diameter | 2 inch | ||
Brake system |
Air tank | 45L air tanks | |
| Brake chamber | 4 double spring brake chamber | ||
| ABS | NO | ||
Landing gear |
Brand | JOST | |
| Type | A300 two speed | ||
Accessories |
Spare tire carrier | One | |
| Light | LED light | ||
| Voltage | 24v | ||
| Receptacle | 7 ways(7wire harness)and quick change type | ||
| Tool box | One piece | ||
| Painting | Polyurethane paint&anti-rust primer&sand blasting | ||
| Tools for trailer | Head wrench ;spare wheel crank ; | ||

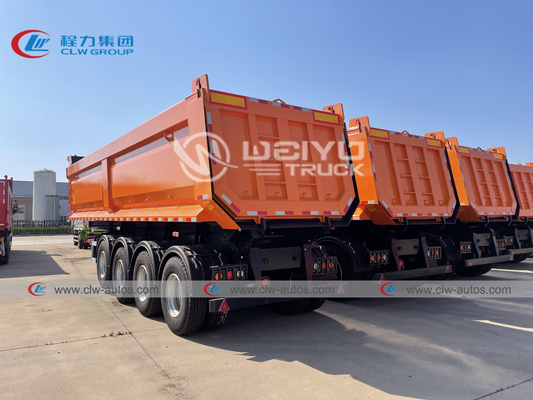

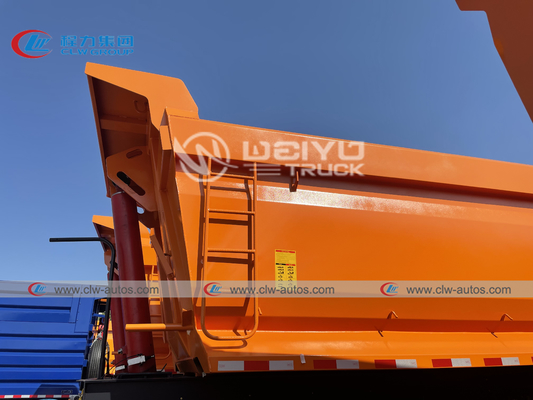

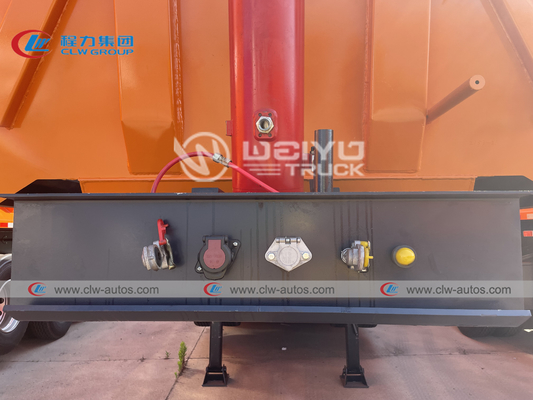

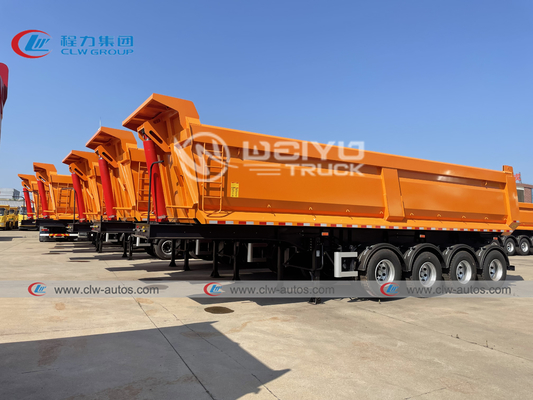

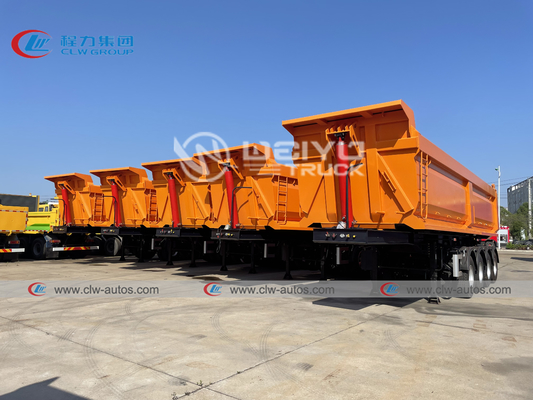

Detailed photos:
Our advantages:
