Product Details:
Payment & Shipping Terms:
|
| Axle: | CTC 15Tons Axle, 8 Pieces China Famous Brand | Axle Loading: | 15tons, Or 16tons. 20Tons |
|---|---|---|---|
| Nos. Of Alxe: | 4 Axles, 6 Axles, 8 Axles, 10 Axles, | Suspension: | Heavy Rigid Type Mechenical Suspension With Leaf Spring |
| Deck Length: | 6 Meters, 7 Meters 8 Meters Platform Or Extendable | Landing Gear: | JOST Brand, Or Fuwa Brand |
| Loading Capacity: | 80 Tons. 100Tons 120T, 140tons, 150 Tons, 180tons, 200Tons | Function: | Construction Machinery, Excavator Transport |
| Product Name: | Lowbed, Low Bed , Low Loader, Lowboy Trailer, Low Boy Trailer | Load: | 60-80 Tons, 80-120 Tons, 120-160 Tons, 160-200 Tons |
| Tire Nos.: | 16 Pieces, 24 Pieces, 32 Pieces, Or 40 Pieces | Other Equipment: | Hydraulic/Mechanical Rear Ladder |
| High Light: | 160T Low Bed Semi Trailer,Gooseneck Low Bed Semi Trailer |
||
Goods Description:
Our CLW Group, Chengli Special Automobile Co., Ltd. can provide high quality strong lowbed trailers maximize payload, and deliver strength and durability to meet the transport needs. And we serve and help transportation and logistic sector and their needs.
Features - 120-150 Tons 4 lines 8 axles Lowbed Trailer.
-Suitable for transitional transportation of roads, railways, waterways and ports, bulk cargo transportation of mineral resources and transportation of special materials.
-CLW Group adopts advanced manufacturing technology, automatic submerged arc welding of vertical beams, and sandblasting of the overall frame to effectively eliminate welding stress, using advanced fixtures and technology throughout the production process to ensure the formation and assembly accuracy of the work Pieces.

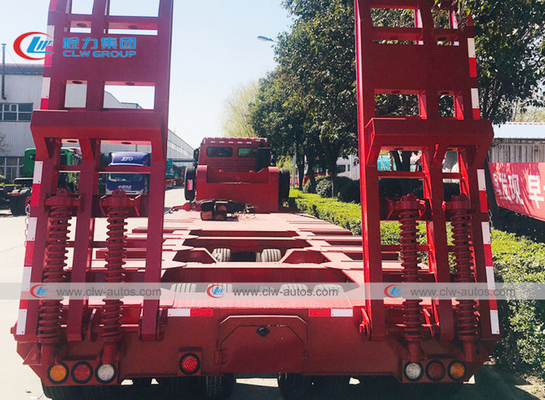

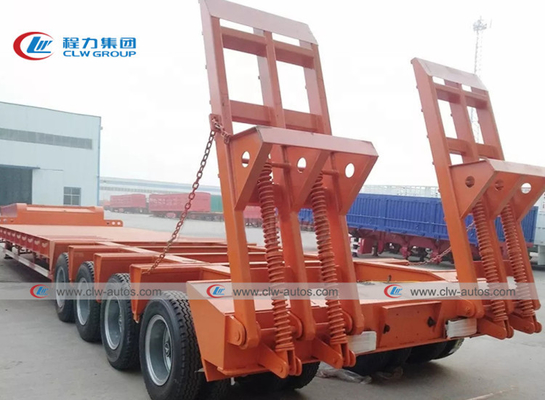

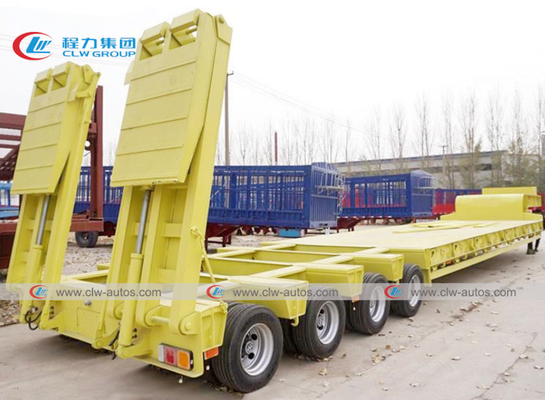

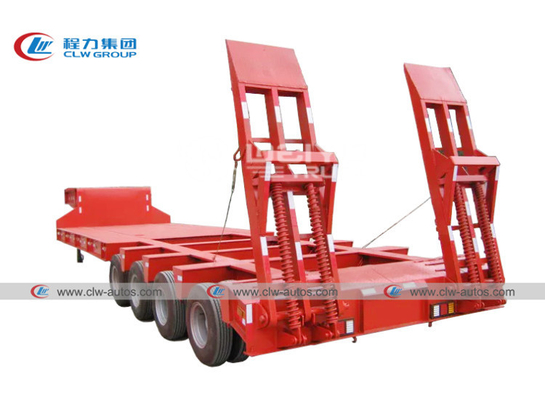

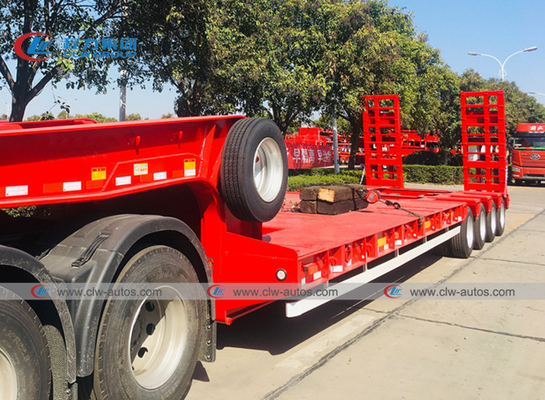

More pictures for Heavy Duty Low Loader Lowboy Lowbed Semi Trailer for Excavators and Large Equipment
Transport:
:
Technical Drawing of 4 Lines 8 Axles 150Tons Lowbed Semi Trailer:
We can offer and disign different types of Lowbe semi trailers:
Parameters for 4 Lines 8 Axles Gooseneck 150 tons 160T Hydraulic Extendable Lowboy Low Loader Lowbed
Low Bed Semi Trailer for Excavators and Large Equipment Transport:
| Rated Load | 100T-150T |
| Tare Weight | 18000 kg |
| Wheel Base | 12880+1220, 12380+1220(mm) |
| TyreSpecifications | 8.25R20 |
| No. Of the Tyres | 32 |
| Axle Brand | FUWA (BPW optional) |
| No. Of the Axles | 4 lines with 8 axles |
| Axle-load | 25000 kg per axle row |
| King Pin | 50#/90# |
| Landing Leg | 28ton |
| Suspension | rigid suspension |
| Departure Angle | 20 |
| Front/Rear Overhang | 1250 mm |
| Outside Dimensions (LxWxH) | 16000, 15500X3000, 2800X3150, 1710 (mm) |
| Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded |
| Brake System | Dual line braking system/ABS |
| Electrical | 24V 7 ways(7 wire harness) |
Usage |
Is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products. |
| Other Specifications | The cargo' s carrying platform is 910mm high from the ground, and the overall height is 1710mm without the ladders. The height of rear guard settings is 420mm from the ground. |
Other Descriptions |
The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing. |
Delivery Pictures for Super Heavy Duty Lowbed Semitrailer:
Application Pictures for Super Heavy Duty 4 Lines 8 Axles 150T Lowbed Semitrailer:
To Make your transportation more economical, CLW group makes your transportation more
economical by manufacturing and providing various types of truck trailers, trailer parts and
complete system solutions.
