Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Stainless Steel, Aluminum Alloy | Drive Type: | 4x2 Rhd For Different Road Condition |
|---|---|---|---|
| Drive Model: | Right Hand Drive, Or RHD | Tank Volume: | 2000L, 2CBM, 2M3, 2000liter |
| Truck Brand: | Dongfeng /Sinotruk HOWO, Shacman, FAW, FOTON, Jac | Tuck Type: | Aviation Kerosene, Jet A1 Transport, Delivery And Refilling |
| Other Equipment: | Charging/discharging Valves. API Manhole | Dispenser: | With Dispensers ( 2 Fuel Filling Machine) |
| Product Name: | Helicopter Aircraft Aviation Rufueling/Refilling Filling Tank Truck | Type: | For Army, Military Using |
| Transmission Type: | Manual | ||
| High Light: | Rhd Diesel Petrol Refueling Truck,Mini Foton Petrol Refueling Truck,Oil Dispenser Truck 2cbm |
||
1. Asia: Nepal, Pakistan, India, Indonesia etc.
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.
3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.
4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.
Product advantages:
1. Foton chassis with stable, reliable,high quality performance.
2. High pressure gas leakage test to ensure truck's safety.
3. High quality carbon steel material with anti-corrosion
4. Tank body adopts advanced welding technology
5. The tank's surface is painted with sand blasting,derusting treartment,spraying and cleaning technology.
6. We using high quality and imported accessories like pump,carburetor etc.
Product Specification
| Product specification | ||||
| Model | Foton refueling truck | Tank volume | 2000L /2m3 | |
| Overall Dimension(LxWxH) | 5400*1882*2260mm | Driving type | 4X2 RHD | |
| Chassis parameters | ||||
| Chassis | FOTON | |||
| Cabin | single row, allowable for 2 passengers, with Air conditioner | |||
| Engine | Model | ISF2.8s3129T | ||
| Rated power | 130hp | |||
| Displacement | 2.726L | |||
| Type | 4 cylinders in-line, turbo-charged intercooling, direct injection | |||
| Emission | Euro 3, Diesel | |||
| Manufacturer | Cummins | |||
| Tire | Size | 215/75 R17.5, tubeless tire | ||
| Number | 6 tires plus one spare | |||
| Front / Rear axle | 2.4t/3.5t | Rear axle ratio | 4.875 | |
| Fuel tank | 80L, steel | Wheel Base | 2800mm | |
| Tanker parameters | ||||
| Tank volume | 2000L | Tank material | Carbon steel | |
| Shape of the tanker | Ellipse | Tank thickness | 4mm | |
| Tanker outplate | epoxy paint 3 layer inner surface for anti-corrosion | |||
| Transport medium | Diesel oil | |||
| Manhole | GLME, Euro standard, including pressure relief valve | |||
| Bottom Valve | GLME, Euro standard | |||
| Discharge Valve | Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) | |||
| Emergency Cutoff Device | Equipped | |||
| Oil Pump | Weilong or Yifeng (Chinese famous brand ) | |||
| Flow Meter | High-end flow meter | |||
| Filling Gun | Rotary filling gun | |||
| Standard configuration | tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included | |||
| Optional Configuration | pneumatic valve, AIP valve, overflow sensor system, vapour recovery system | |||
| Color & Logo | Customized | |||

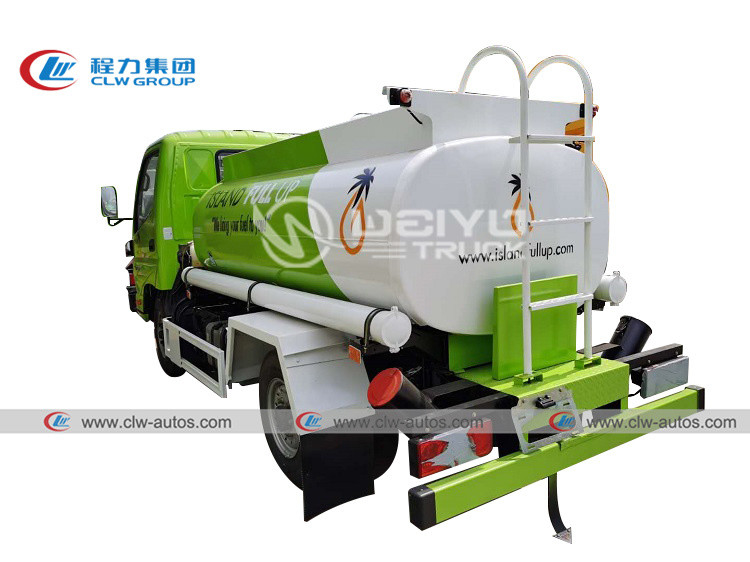

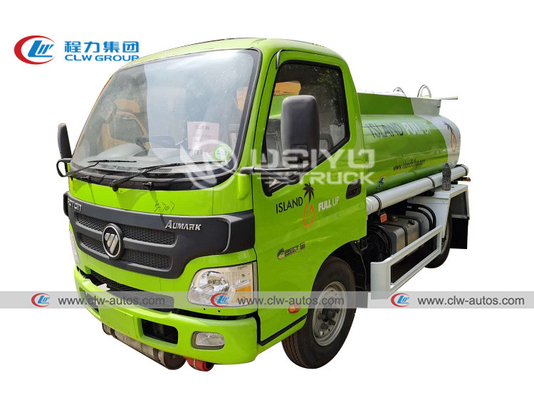

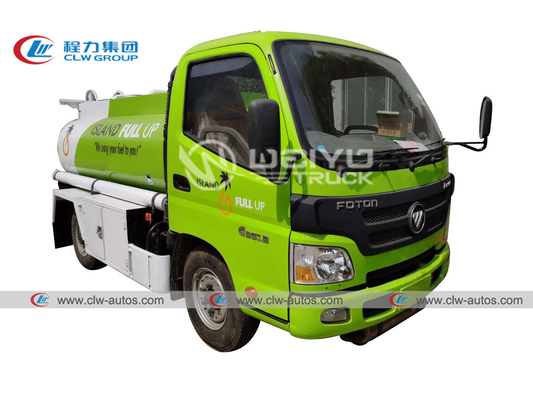

Detailed photos:
