Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Stainless Steel, Aluminum Alloy | Drive Type: | 4x2 Left Hand Driving |
|---|---|---|---|
| Cabin: | Single Row Cabin | Tank Volume: | 5000L, 5000liter, 5cbm, 5m3 |
| Truck Brand: | Dongfeng /Sinotruk HOWO, Shacman, FAW, FOTON, Jac | Tuck Type: | Aviation Kerosene, Jet A1 Transport, Delivery And Refilling |
| Other Equipment: | Charging/discharging Valves. API Manhole | Compartment: | According To Customer Requirements |
| Flowmeter: | Yes | Product Name: | Oil Fuel Rufueling/Refilling Filling Tanker Truck |
| Engine: | 110hp | Transmission Type: | Manual |
| High Light: | 5000L HOWO Fuel Tanker Truck,5cbm HOWO Fuel Tanker Truck |
||
Product description:
1. Howo 4X2 left hand driving
2. YUNNEI diesel engine with 116hp
3. Axle loading: front axle 2t rear axle 3.5t
4. 5-Forward & 1-Reverse WLY gear box
5. Q235B carbon steel; Ellipse tank shape
6. 5cbm tank volume with 4mm thickness
1. city, suburb, mining plants, wharf, airport, bus station, country road,
2. many other places which is without filling station,which can be used as mobile filling station.
Bending and punching--Frame assembling--Electroplate--Axle installation--Engine cover cutting--Engine testing-- Cab assembling--Light detection--Truck man testing
Product Specification
| TECHNICAL SPECIFICATION | ||||
| Model | SINOTRUK | Tank volume | 5000L /5m3 | |
| Overall Dimension(mm): | 5990*2000*2380 | Driving type | 4x2 Left hand driving | |
| Chassis parameters | ||||
| Chassis | HOWO | |||
| Cabin | Single row cabin, allowable for 2 passengers with air conditioner | |||
| Engine | Model | YN4100QBZL | ||
| Rated power | 116hp | |||
| Displacement | 3.298L | |||
| Type | 4 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection | |||
| Emission | Euro 3, Diesel | |||
| Manufacturer | SINOTRUK | |||
| Tire | Size | 7.00R16, steel wire tire | ||
| Number | 6 tire with one spare | |||
| Front / Rear axle | 2000/3500 | Transmissions | WLY535,5-Forward & 1-Reverse | |
| Fuel tank | 400L, steel | Wheel Base | 3360mm | |
| Tanker parameters | ||||
| Tank dimensions | 3400*1600*1100mm | Tank volume | 5,000L | |
| Shape of the tanker | Ellipse | Tank thickness | 4mm body/ end plate 4mm | |
| Material of tanker | Q235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion | |||
| Transport medium | Diesel oil, gasoline or others | |||
| Manhole | GLME, Euro standard, including pressure relief valve | |||
| Bottom Valve | GLME, Euro standard | |||
| Discharge Valve | Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) | |||
| Emergency Cutoff Device | Equipped | |||
| Oil Pump | Weilong or Yifeng (Chinese famous brand ) | |||
| Flow Meter | High-end flow meter | |||
| Filling Gun | Rotary filling gun | |||
| Standard configuration | tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included | |||
| Optional Configuration | pneumatic valve, AIP valve, overflow sensor system, vapour recovery system | |||
| Color & Logo | Customized | |||

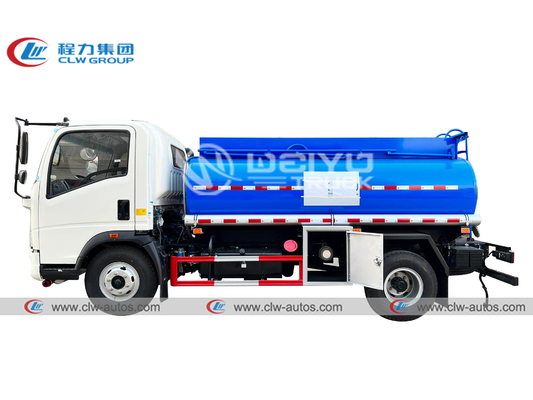

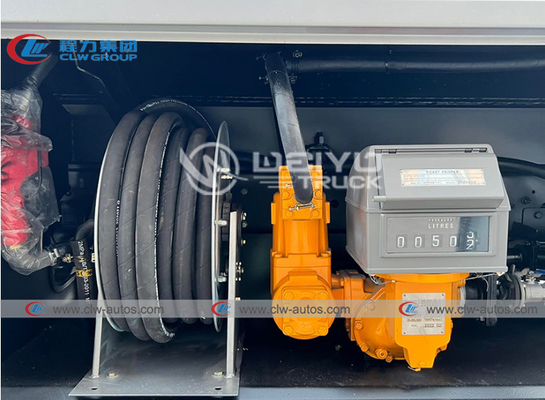

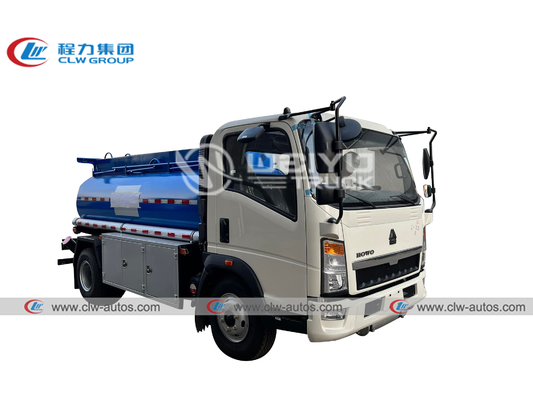

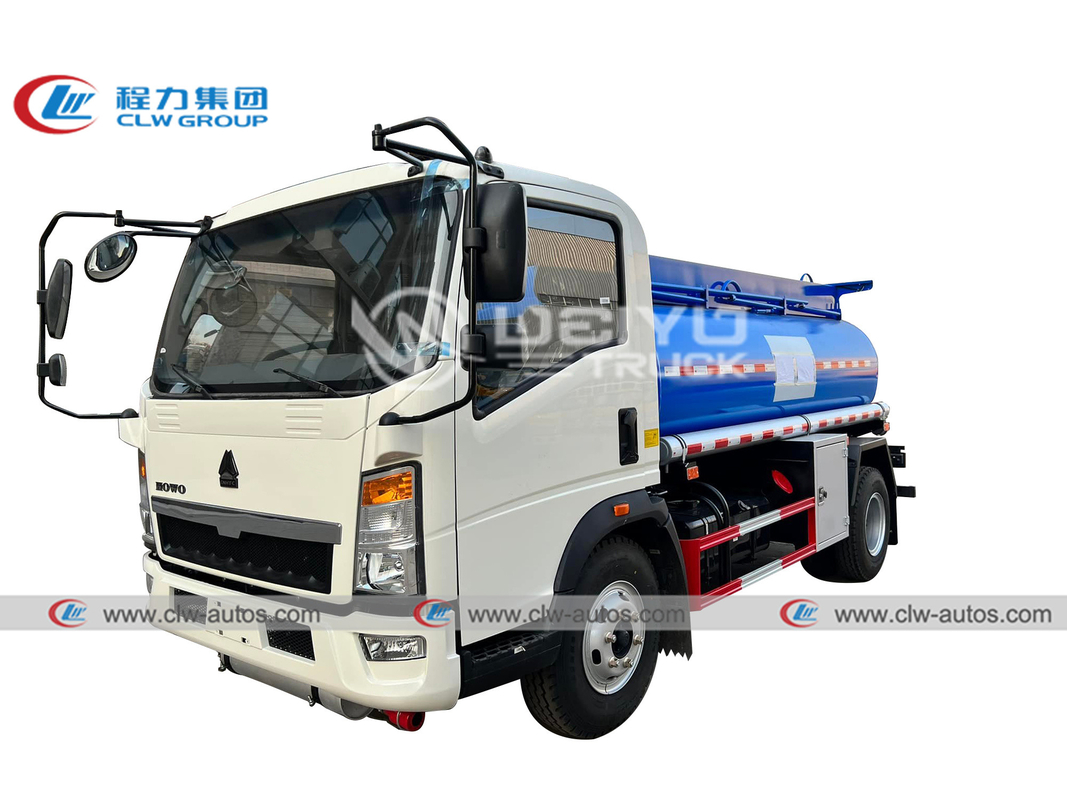

Detailed photos:
fuel tanker truck;fuel boswer truck; oil transport truck; oil truck tanker; light fuel tank truck; truck tank fuel; petrol tanker; petrol fuel tank; diesel dispensing truck; oil delivery truck; Mobile Fuel Truck; oil loading truck; oil refuelling truck; oil transport truck; oil truck tanker; light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, fuel bowser, diesel dispensing truck,) is mainly used o storage and transport oil; diesel, gasoline, kerosene, Stainless steel fuel bowser etc.
