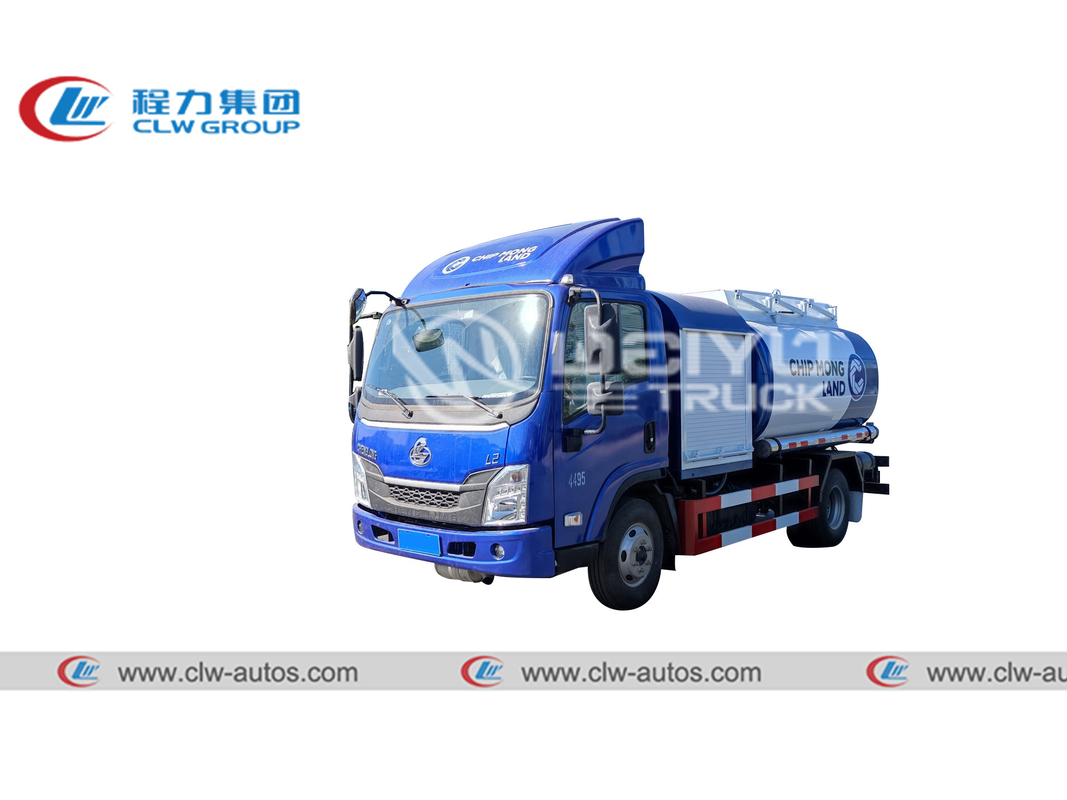

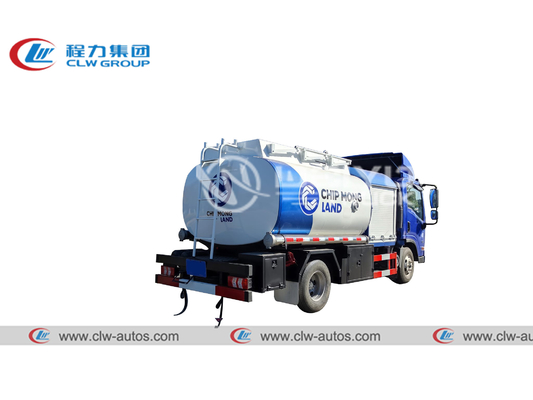

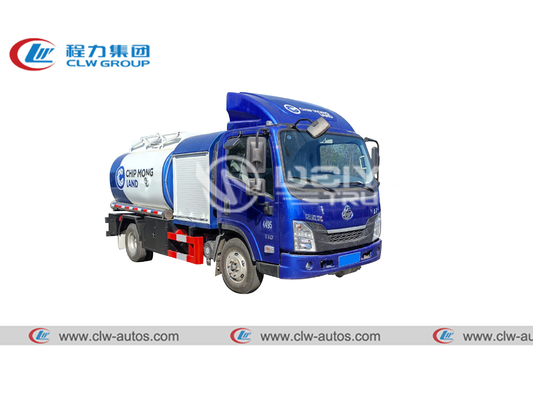

Aluminium Alloy Aircraft Fuel Tanker Truck 5000liter Fuel Dispensing Truck 5cbm Crude Oil Tanker Truck
Advantages of aircraft refueling truck with aluminum alloy tank:
1. Light weight, large volume and high economic benefition.
2. Corrosion resistance, high cleanliness, no pollution to oil .
3. Long service using life and high recycling value.
4. Good electrical conductivity and elongation, high safety.
Fratures:
1. European standard tank mouth: integrated with built-in breathing emergency energy discharge
2. Aluminum alloy folding guardrail, sturdy and beautiful, easy to use
3. High-quality integrated automatic welding tank
4. Well-known tanker brand, quality assurance
Specification of 5000liters oil tanker truck
| Tanker parameters |
| Tank dimensions |
3400*1600*1100mm |
Tank volume |
5,000L,5000liter,5cbm |
| Shape of the tanker |
Ellipse |
Tank thickness |
4mm body/ end plate 4mm |
| Material of tanker |
Aluminium Alloy, epoxy paint 3 layer inner surface for anti-corrosion |
| Transport medium |
Diesel oil, gasoline or others |
| Manhole |
GLME, Euro standard, including pressure relief valve |
| Bottom Valve |
GLME, Euro standard |
| Discharge Valve |
Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) |
| Emergency Cutoff Device |
Equipped |
| Oil Pump |
Weilong or Yifeng (Chinese famous brand ) |
| Flow Meter |
High-end flow meter |
| Filling Gun |
Rotary filling gun |
| Standard configuration |
tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included |
| Optional Configuration |
pneumatic valve, AIP valve, overflow sensor system, vapour recovery system |
| Color & Logo |
Customized |
The tanks and pipes of the aircraft refueling truck are all made of aluminum alloy:
1. The fuel tank is equipped with high-performance filter separator, which can filter impurities and water to ensure the cleanliness of the oil.
2. To ensure safety during refueling, it is equipped with engine emergency stop device, static elimination device, explosion-proof device, lighting device, fire extinguisher, etc.
3. It is quipped with perfect safety interlocking device to prevent wrong operation and ensure aircraft and oil depot facilities.
4. It is equipped with high-precision, large-flow meter, which can monitor during the refueling process.
5. The aircraft refueling truck meets the requirements of environmental protection with safe, beautiful, user-friendly design
1. The tank body: is made of 5083 aluminum-magnesium alloy , which is light weight, large volume, corrosion-resistant and pollution-free, to ensure oil quality.
2. Refueling pump: aluminum alloy centrifugal pump, reel refueling flow 80 or 300L/min, pipeline oil pumping flow 700L/min, working pressure 0.25MPa.
3. flow meter: 0.2 grade accuracy, diameter 50 waist wheel flow meter.
4. The filter separator: the rated flow is 400L/min, the rated working pressure is 1.0MPa, and the maximum allowable pressure difference is 0.15MPa, which meets the requirements of the third edition of API 1581.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation
and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products
arriving at destination safely.
