340HP FAW Fuel Transportation Truck Oil Dispenser Refilling Tanker

Large Image : 340HP FAW Fuel Transportation Truck Oil Dispenser Refilling Tanker

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	clw5252WYYGC

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	12250-38620USD/UNIT
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	30 days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Fuel Tanker Truck	Drive Model:	4x2, 6x4, 8x4, 64, 42,8*4 Fuel Tanker Truck
Tank Volume:	25000liters,25000L,20000L,20000liters Fuel Tanker Truck	Fuel Type:	Diesel/gasoline/oil Fuel Tanker Truck
Condition:	New Fuel Tanker Truck	Transmission Type:	10 Speed Forward And 2-reverse
Horsepower:	336hp,371hp Fuel Tanker Truck	Tank Material:	Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess Steel/aluminum Alloy, Aluminum Alloy, Aluminum 5083
Product Name:	Fuel Tanker Truck, Fuel Delivery Truck,Fuel Tank Truck,howo Fuel Truck	Emission Standard:	Euro2/3/4/5
Wheelbase:	4600+1350
High Light:	FAW Fuel Transportation Truck , 340HP Fuel Transportation Truck , 4x2 Oil Dispenser Refilling Tanker

340HP FAW Fuel Transportation Truck Oil Dispenser Refilling Tanker
Description

Fuel Tanker Truck(also called fuel truck,fuel tank truck,fuel delivery truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.

1. Purpose of Fuel Tanker Truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of Fuel Tanker Truck: Oil pump, Hose reel with filling gun/Oil dispenser machine,flow meter

3. Tank shape of Fuel Tanker Truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of Fuel Tanker Truck the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts of howo Fuel Tanker Truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Feature-- Heavy duty FAW truck chassis;-- High quality carbon steel/aluminum alloy tanker material;-- Independent compartment for different types of fuel types;-- Serveral baffles inside tank to improve safety performance;-- High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

Reference pictures

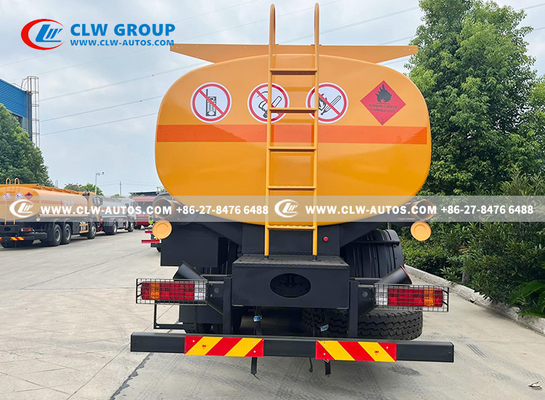

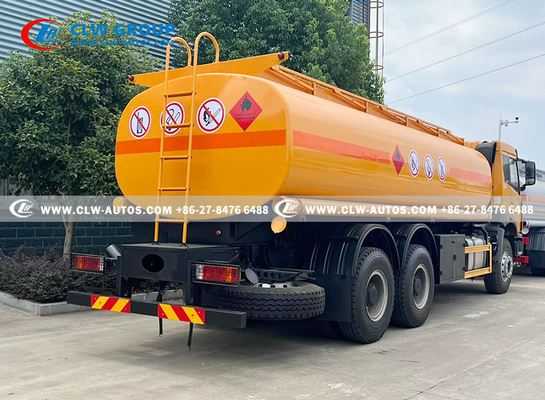

340HP FAW Fuel Transportation Truck Oil Dispenser Refilling Tanker 0

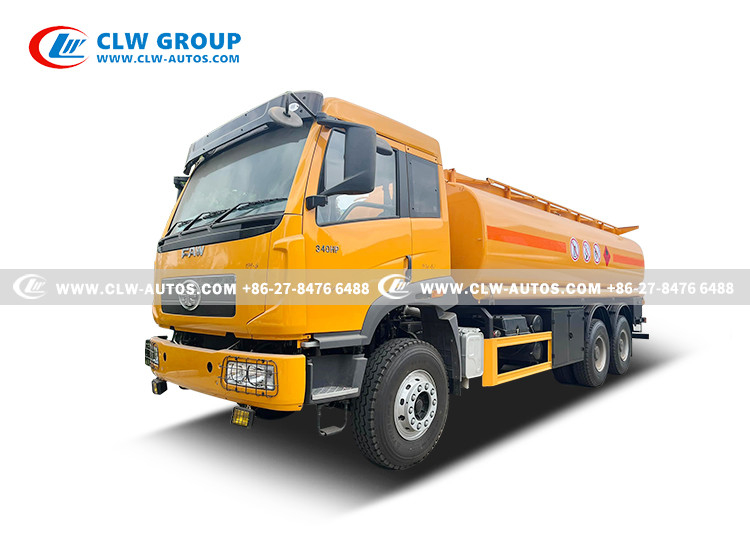

340HP FAW Fuel Transportation Truck Oil Dispenser Refilling Tanker 1

Specification

Fuel tank truck specification
Truck brand	20cbm Fuel Tanker Truck
Driving type	Right hand drive
truck fuel tank size(LWH)	1035024963633(mm)
Tank demesions (LWH)	505024961620 (mm)
Tank capacity(L)	20000liters
Approaching angle/Departure angle(°)	16/12(°)
F/R track base(mm)	1205/3485 (mm)
Curb weight(kg)	11360(Kg)
Max speed(km/h	90
Tank specification
Tank volume	20000L truck fuel tanks
Tank Material	carbon steel
Engine(Steyr technology, made in China)
Model	WP10.340E32,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
Fuel type	Diesel
Horse Power, max(kw/rpm)	340HP
Emission	EURO II
Fuel tanker capacity (L)	400
Transmission
Model	9JSD135T,9 forwards and 1 reverse
Brake system
Service brake	Dual circuit compressed air brake
Parking brake	spring energy, compressed air operating on rear wheels
Auxiliary brake	Engine exhaust brake
Front axle	9 ton
Rear axle	16 ton
Color	Optional
Tire	12R22.5-18PR
Tire quantity	10 with one spare
Electrical system
Battery	2X12V/165Ah
Alternator	28V-1500kw
Starter	7.5Kw/24V
Cab
HOWO76 cab with one sleeper and air conditioner

Key word: howo 25000liters fuel truck,howo 30,000l fuel truck,30tons fuel truck,30t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,30k liters fuel truck,30000liters fuel truck,isuzu tanker truck

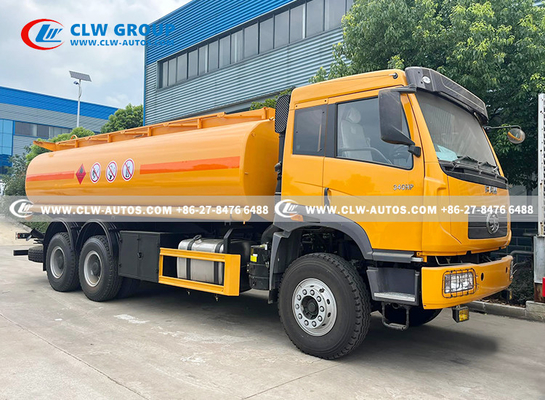

340HP FAW Fuel Transportation Truck Oil Dispenser Refilling Tanker 2
