8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe

8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe
8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe 8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe 8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe 8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe

Large Image :  8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5201

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Chassis Brand: Foton, JMC, Howo, Dongfeng, Isuzu, JAC, Etc. Gearbox: 6 Forward & 1 Reverse Gear
Tank Material: Carbon Steel, Stainless Steel Or Aluminum Alloy Tank Volume: 5M3, 10M3, 15M3, 20M3, 25M3
Tank Shape: Square Round, Round Transport Oil Type: Diesel, Petrol, Gasoline, Oil, Etc.
Oil Pump: Chinese Famous Brand Oil Dispenser: Chinese Famous Brand
Hose Reel With Filling Gun: 15 Meter (Length Can Be Longer As Per Request) Oil Vapor Recovery System: Optional
Delivery Time: 35 Days Color: Customized
Warranty: 1 Year
High Light:

8Ton FAW Refueling Truck

,

Sub Silo Design Oil Delivery Tanker

,

Unloading Oil Pipe FAW Refueling Truck

8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe

Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined. We can provide you all series tank trucks and price.

1. Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;

2. Tank shape: Optional for round square, oval, and round;

3. Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;

4. Oil pump:Optional single counting, double counting, and tax control tanker;

5. Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.

Product Specifications

FOTON Aumark Fuel Tank Truck (8CBM)
General Chassis Brand FAW
Overall Dimension 5995x1980x2160 mm
GVW / Kerb Weight 16,000kg / 6130kg
Cab Cab Capacity RHD, 3 persons allowed
Air Conditioner Heating/cooling air conditioner
Engine

Fuel Type

Diesel
Power 120 HP
Displacement 4214 ml
Emission Standard Euro 5
Chassis Drive Type 4X2 (Right hand drive)
Transmission 6 speed levers with 1 reverse
Wheelbase/No. of axle 3300 mm / 2

Tire Specification

7.00R16
Tire Number 6 tires and 1 spare tire
Max Speed 80 km/h
Paint Metallic paint
Superstructure Body capacity 8,000 Litres
Tanker Material Carbon Steel
Pump Fuel pump equipped for overhead delivery
Hose

High quality, wire strengthened hose,

with cooper wire, anti-static

Refueling Machine Equipped based on customer requirement
Control panel English or Your language
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers...
Optional

** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).

** It can be divided into many compartments.

** Imported American pump as optional.

** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc

** Heat preservation & heating system could be added.

** Bottom loading system can be equipped.

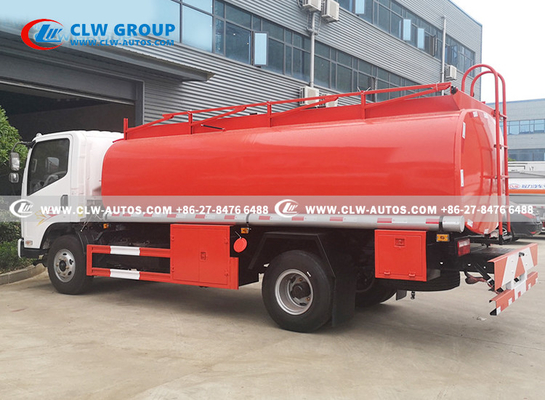

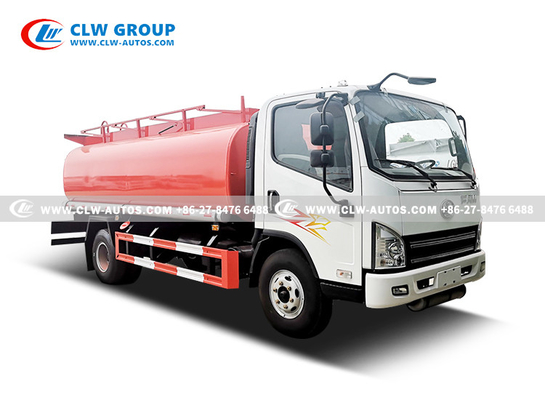

Reference Photos

8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe 0

8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe 1

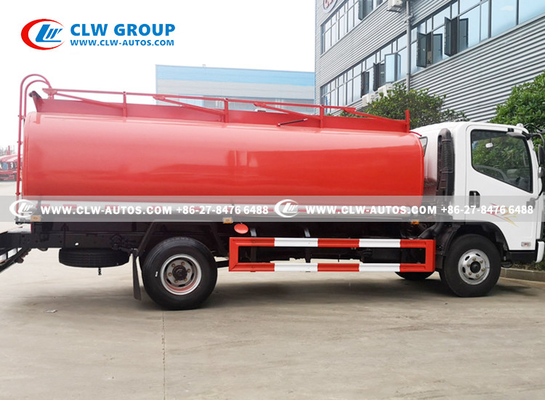

Other Kinds of Fuel tank trucks

8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe 2



8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe 3



Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.





Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
