HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsFuel Delivery Truck

Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser

Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser
Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser

Large Image :  Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: clw5161WYJYC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12250-31520USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Oil Refueling Truck Drive Model: 4x2, 6x4, 8x4, 6*4, 4*2,8*4 Oil Refueling Truck
Tank Volume: 10000liters,10000L,15000L,15000liters Oil Refueling Truck Fuel Type: Diesel/gasoline/oil
Condition: New Oil Refueling Truck Transmission Type: 6 Speed Forward And 1-reverse
Horsepower: 160hp Tank Material: Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess Steel/aluminum Alloy, Aluminum Alloy, Aluminum 5083
Product Name: Fuel Tanker Truck, Fuel Delivery Truck,Fuel Tank Truck,howo Fuel Truck Emission Standard: Euro2/3/4/5
Wheelbase: 4200mm
High Light:

3500gallon Oil Tanker With Refueling Dispenser

,

Shacman 10 CBM Oil Tanker

,

160hp Fuel Delivery Truck

Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser



CLW GROUP ’s full-canopy tank design helps to keep your delivery drivers out of the weather and elements during delivery. Equipment area provides easy access from both sides of the truck.

1. Standard tank capacities from 2,400 – 5,500 gallons;
2. custom sizes available starting at 1300 gallons up to 7,500 gallons
3. Top loading or bottom loading (optional)
4. Single or dual delivery systems
5. Common applications: heating oil, commercial and agricultural deliveries, fleet fueling, oil field deliveries and lubricants

6. Optional truck brand of Oil Refueling Truck: DFAC, Dongfeng, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, North Benz, HINO, etc.
7. Optional wheel drive of
Oil Refueling Truck: 4x2, 4x4, 6x4, 6x6, 8x4, left hand drive or right hand drive



Feature--Durable sinotruk truck chassis;--High quality carbon steel/aluminum alloy tanker material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

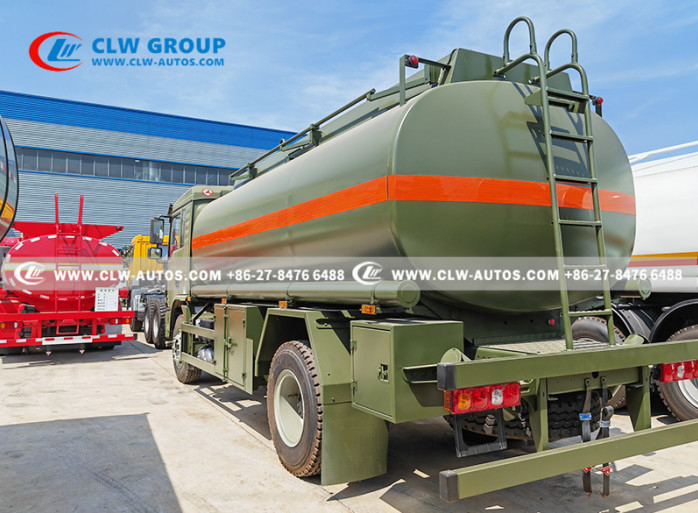

Reference pictures

Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser 0



Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser 1


Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser 2



Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser 3

Specification
Tank Body Capacity 10 cubic meters/15 cubic meters
Material

1. The tank is made of 5mm high-quality carbon steel Q235;

2.The tank material of 304 stainless steel or aluminum alloy is optional.

Filling Medium Liquid Fuel: gasoline or diesel
Equipment a. It can be equipped with a tax-controlled computer refueling machine (mass flow), equipped with a 10-15 meters automatic retractable reel, with a refueling gun

b. Bottle loading system.

c. There is a container indicator which can indicate the tank volume when filling or discharging.

d. In order to ensure the pressure in the tank is basically the same as the atmospheric pressure during the working process. A breathing valve is installed on the large cover of the tank. When the internal pressure of the tank is higher than 8KPa, the value plate on the breathing valve is open, and when the internal pressure is lower than 3PKa, the valve under the breathing valve is open.
Coating

a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.


b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.


c. Tank color is customerized if necessary





FAQ



Q: Can I buy a sample of your product for testing?

A.Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: L/C, T/T, paypal or other ways. 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q:Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .



Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser 4

Shacman 10 CBM 3500gallon Oil Tanker With Refueling Dispenser 5



Key word: 10000liters fuel truck,howo fuel truck,10tons fuel truck,10t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,20k liters fuel truck,20000liters fuel truck,shacman tanker truck,diesel dispensing truck,oil tanker lorry,fuel lorry,
