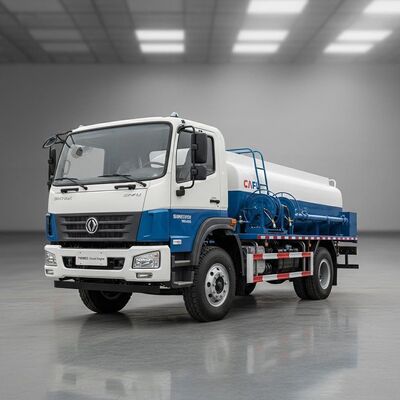

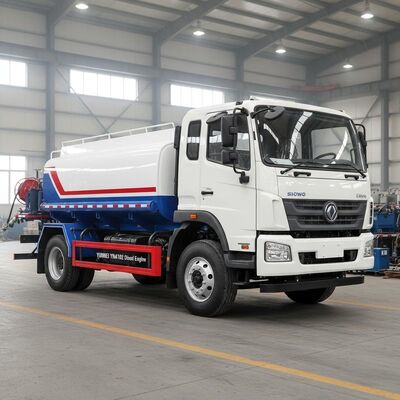

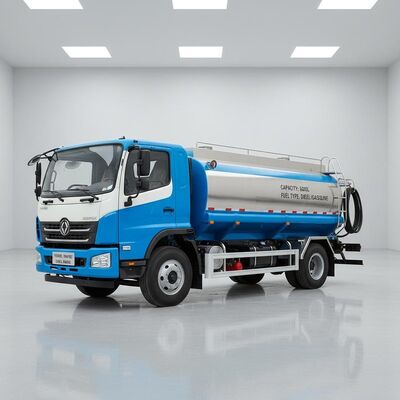

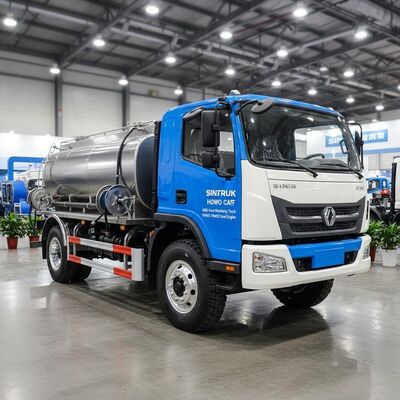

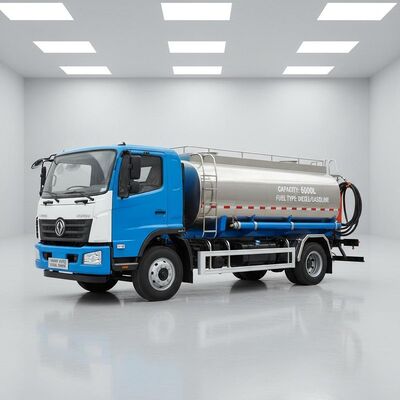

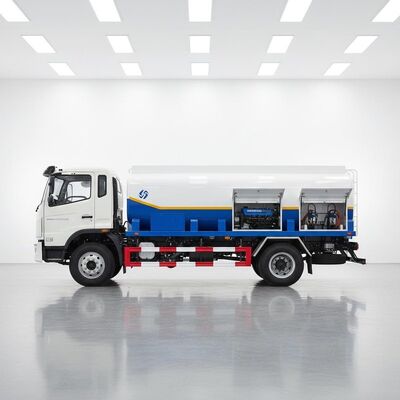

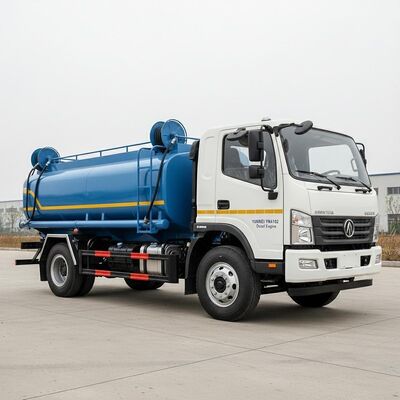

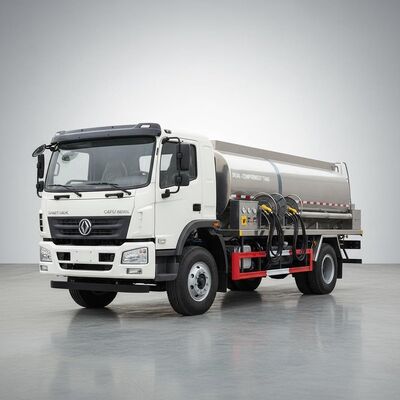

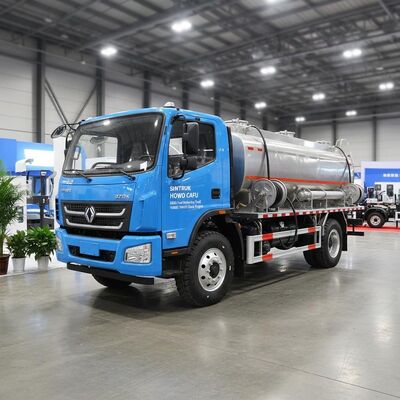

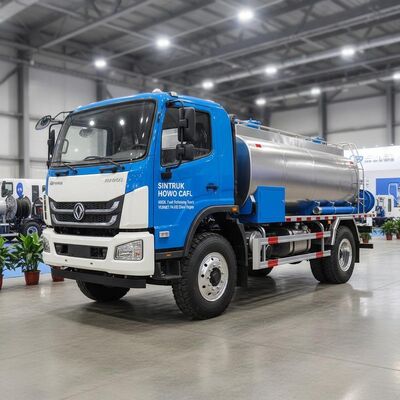

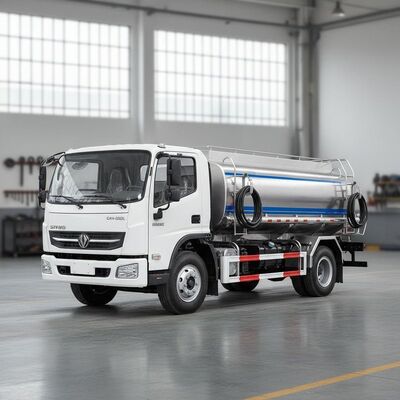

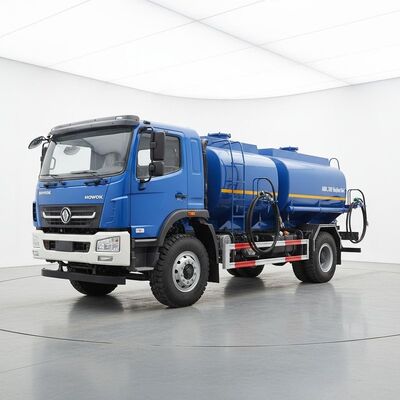

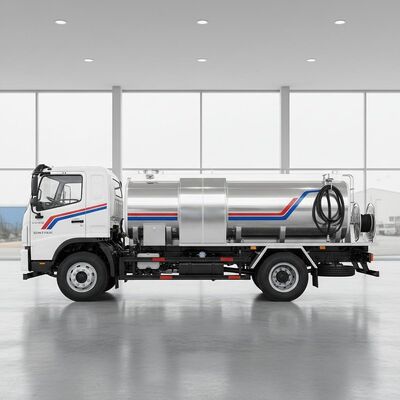

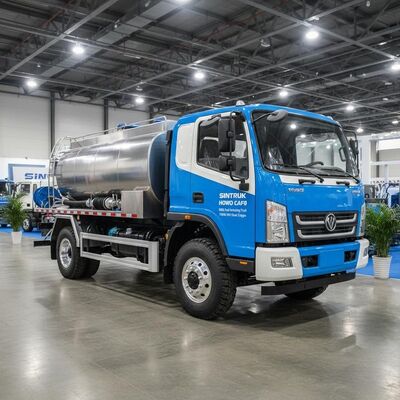

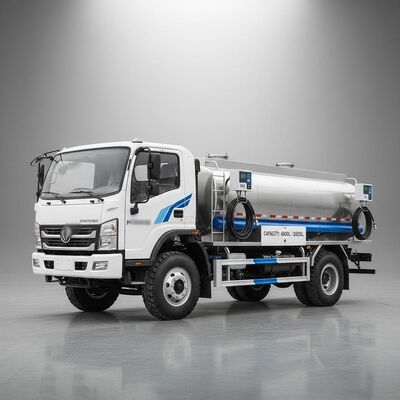

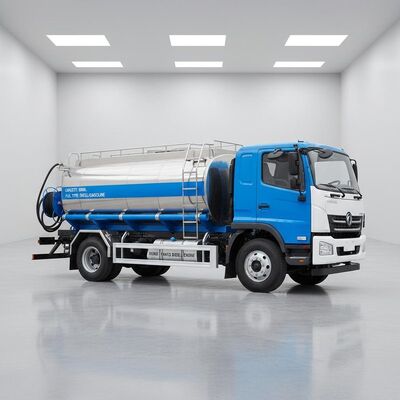

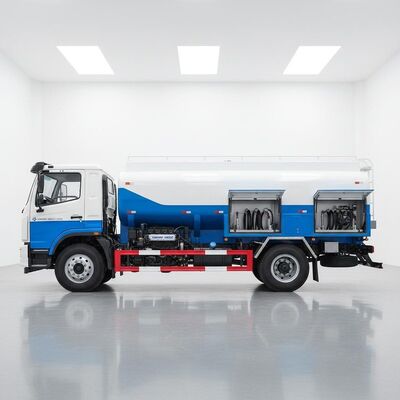

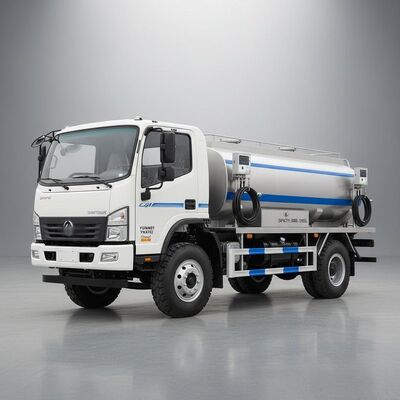

SINOTRUK HOWO CAFU 6000L Fuel Refueling Truck
Product Overview
The SINOTRUK HOWO CAFU 6000L fuel refueling truck is a professional mobile solution designed for the transportation and on-site dispensing of both diesel and gasoline. Manufactured entirely in China, this model combines a reliable HOWO chassis with a CAFU-style refueling system, delivering stable performance, high safety standards, and operational flexibility. With its compact structure and dual-compartment tank design, the truck is well suited for various fuel distribution tasks across industrial and commercial sectors.
Cabin & Operational Safety
The HOWO 2080 wide cabin is engineered to enhance driver comfort, visibility, and control during daily operations.
- Available in left-hand drive or right-hand drive
- Air-conditioned cabin for hot and demanding environments
- 360-degree camera system covering front, rear, and both sides
- Roof-mounted warning lamps to improve safety awareness
This configuration helps reduce blind spots and improves safety during maneuvering and refueling operations.
Engine & Chassis Performance
Powered by a YUNNEI YN4102 diesel engine (116 HP), the truck delivers dependable power with optimized fuel efficiency.
- Manual transmission for smooth and controlled driving
- Reinforced axle configuration ensures load stability
- Heavy-duty tires suitable for highways and rough terrain
The balanced chassis design supports long-distance fuel transport and frequent stop-and-go refueling work.

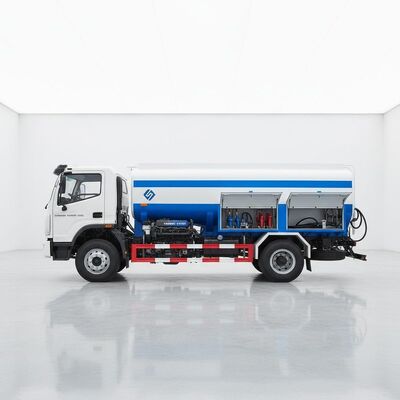

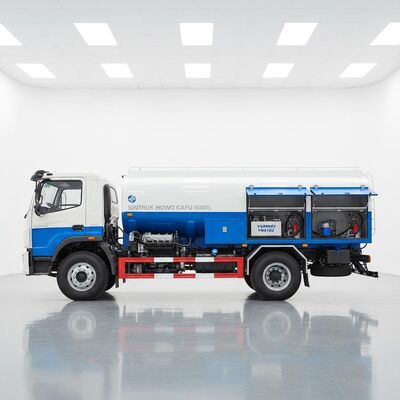

Fuel Tank & Dispensing System
The 6,000-liter fuel tank is divided into two fully independent compartments, allowing different fuel types to be transported and dispensed without cross-contamination.
- Q235B carbon steel tank with 4mm thickness
- Standard configuration: 3,000L + 3,000L (customizable)
- Independent PTO-driven pumps for each compartment
- Large-flow fuel dispensers (TOKHEIM or CENSTAR) with English interface
- Fueling reels with long hoses and fueling guns for flexible operation
Each compartment operates independently, enabling efficient and simultaneous refueling.
Control System & Safety Features
This CAFU fuel truck is equipped with comprehensive safety and monitoring systems to meet international fuel transport requirements.
- Electronic liquid level indicators for each tank
- Pneumatic bottom valves and European-standard aluminum manholes
- Rear operation cabinet with aluminum rolling door and internal lighting
- Static grounding belt and fire extinguishers installed
- Carbon steel protective tank cover (aluminum alloy optional)
These features help ensure safe fuel loading, transportation, and dispensing.
Key Advantages
- Supports both diesel and gasoline delivery
- Independent dual-compartment fueling system
- Reliable HOWO chassis with proven performance
- High safety configuration suitable for overseas markets
- Flexible options for different operational needs
Technical Specifications
| Component |
Specification |
| Fuel Tank Capacity |
6,000 liters (3000 liters + 3000 liters) |
| Tank Material |
Q235B carbon steel |
| Thickness |
4mm of tank and 5mm of end plate |
| Compartments |
2 |
| Fuel Dispenser |
2 sets of Censtar brand, flow rate at 70L/min, English operation panel showing unit price/filling volume/total price |
| Oil Pump |
2 Nos of 2.5" Oil Pumps, Driven by PTO; Independent Pump in and Pump out for each compartment |
| Filling Hose |
1 inch and 15 meters, 2 sets for diesel and petrol separately |
| Filling Hose Reel |
2 Nos |
| Filling Nozzle |
2 Nos |
| Manhole Cover |
∮500mm 2 sets with breather valves |
| Bottom Valve |
2 set of API aluminum Pneumatic Bottom Valves |
| Discharging Valve |
2 set ∮100 discharging valves |
| Level Gauge |
Each tank top is equipped with an electronic level meter |
| Operation Compartment |
Located at rear of truck with aluminum alloy door |
| Control System |
Power ON/OFF, LIGHTING, FUEL PUMP ON/OFF, FUEL DISPENSER ON/OFF, MAIN VALVE ON/OFF, FUEL LEVEL DIGITAL DISPLAY |
| Safety Equipment |
2 Nos of 4KG extinguishers; 1 No of static belt |
| Painting |
Color and design as customer's requirement |
| Special Design |
Tank body is covered by carbon steel van |

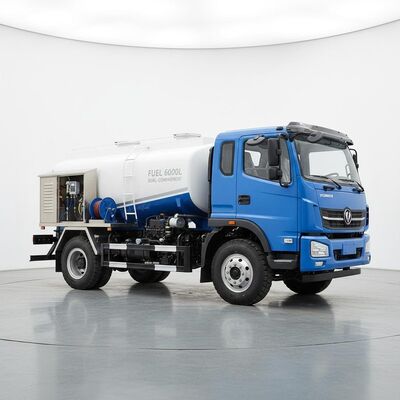

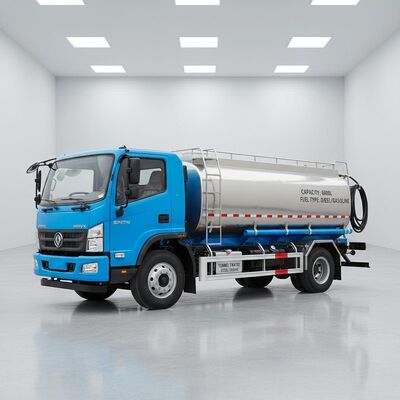

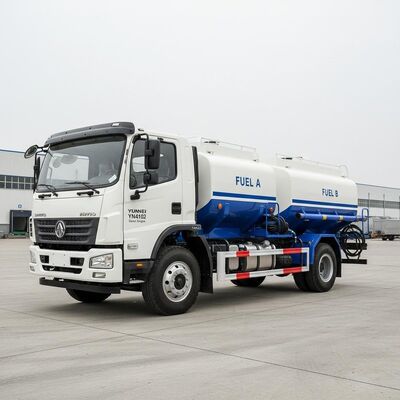

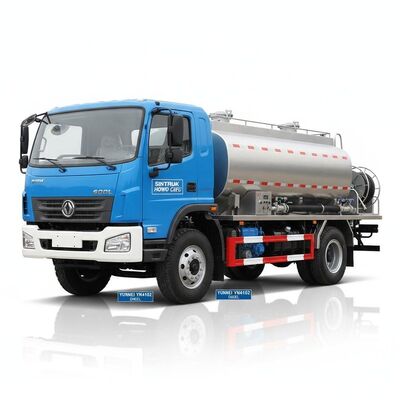

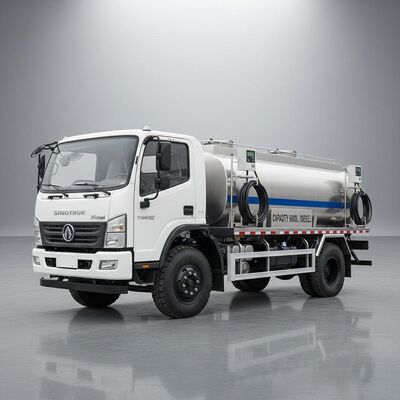

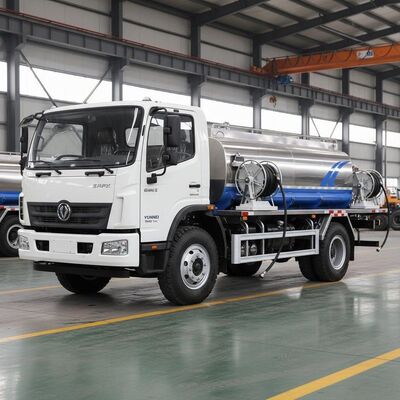

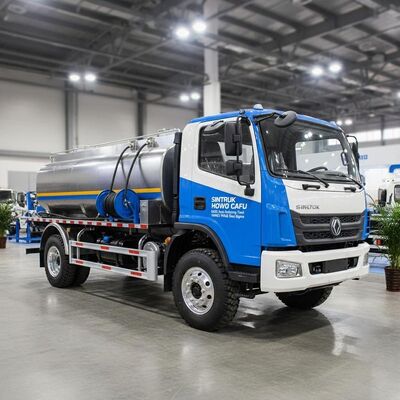

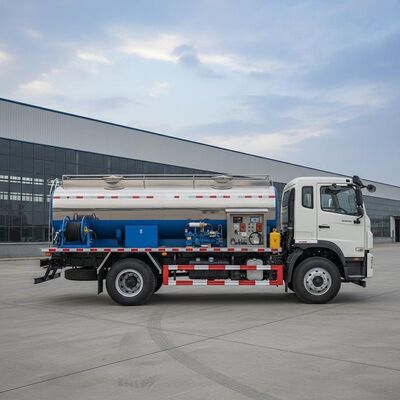

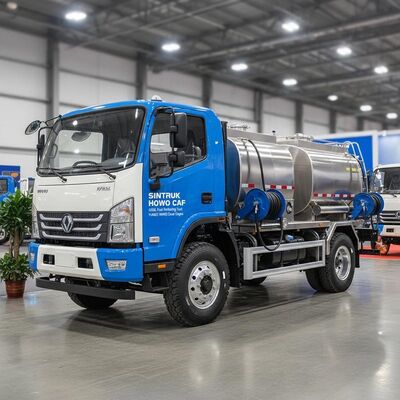

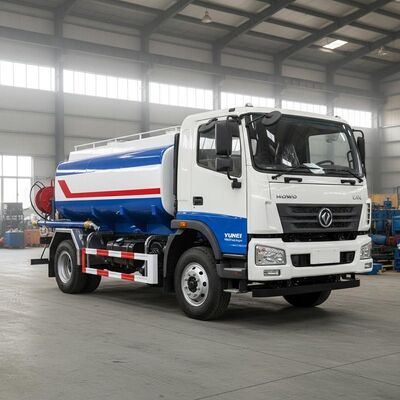

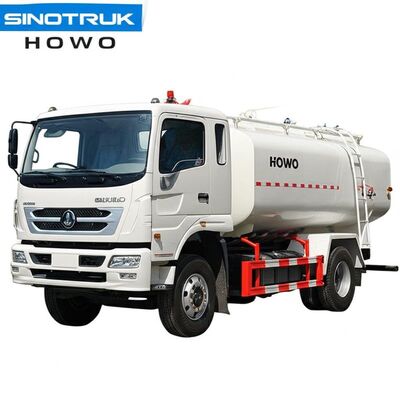

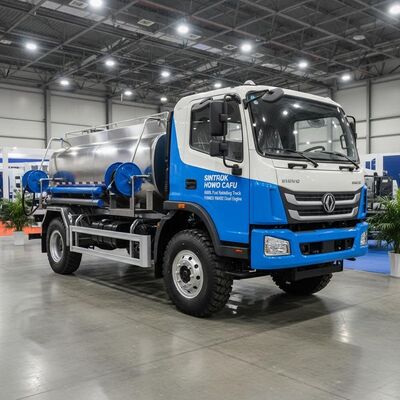

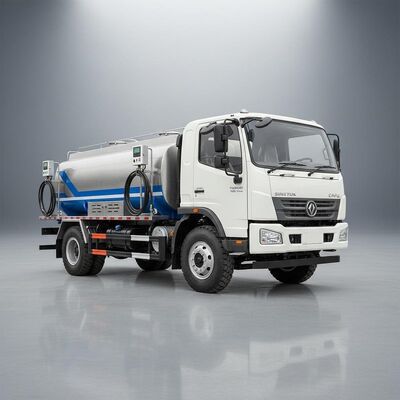

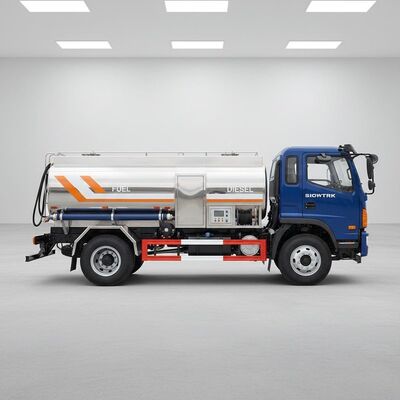

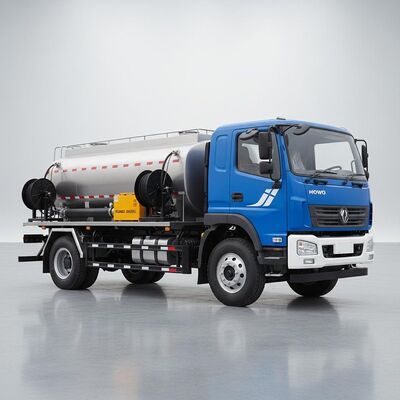

Product Gallery
