4-Axle Bulk Feed Semi Trailer with High Payload Capacity and Automated Unloading System for Efficient Feed Transport

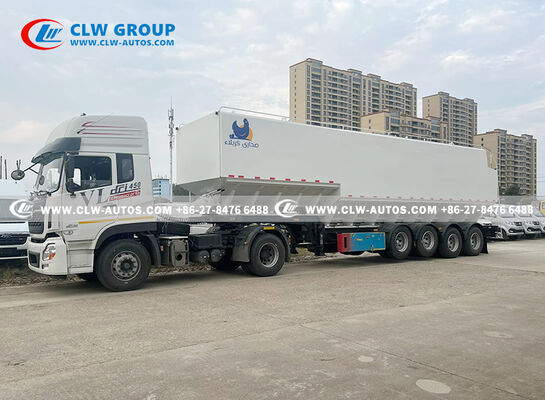

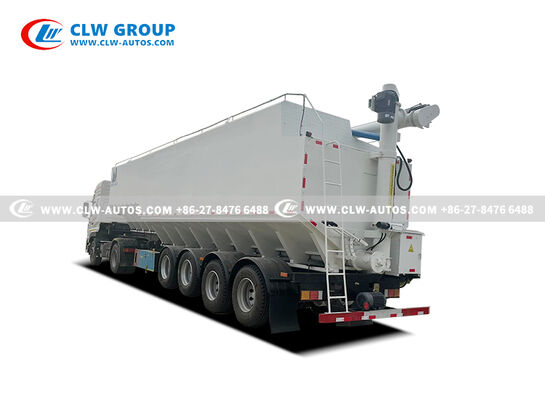

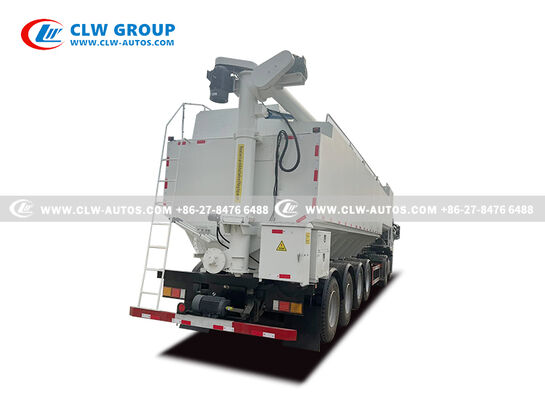

Large Image : 4-Axle Bulk Feed Semi Trailer with High Payload Capacity and Automated Unloading System for Efficient Feed Transport

Product Details:

Place of Origin:	Suizhou, China
Brand Name:	CLW
Certification:	CCC,ISO,
Model Number:	clwghtrhjtyyt

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked packing,Ro-ro,Bulk Ship
Delivery Time:	20-30 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500Unit Per Month

Contact Now

Detailed Product Description

Highlight:

4-Axle Configuration Bulk Feed Semi Trailer

High Payload Capacity Feed Transport Trailer

Automated Unloading System Animal Feed Trailer

4-Axle Bulk Feed Semi Trailer

The 4-axle bulk feed semi trailer is a high-capacity transportation solution developed for the safe, efficient, and hygienic delivery of bulk animal feed. Featuring a large-volume, multi-compartment tank and a fully mechanized unloading system—either pneumatic or auger-based—this trailer significantly improves transport efficiency while preserving feed quality. Designed for long-distance logistics, its 4-axle layout ensures excellent stability, optimized axle load distribution, and compliance with road regulations, making it ideal for intensive feed distribution operations.

Key Advantages

High Payload Capacity & Logistics Efficiency

With a volume range of approximately 40-60 m³, the trailer enables fewer transport trips and lower fuel consumption. The automated unloading system allows rapid discharge at farm sites without manual handling, greatly reducing turnaround time.

Feed Safety & Hygiene Protection

Constructed from galvanized steel or aluminum alloy, the tank is corrosion-resistant, food-safe, and easy to clean. Fully sealed compartments protect feed from moisture, contamination, and pests, while the complete discharge design minimizes residue and prevents cross-contamination.

Stable, Road-compliant Structure

The 4-axle configuration provides excellent stability and even weight distribution, supporting legal road operation over long distances. A reinforced chassis and suspension system ensure durability on highways as well as farm access roads.

Flexible Operation & Precise Control

Multiple compartments allow transport of different feed types in one journey. A centralized control panel simplifies unloading operations. Pneumatic systems are ideal for fragile pellets, while auger systems offer reliable performance for all feed varieties.

Durable, Low-maintenance Design

High-quality materials and proven components ensure long service life and reduced maintenance requirements. Comprehensive lighting and safety systems support safe operation in all conditions.

Applications

Bulk feed transport for large livestock farms, commercial feed mills, agricultural cooperatives, aquaculture feed suppliers, regional feed distributors, and government-supported agricultural programs.

Technical Specifications

Category	Parameter	Specification
TRAILER STRUCTURE	Type	Bulk Feed Semi-trailer
	Axle Configuration	4 axles (Tandem or Tri-axle groups)
	Frame Material	High-tensile steel (Q345B)
	Suspension	Mechanical leaf spring suspension (Air suspension optional)
	Brake System	Dual-line air brake system, ABS optional
	Landing Gear	Heavy-duty three-stage landing gear (manual or hydraulic)
	Tire Specification	12.00R20 or 12.00R22.5 (16 pcs)
BULK FEED TANK	Tank Material	Hot-dip galvanized steel or Aluminum alloy
	Tank Capacity	40 - 60 cubic meters (approx. 25-38 tons of feed)
	Compartments	3 - 5 compartments (for multi-feed transport)
	Cross-section	Aerodynamic "V" or "U" shape for complete discharge
	Top Hatches	Multiple sealed, locking manholes for each compartment
	Internal Finish	Smooth, seam-welded interior to prevent residue buildup
UNLOADING SYSTEM	Discharge Type	Pneumatic (pressure) conveyor or Mechanical auger system
	Discharge Rate	4 - 8 tons per minute (pneumatic), 2 - 4 tpm (auger)
	Blower/Auger Power	Independent diesel engine power pack (standard)
	Discharge Hose/Pipe	Flexible hose or rigid pipe with swivel joint
	Discharge Height/Reach	Vertical: up to 15m, Horizontal: up to 8m
	Control System	Centralized control panel for blower, valves, and auger
OPERATIONAL FEATURES	Loading	Gravity-fed through top hatches at feed mills
	Venting	Dedicated venting system with filters to prevent dust and moisture ingress
	Ladder & Walkway	Safety handrails and non-slip walkway on top
	Lighting	Full LED lighting package and reflective markings
	Toolbox	Optional storage box for hoses and tools
DIMENSIONS & WEIGHTS	Overall Length	13,000 - 14,000 mm
	Overall Width	2,550 mm (standard)
	Overall Height	3,900 - 4,100 mm (loaded)
	Tank Diameter	Approx. 2,300 - 2,500 mm
	Tare Weight	10,000 - 13,000 kg
	Gross Vehicle Weight (GVW)	Up to 60,000 - 80,000 kg (region-dependent)
	Payload Capacity	25,000 - 38,000 kg (depending on feed density)
CERTIFICATION	Design Standards	Complies with GB1589, EN 12642, and agricultural transport regulations
	Hygiene Standards	Suitable for feed-grade transport (galvanized/Aluminum construction)
