FAW J6P Aircraft Refueling Truck with High-Precision Fuel Delivery, Enhanced Safety Protection, and Mobile Refueling Flexibility

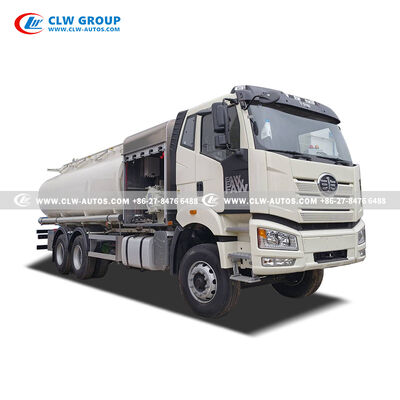

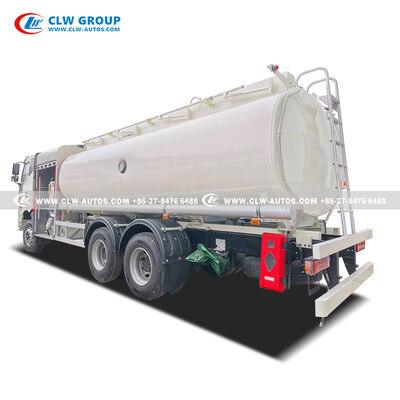

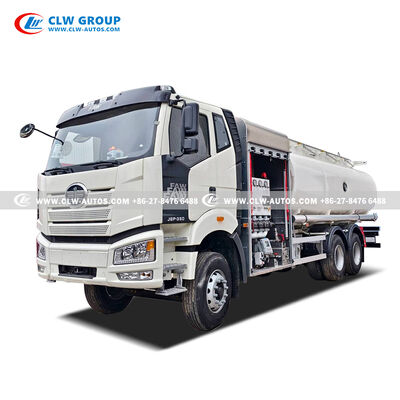

Large Image : FAW J6P Aircraft Refueling Truck with High-Precision Fuel Delivery, Enhanced Safety Protection, and Mobile Refueling Flexibility

Product Details:

Place of Origin:	Suizhou, China
Brand Name:	CLW
Certification:	CCC,ISO,
Model Number:	clwghtrhjtyyt

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiable
Packaging Details:	Naked packing,Ro-ro,Bulk Ship
Delivery Time:	20-30 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500Unit Per Month

Contact Now

Detailed Product Description

Highlight:

High-Precision Fuel Delivery Aircraft Refueling Truck

Enhanced Safety Protection Fuel Delivery Truck

Mobile Refueling Flexibility Aviation Refueler

FAW J6P Aircraft Refueling Truck

The FAW J6P Aircraft Refueling Truck is a specialized aviation fuel supply vehicle designed for safe, precise, and efficient aircraft ground refueling. Built on the FAW J6P heavy-duty chassis, it is engineered to support demanding refueling operations across various aviation environments.

The vehicle integrates a high-accuracy fuel delivery system, advanced safety protection devices, and a stable control system to ensure secure handling of aviation kerosene. Its robust construction and intuitive operation make it well suited for modern airport ground support services.

Product Overview

This aircraft refueling truck is suitable for use at civil airports, military airbases, and general aviation facilities. Its mobile fueling capability makes it particularly valuable in locations without fixed hydrant infrastructure, providing flexible and reliable on-site refueling support.

The FAW J6P chassis offers strong load capacity, stable handling, and long service life, ensuring consistent performance under intensive operating conditions.

Key Advantages

Accurate and Stable Fuel Delivery: High-precision metering and controlled flow ensure compliance with aviation refueling requirements.
Enhanced Operational Safety: Multiple safety protection systems reduce risks during fueling and transfer operations.
Strong and Durable Chassis: Heavy-duty FAW J6P platform ensures stability and reliability in long-term service.
Operator-Friendly Design: Simplified controls improve efficiency and reduce workload during continuous operations.
Mobile Refueling Flexibility: Enables aircraft fueling in off-airport, remote, or temporary locations.

Applications

Commercial Aviation Airports: Supporting efficient turnaround for passenger and regional aircraft.
Business Aviation and Service Centers: Ideal for FBOs, MRO facilities, and charter operations.
Defense and Government Use: Suitable for military logistics, transport aircraft, and special missions.
Remote and Off-Airport Operations: Providing reliable refueling support where fixed hydrant systems are unavailable.

Technical Specifications

Technical Parameters

Condition	New condition/Left hand drive/6x4
Chassis Brand	FAW
Payload	14650 kg
Wheelbase	4800+1350mm
Front/Rear Axle Loading Weight	7000/18000 kg
Dimensions (Whole Truck)	854025003680 mm
Max. Driving Speed	80 km/h
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Tire Quantity	10pcs with one spare tire
Tire Specifications	12R22.5 ou 12.00R20
Fuel Tank Volume	400 L
Transmission	Manual type, 12 Forwards and 2 reverses
Steering	Power steering, hydraulic steering with power assistance
Cabin	Flat-top extended cab, manual windows, manual rearview mirrors, driver's seat with mechanical shock absorption. It can accommodate three people, With Air conditioner
Engine Brand	FAW
Engine Model	CA6DL2-35E3F
Fuel Type	Diesel
Displacement	8570 ml
Power	261 kw
Horsepower	350 HP
Cylinder Number	6 pcs
Emission Standard	Euro 3

Upper & Equipment

Fuel Tank Capacity	20 cbm
Tank Material	Aluminium alloy 5182
Compartment Quantity	1 pcs
Filling Medium	Aviation kerosene
Piping System	Aluminium alloy 5182
Manhole Quantity	2pcs
Manhole Size	500 mm
Manhole Standard	API
Manhole Material	Aluminium alloy
Breather Valve Quantity	4 pcs
Breather Valve Material	Aluminium alloy
Oil-gas Recovery System	With
Overflow Protection System	With
Bottom Valve	1 unit 8inch
Tank Body Thickness	5.6 mm
End Cap Thickness	5.7 mm
Baffle Thickness	5.7 mm
Filter	China famous brand; Flow rate is 2500L/min
Flow Meter	The Precision level is 0.2 level. Flow rate is 2500L/min
Centrifugal Pump	Pumping in and pumping out. Flow rate is 2500L/min
Filling Nozzle	1.5inch (DN38) 20m Gravity refueling hose with filling nozzle(≥350L/min) 2.5inch(DN65) 25m Pressure refueling hose with filling nozzle(≥1200L/min)
Hose Reel	It is driven by hydraulic motor. The winding/rewinding speed is adjustable
Level Gauge	6 inch floating-ball type level gauge

Additional Equipment

Differential Pressure Gauge	Equipped
Air Eliminator	Equipped
Reel Expansion Joint	Equipped
In-line Pressure Control Valve	Equipped
DeadMan System	Equipped
Valve	Equipped
Bypass Valve (Overflow Pipe Pressure)	Equipped
Pneumatic System	Equipped
Dial Gauge	Equipped
Main Valve with Venturi Tube	Equipped
Swivel Joint Compensator	Equipped
Electrostatic Reels	Equipped
High Level Sensor	Equipped
Straight Through Valve	Equipped
