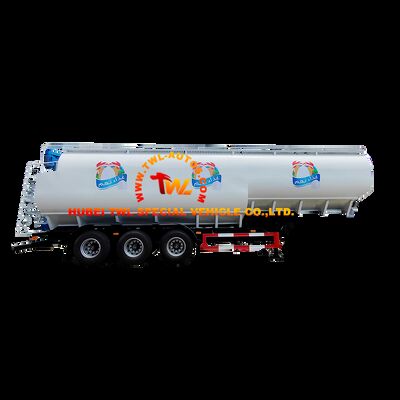

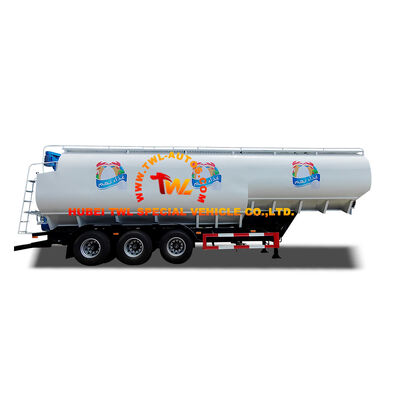

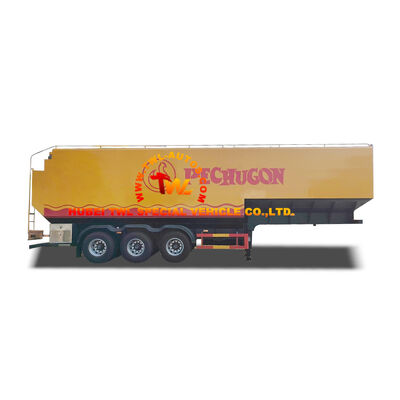

Triple-Axis Bulk Feed Semi-Trailer with 5 Independent Compartments and Dual-Power Drive Systems

Name: Triple-Axis Bulk Feed Semi-Trailer with 5 Independent Compartments and Dual-Power Drive Systems
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 125660.00 USD
Availability: InStock

Large Image : Triple-Axis Bulk Feed Semi-Trailer with 5 Independent Compartments and Dual-Power Drive Systems

Product Details:

Contact Now

Detailed Product Description

Highlight:

Triple-Axis Chassis Bulk Feed Semi-Trailer

5 Independent Compartments Feed Transport Trailer

Dual-Power Drive Systems Bulk Feed Trailer

Triple-Axis Bulk Feed Semi-Trailer

A heavy-duty, multi-compartment bulk feed transporter engineered for precision delivery and efficient discharge. Choose between fully electric or hydraulic drive systems to match your operational needs.

Trailer Overview

Built on a robust 3-axis low-profile chassis, this semi-trailer combines structural strength with functional design. It is equipped with reliable axles, ABS braking, and high-capacity components to ensure safe and stable transport. The core innovation lies in its adaptable discharge system, allowing controlled, compartment-by-compartment unloading directly to feeding sites.

Core Advantages

Engineered for Load & Longevity: Features a reinforced frame with high-tensile steel upper/lower wing plates and web plate. Outfitted with 13-ton rated axles, 28-ton landing legs, durable 12R22.5 tires, and a reliable air brake system with ABS for consistent performance under heavy loads.
Precision Discharge Management: The high-strength steel tank is segmented into 5 independent compartments. Operators can manage the unloading sequence and flow rate for each compartment, minimizing feed mixing and enabling precise delivery.
Dual-Power Flexibility: Select the optimal drive system for your infrastructure.
- Electric Drive Model: Utilizes four external 5.5 kW electric motors for clean, quiet operation. Includes a wireless remote for convenient control of the top auger.
- Hydraulic Drive Model: Operates via the tractor's PTO, driving a hydraulic system that powers all augers for powerful, self-contained performance.
Optimized Auger System: A network of four augers ensures efficient material flow: twin horizontal bottom augers feed a vertical lift auger, which transfers feed to a hydraulically-actuated 9-meter top discharge auger. The top auger offers 180° rotation for broad placement coverage.
Functional Completeness: Comes ready with practical inclusions like a mounted tool box, a spare tire carrier, and the option to add an integrated generator (electric model) or a recurrence system (hydraulic model) for enhanced operational independence.

Ideal Use Cases

Commercial feed mills distributing to large farms and cooperatives
Large-scale livestock, poultry, or aquaculture operations receiving bulk feed
Agricultural logistics companies requiring versatile and reliable feed transport equipment

Product Specifications

Category	Specification
Trailer Type	3-Axis Low-High Skeleton Semi-Trailer
Coupler	90# Trailer Coupler
Landing Gear	28-ton capacity
Axles	3 x 13-ton Guangdong Fu Huaqiao axles
Brakes	16-ton brake linings, ABS
Tires	12R22.5
Suspension	8-leaf spring set
Air Chambers	4 large + 2 small
Tank Material	High-strength steel
Compartments	5 independent compartments
Auger System	4 augers total: 2 horizontal bottom, 1 vertical rear lift, 1 top discharge (9 m)
Top Auger Control	Hydraulic lift, 180° left/right rotation
Drive Options	Electric: 4 x 5.5 kW 380V motors, wireless remote control; optional generator Hydraulic: PTO + hydraulic pump/motor, fully hydraulic; optional recurrence
Additional	Tool box, spare tire rack
