3-Axle Hydraulic Livestock Trailer with 36 Fans and Triple Decks for Superior Animal Transport

Name: 3-Axle Hydraulic Livestock Trailer with 36 Fans and Triple Decks for Superior Animal Transport
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 125660 USD
Availability: InStock

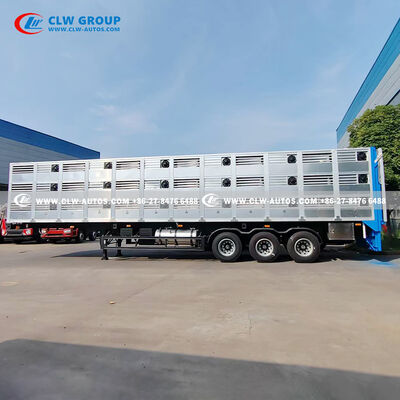

Large Image : 3-Axle Hydraulic Livestock Trailer with 36 Fans and Triple Decks for Superior Animal Transport

Product Details:

Contact Now

Detailed Product Description

Highlight:

3-Axle Livestock Trailer

Hydraulic Livestock Semi-Trailer

36 Fans Animal Transport Trailer

3-Axle Hydraulic Aluminum Livestock Trailer | 36 Fans & Triple Decks

Maximize your livestock transport efficiency with our lightweight Aluminum Semi-Trailer. Featuring 3 decks, a full hydraulic lift system, and 36 ventilation fans for superior animal welfare.

Overview

Built for durability and humane transport, this trailer combines a heavy-duty chassis with a smart aluminum body. Experience easy loading, optimal airflow, and robust performance with every trip.

Key Feature Highlights

Chassis & Running Gear: 10/12mm Main Beam, 6mm Web Plate, 90# King Pin & 28-ton FUWA Landing Gear, 3x 13-ton FUWA Axles & Kormee ABS, 12R22.5 Tires & 16-ton Brake Shoes

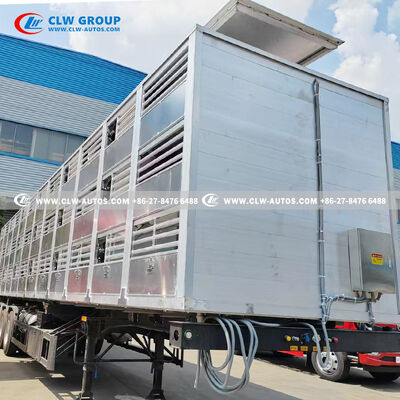

Aluminum Body Design: High-strength welded aluminum alloy construction with 3 decks featuring anti-slip flooring and split-opening internal decks. Fully welded floor plates ensure leak-proof containment.

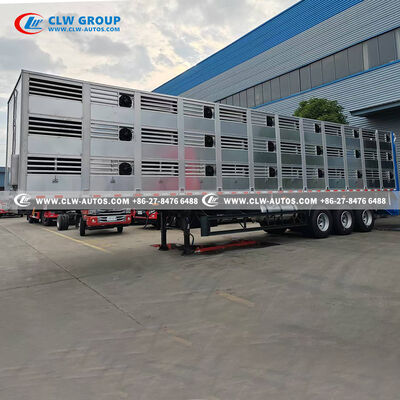

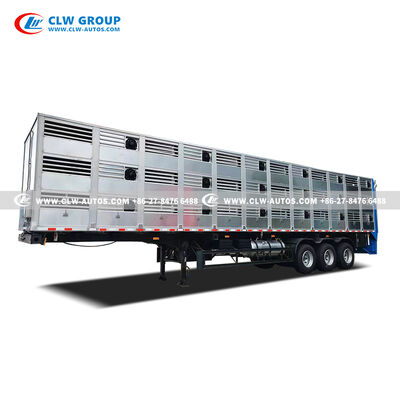

Operational Features: Hydraulic roof for easy interior access and washing, hydraulic tailgate with integrated lifting platform, 36 ventilation fans (18 per side) for alternating cross-ventilation, and 3 internal CCTV cameras for livestock monitoring.

Application

Perfect for livestock farmers, transporters, and logistics companies requiring a high-capacity, easy-to-clean solution for moving cattle, sheep, or hogs safely and comfortably.

Product Specifications

Category	Specification
Trailer Type	Three-Deck Aluminum Alloy Livestock Semi-Trailer
Application	Transport of cattle, sheep, pigs, and other livestock
Material	High-strength custom aluminum alloy profiles (welded structure)

Chassis & Running Gear

Component	Details
Main Beam (Frame)	Upper Plate: 10mm / Lower Plate: 12mm / Web Plate: 6mm
King Pin	90#
Landing Gear	28-ton capacity (FUWA Brand)
Axles	3 Axles, 13-ton each (FUWA Brand)
Suspension	16 x 8 piece leaf springs
Brake System	16-ton brake shoes; Air Chambers (4 large, 2 small)
ABS	Kormee ABS System
Tires	12R22.5

Upper Structure (Livestock Compartment)

Feature	Specification
Decks	3 Full Decks
Flooring	Anti-slip aluminum plate (Fully welded to prevent leakage)
Internal Partitions	Split-opening (clamshell) deck plates for flexible access

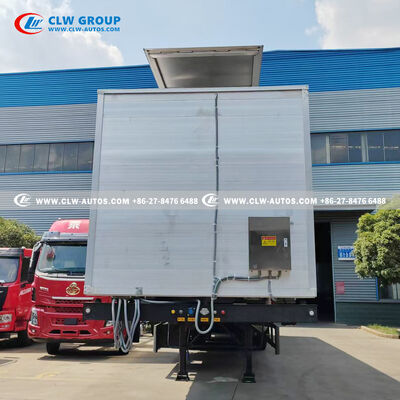

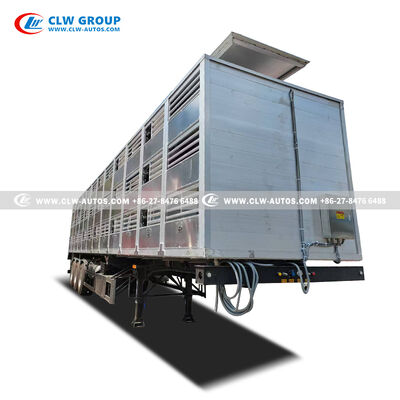

Roof	Hydraulically lifting roof (for cleaning and personnel access)

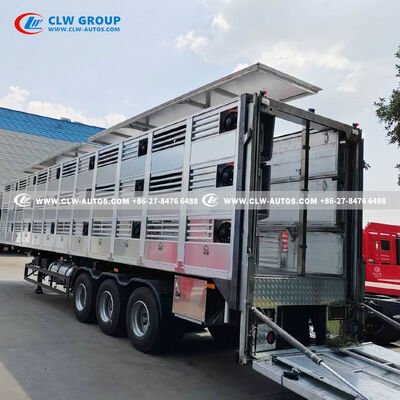

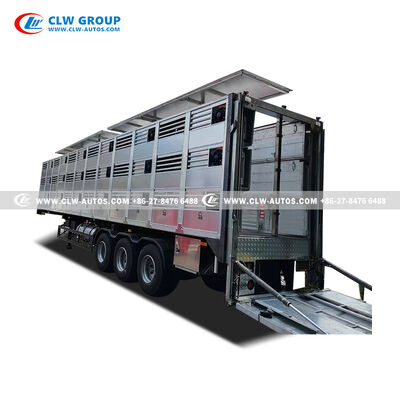

Rear	Hydraulic lifting platform (Tail lift)
