FAW J6P 24m³ 7-Compartment ADR-Compliant Fuel Tanker for Efficient Multi-Fuel Delivery

Name: FAW J6P 24m³ 7-Compartment ADR-Compliant Fuel Tanker for Efficient Multi-Fuel Delivery
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 33,935.00 USD
Availability: InStock

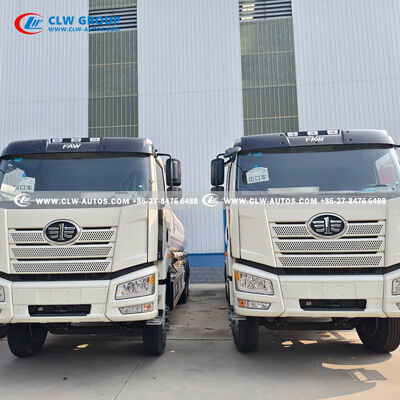

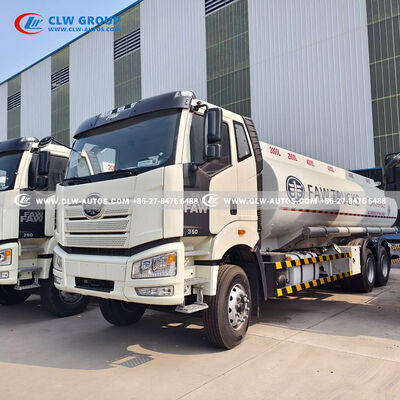

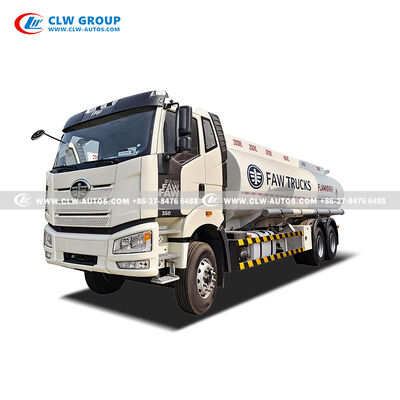

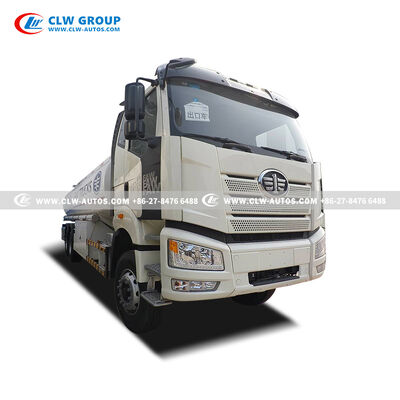

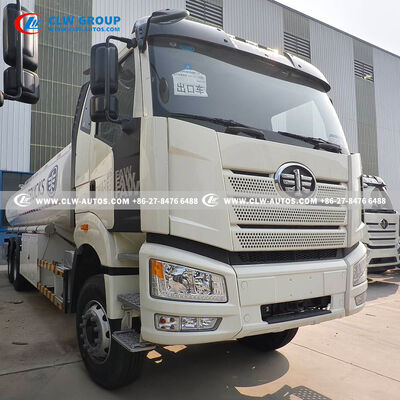

Large Image : FAW J6P 24m³ 7-Compartment ADR-Compliant Fuel Tanker for Efficient Multi-Fuel Delivery

Product Details:

Contact Now

Detailed Product Description

Highlight:

7-Compartment Fuel Tanker

24m³ Capacity Fuel Delivery Truck

ADR-Compliant Petroleum Tanker

FAW J6P 24cbm 7-Bay Fuel Tanker: One Truck, Seven Loads

Why send multiple trucks when one can do the job? The FAW J6P 7-Compartment Fuel Tanker is the ultimate solution for maximizing efficiency in petroleum logistics. With a massive 24m³ capacity divided into 7 independent bays, you can haul gasoline, diesel, and other fuels all at once. It's the smartest way to cut fuel costs, reduce your fleet size, and speed up deliveries.

The modern fuel distribution landscape demands versatility. The FAW J6P 24cbm fuel tanker is designed to meet this challenge by consolidating the function of multiple trucks into one. Featuring a segregated 7-compartment tank (approximately 6,340 gallons), this vehicle enables operators to transport different fuel types simultaneously without cross-contamination. Leveraging the proven durability and fuel efficiency of the FAW J6P chassis, this unit is equipped with advanced safety protocols and independent loading/unloading systems, making it the ideal asset for distributors, mining operations, and retail fuel supply chains requiring a multi-product solution.

Key Features

Modular 7-Compartment Tank: The defining feature of this tanker is its 7 independent compartments, allowing for the safe transport of up to seven different liquid products at once. Internal volume distribution (e.g., large compartments for diesel, smaller ones for premium gasoline) is customizable to match your specific order patterns, effectively eliminating the need for single-product fleet redundancy.
ADR-Compliant Safety Architecture: Safety is the core design principle. The vehicle meets stringent European ADR standards for Class 3 flammable liquids. It comes standard with EU-spec manhole covers fitted with pressure/vacuum valves, an emergency valve system with thermal and overspeed sensors (API adapter), and internal anti-surge baffles to ensure stability during transit.
High-Performance FAW J6P Chassis: Powered by a high-torque FAW engine (CA6DK1 series), the chassis features lightweight construction (aluminum alloys, lightweight axles) to maximize payload. With extended service intervals (up to 100,000 km on rear axles) and a B10 life exceeding 1.5 million kilometers, this truck is engineered for high uptime and a low total cost of ownership.

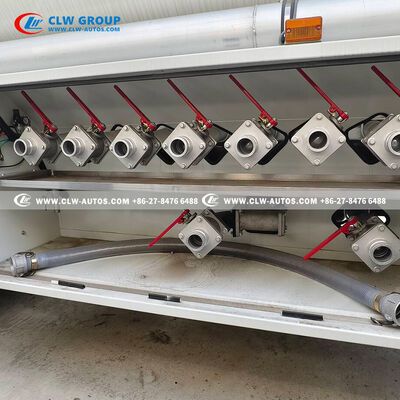

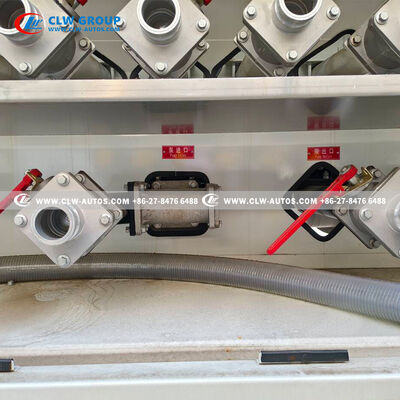

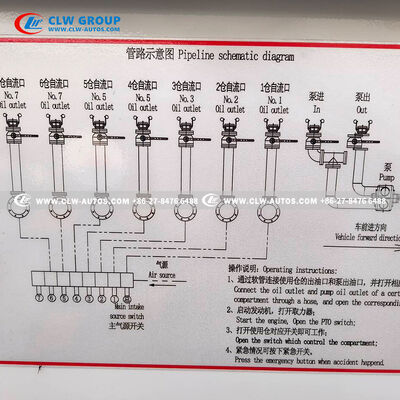

Precision Fluid Management: Each compartment features an independent piping and manifold system, granting the operator precise control over loading and unloading sequences. For enhanced functionality, the system can be integrated with high-accuracy flow meters for fiscal metering or an onboard dispenser with a retractable hose for direct-to-vehicle refueling.

Applications

Petroleum Logistics Companies: Efficiently distribute gasoline, diesel, and biofuels from refineries and coastal depots to inland storage terminals.
Retail Fuel Supply: Replenish multi-grade service stations with a single trip, filling all underground tanks without cross-product contamination.
Mining & Heavy Industry: Deliver diesel directly to remote mine sites and construction projects, utilizing the optional onboard dispenser for refueling heavy earthmoving equipment.
Aviation & Commercial: Suitable for transporting Jet A-1 to regional airports or supplying heating oil to large commercial facilities.

Technical Specifications

Chassis Technical Parameters

Driving mode	FAW J6P, 6*4
Dimension	1090025003250mm
Gross weight	25000kg
Curb weight	11500kg
Wheelbase	4600+1350mm

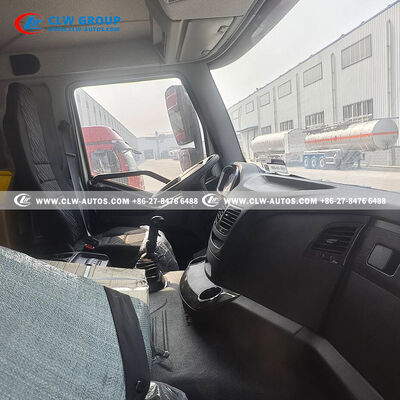

Cabin	Steering wheel \| Left hand drive or right hand drive
Configuration	With air conditioning, Steering power, Central locking, Electric door and window
Engine	Engine brand: WP10.350E32, 6 Cylinder, Horsepower: 350HP, Emission standard: Diesel, EuroⅡ
Transmission	Manual, FAST 9JS119, 9 Forward & 1 Reverse
Tire	315/80R22.5, 10 Pieces with 1 Spare
Front axle loading	6500kg
Rear axle loading	11500kg

Upper Structure Parameters

Fuel tank capacity	24m3/24,000liters
Tank material	Carbon steel/ Stainless carbon/ Aluminum alloy
Compartment No.	7 Compartments, compartment no. can be customized
Fuel dispenser	2 sets, flow rate at 70L/min, English operation panel, Showing unit price/ filling volume/ total price
Oil pump	2 Nos of 2.5'' Oil pumps, driven by TPO, Independent pump in and pump out for each compartment
Filling hose	1 inch and 15 meters, 2 sets for diesel and petrol separately
Filling hose reel	2 Nos
Manhole cover	API manhole
Safety feature	Breather Valve+Emergency cut-off Valve
Operation compartment	Located at rear of truck with aluminum alloy door

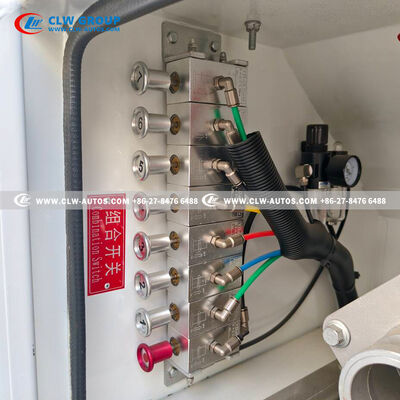

Control system	Power on/off, Lighting, Fuel pump on/off, Fuel dispenser on/off, Main valve on/off, Fuel level digital display
Others	2 sets of 4kg extinguishers, 1 set of static belt
Painting	Color and design as customer's requirement
