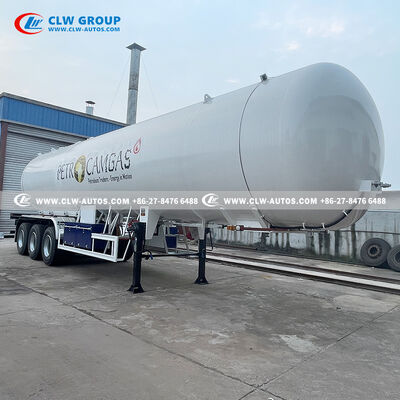

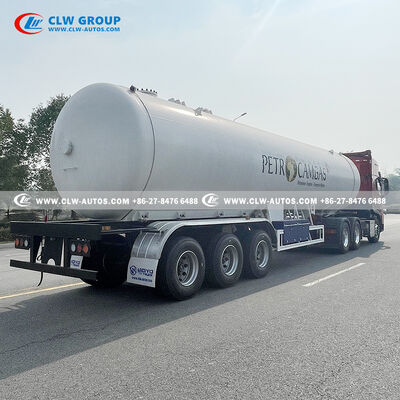

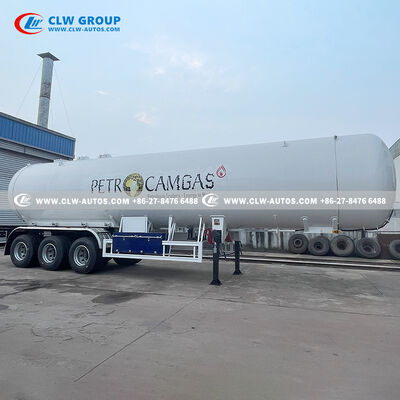

25 Ton Capacity LPG Tank Trailer with Q345R Steel Construction and Tri-Axle Heavy-Duty Chassis

Name: 25 Ton Capacity LPG Tank Trailer with Q345R Steel Construction and Tri-Axle Heavy-Duty Chassis
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 125660 USD
Availability: InStock

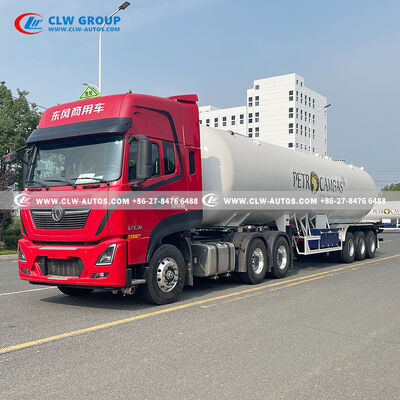

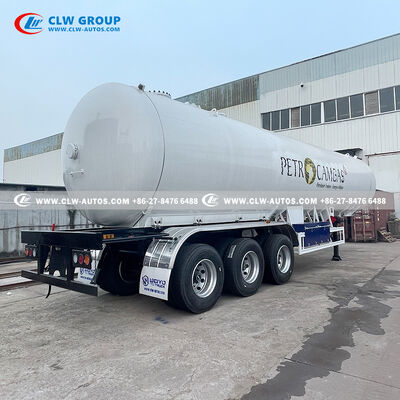

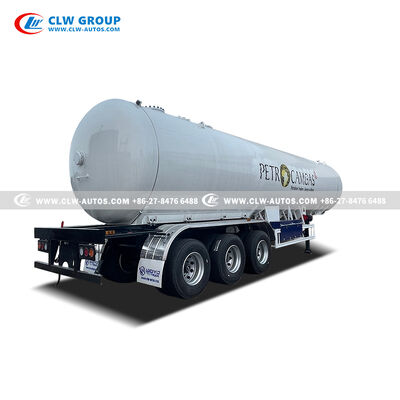

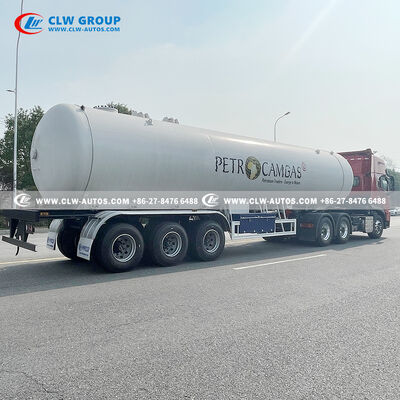

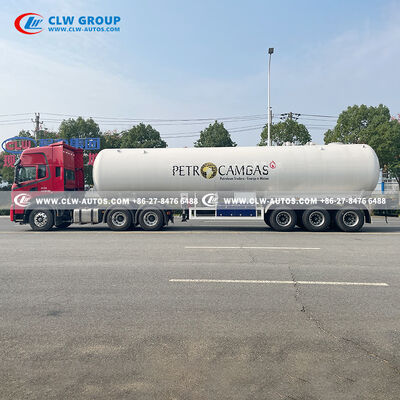

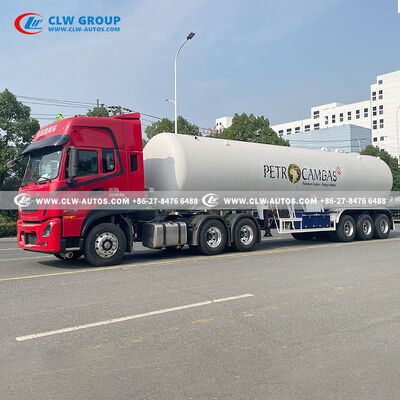

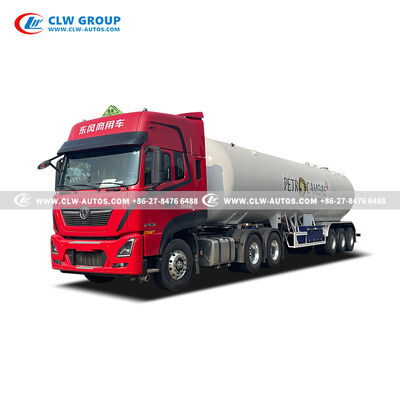

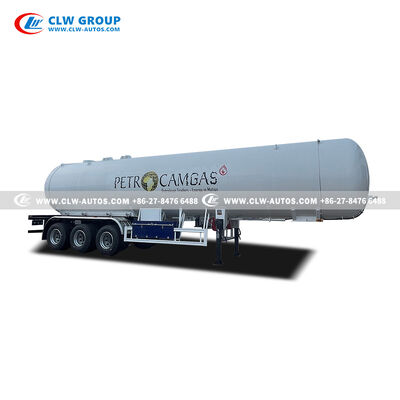

Large Image : 25 Ton Capacity LPG Tank Trailer with Q345R Steel Construction and Tri-Axle Heavy-Duty Chassis

Product Details:

Contact Now

Detailed Product Description

Highlight:

25 Ton Capacity LPG Tank Trailer

Q345R Steel Construction Propane Transport Trailer

Tri-Axle Heavy-Duty Chassis LPG Semi Trailer

25 Ton LPG Tank Trailer | Built for Safety. Engineered for the Long Haul.

Move LPG with confidence. CLW Group's 3-axle 25-ton LPG tank semi-trailer delivers exceptional strength, precision safety systems, and reliable performance for energy logistics. Built with high-grade pressure vessel steel and backed by 20+ years of specialized manufacturing expertise, it's the trusted choice for gas distributors and industrial operators.

Overview

Transporting liquefied petroleum gas demands equipment that never compromises on safety or reliability. The CLW 25 Ton LPG Tank Trailer is engineered to meet that challenge head-on. Designed with a tri-axle heavy-duty chassis, a robust Q345R steel tank, and fully integrated monitoring systems, this semi-trailer ensures your valuable cargo reaches its destination safely—whether you're supplying industrial plants, refilling residential gas tanks, or managing long-distance distribution.

Key Features

Tough Enough for 25 Tons: Built with a 12mm thick steel shell and 14mm thick heads, this tank is designed to handle high-pressure LPG loads day after day without compromising structural integrity.
Safety-First Engineering: From emergency shut-off valves to pressure relief devices and temperature monitoring, every safety feature is included to meet stringent GB Standards and protect your operations.
Stable, Heavy-Duty Ride: Equipped with Fuwa 13-ton axles, Jost components, and 12R22.5 tires, this tri-axle trailer delivers rock-solid stability, even on long hauls or rough terrain.
Real-Time Load Visibility: A float-type level gauge gives you instant, accurate readings of LPG volume, helping you manage loads precisely and avoid overfilling.
Fast, Leak-Free Transfer: The integrated pipeline system with quick-connect fittings and emergency cut-off valves ensures fast loading/unloading while minimizing risk.

Optional Add-Ons

Customize your trailer with precision metering and pumping systems:

Pumps: Choose a reliable Chinese LPG vane pump or upgrade to a premium Corken (US) pump for enhanced flow performance.
Meters: Add a volume flow meter for standard measurement or a Coriolis mass flow meter for high-accuracy custody transfer and commercial billing.

Ideal Applications

Gas Distributors: Streamline bulk LPG transport from terminals to cylinder filling stations and regional depots.
Industrial Operations: Deliver reliable fuel supply to factories, power plants, and commercial heating systems.
Rural Energy Suppliers: Support off-grid communities with consistent LPG for cooking and heating.
Emergency Response Teams: Provide critical fuel resupply in disaster zones or areas with disrupted energy infrastructure.
Petrochemical Logistics: Integrate into supply chains as a dependable link between production, storage, and end-users.

Technical Specifications

Tanker Essential Information

Volume of Tank (cbm)	49.6
Overall Dimensions (LWH) (mm)	1270024803800
Tank Dimensions (Inner DiameterthicknessLength)	23001212351
Estimated Tare Weight (kg)	15550
Payload (kg)	23000
Total Weight (kg)	38650
Wheelbase (mm)	6800+1310+1310

Shell of Tanker

Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature (°C)	-19°C~50°C
Design Pressure (MPa)	1.61
Corrosion Allowance (mm)	1
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body: Q345R, 12mm End plate: Q345R, 14mm, double ellipse Main beam: 16Mn

Detection & Testing

Heat Treatment	Overall treatment in a furnace, 600°C to 640°C
Flaw Detection	100% Flaw detection
Hydraulic Test (MPa)	2.21

Safety Systems

Manhole	1; on top, DN450
Safety Valve Quantity	2
Safety Valve Location	On the top of tanker
Safety Valve Size	DN50 or As Customer's Requirement
Safety Valve Type	Manual rotation type
Safety Valve Location	At the rear of the end plate

Running System
