55m³ Aluminum Bulk Feed Semi-Trailer with High-Speed Hydraulic Discharge for Efficient Agricultural Logistics

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

55m³ Aluminum Bulk Feed Semi-Trailer with High-Speed Hydraulic Discharge for Efficient Agricultural Logistics

Detailed Product Description
Highlight:

55m³ Capacity Bulk Feed Semi-Trailer

,

High-Speed Hydraulic Discharge Agricultural Logistics Trailer

,

Lightweight Aluminum Construction Feed Transport Trailer

3-Axle 55m³ Aluminum Bulk Feed Semi-Trailer
Revolutionize your agricultural logistics with the 55m³ Aluminum Bulk Feed Semi-Trailer, a high-capacity transport solution designed for feed mills, farms, and distribution operations. Featuring a lightweight aluminum tank, five independent compartments, and a hydraulic discharge system with 750 kg/min unloading speed, this trailer delivers efficiency, versatility, and reliability for bulk feed and grain transport.
Overview

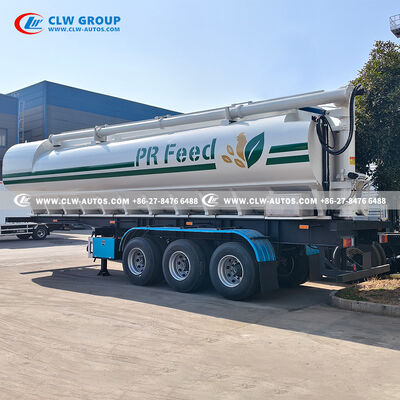

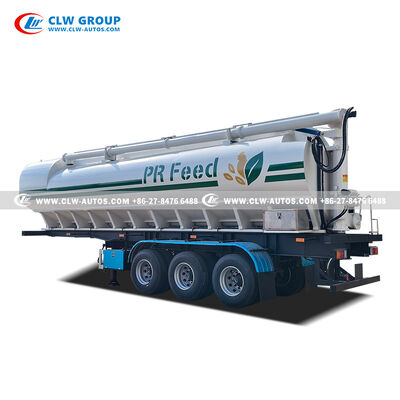

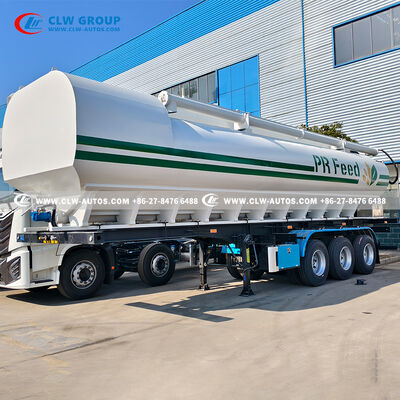

The 55m³ Aluminum Bulk Feed Semi-Trailer is engineered to meet the demanding needs of modern agricultural supply chains. The lightweight aluminum alloy tank provides exceptional payload capacity while maintaining structural integrity. Five independent compartments allow operators to transport multiple feed formulations in a single trip, significantly improving route efficiency. The hydraulic discharge system features a top auger that lifts to 7.5 meters and rotates 180 degrees, enabling precise positioning for unloading into silos or storage bins. With unloading speeds up to 750 kg/min and residual material under 0.22 tons, this trailer minimizes turnaround time and product waste. Built on a robust triple-axle chassis with FUWA axles and ABS braking, it delivers stable, reliable performance across diverse road conditions.
Key Features

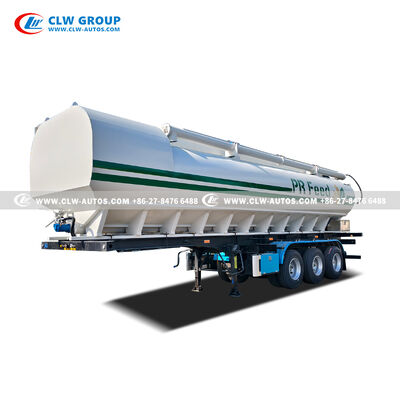

  • Lightweight Aluminum Construction: High-strength aluminum alloy tank maximizes payload capacity while resisting corrosion. The unique elliptical top and square body design combines strength with efficient material flow.
  • 55m³ Capacity with 5 Independent Compartments: Transport multiple feed types in a single journey. Independent discharge control allows selective unloading, reducing handling costs and improving delivery flexibility.

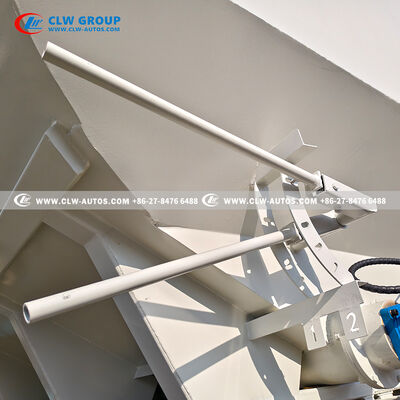

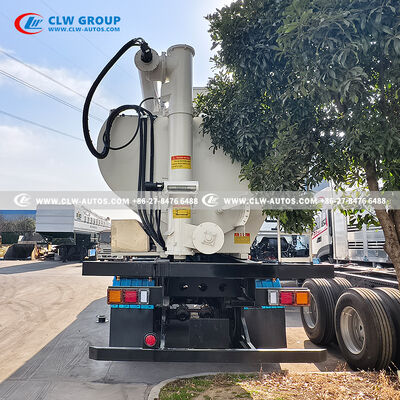

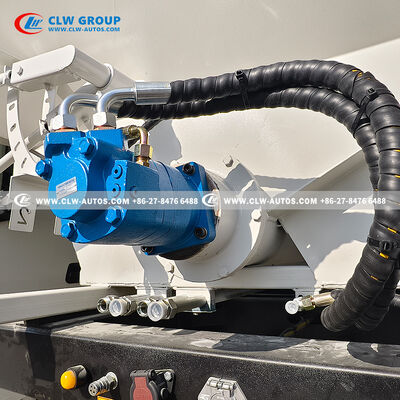

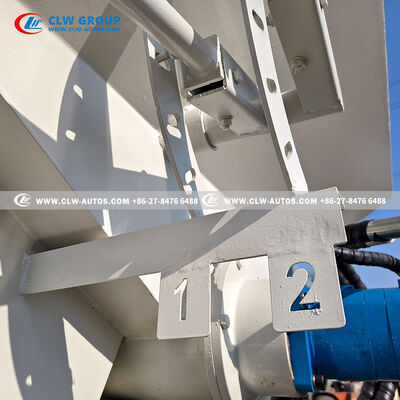

  • High-Speed Hydraulic Discharge: Powered by a hydraulic pump and motor system driving three augers. The top auger lifts to 7.5m and rotates 180° for flexible positioning. Unloading speeds of 650-750 kg/min ensure rapid turnaround.

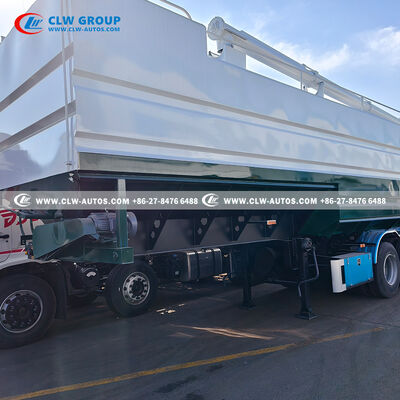

  • Robust Chassis Construction: High-tensile steel chassis with 960mm wide main beam and 6mm thick web longitudinal girders. Engineered for exceptional anti-bending and deformation resistance.

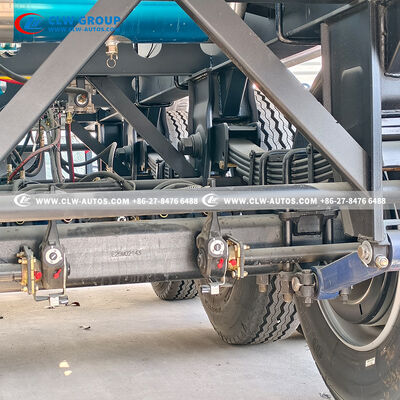

  • Reliable Running Gear: 3 x 13-ton FUWA axles with ABS, low-pressure alarms, and automatic slack adjusters. 10+13 leaf spring suspension provides stability and cargo protection on varied terrain.
  • Low Residue Design: High-performance auger blades ensure complete discharge with less than 0.22 tons of residual material, minimizing waste and simplifying cleaning.

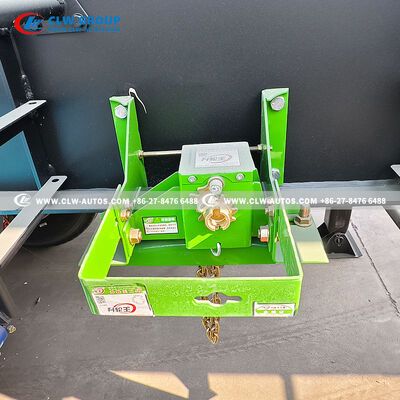

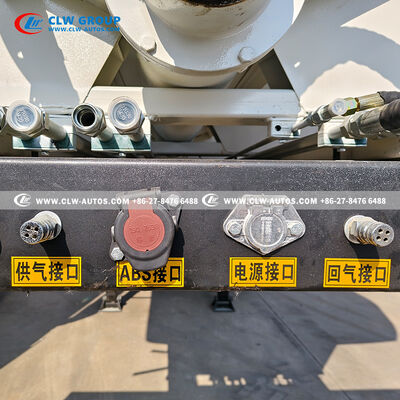

  • Operator-Friendly Features: Curbside catwalk and rear ladder for safe access. Large capacity waterproof tool box for equipment storage. Centralized utility hub for standardized tractor coupling.
Applications
  • Feed mills and production facilities
  • Large-scale agricultural farms and livestock operations
  • Export terminals requiring rapid loading/unloading
  • Agricultural logistics and distribution companies
  • Grain storage and handling facilities
Specifications
Overall Dimensions 13,000 x 2,550 x 3,995 mm
Volume 55 m³
Payload 30 - 33 tons
Tank Material Aluminum alloy
Compartments 5 independent
Discharge System Hydraulic top auger, 7.5m lift, 180° rotation
Unloading Speed 650 - 750 kg/min
Residual Material < 0.22 tons
Axles 3 x 13-ton FUWA with ABS
Suspension 10+13 leaf spring
Brakes ABS, low-pressure alarm, automatic slack adjusters

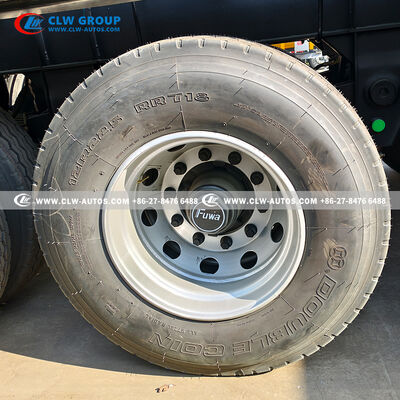

Tires 12R22.5
Tool Box Large capacity, waterproof, detachable
