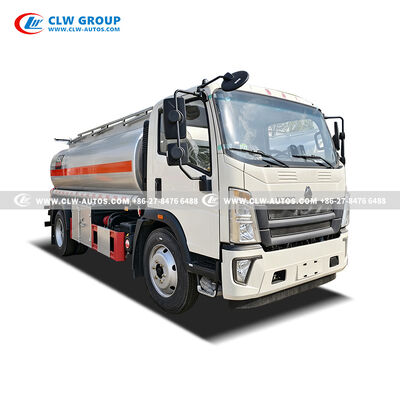

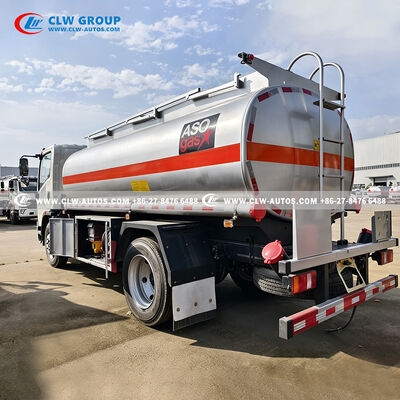

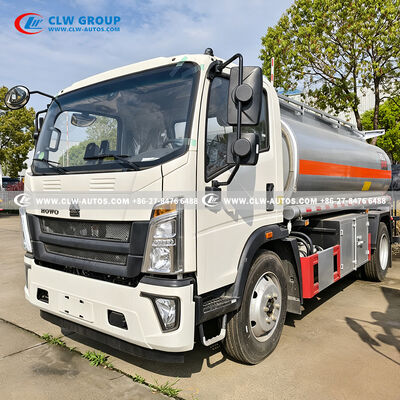

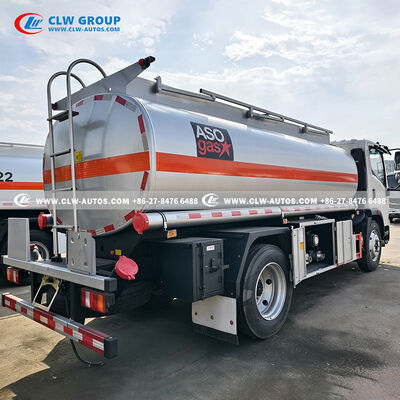

HOWO 10,000L Mobile Refueling Truck Aluminum Alloy Fuel Tanker Truck With Flow Meter

Large Image : HOWO 10,000L Mobile Refueling Truck Aluminum Alloy Fuel Tanker Truck With Flow Meter

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	fuel refueling truck

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20000
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Drive Type:	4x2
Tire Specification:	9R22.5	Tank Volume:	10,000 Liters (10m³)
Tank Material:	High-tensile Carbon Steel (Q235)	Flow Meter Model:	M-50-NX-1
Flow Range:	55 - 550 L/min	Max Pressure:	1000 KPa (10 Bar)
Volume Per Rev:	0.681 L	Operating Temperature:	-30°C To +70°C
Hose Length:	15m-20m
Highlight:	HOWO 10 000L fuel tanker truck , aluminum alloy refueling truck with flow meter , mobile fuel delivery truck with warranty

HOWO 4X2 10,000L Aluminum Alloy Refuelling Truck With Flow Meter

SINOTRUK HOWO 10,000L Mobile Refueling Truck

Efficiency, Reliability, and Precision on Wheels

Our 10m³ Fuel Tanker Truck is engineered to perform in the toughest environments, from construction sites to remote mining operations. Built on the world-renowned SINOTRUK HOWO chassis, this vehicle combines high-capacity transport with high-precision dispensing.

Technical Specifications

Category	Feature	Specifications
Chassis	Brand / Model	SINOTRUK HOWO
	Drive Type	4x2
	Tire Specification	9R22.5
	Emission Control	AdBlue System (Euro V / VI Compatible)
	Steering	Power-assisted (LHD/RHD optional)
Tank Body	Nominal Volume	10,000 Liters (10m³)
	Material	High-tensile carbon steel (Q235)
	Safety Device	Pneumatic emergency shut-off foot valve

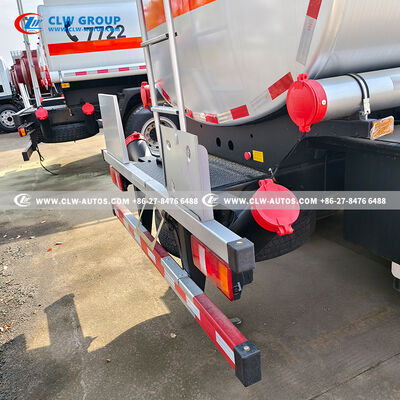

Accessories	Rear-mounted ladder, anti-slip walkway, foldable handrails

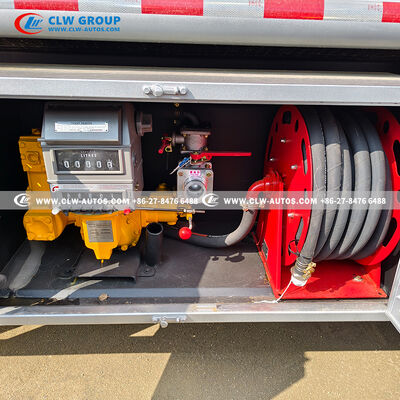

Dispensing System	Flow Meter Model	M-50-NX-1 (High-Precision)
	Flow Range	55 - 550 L/min
	Max. Pressure	1000 kPa (10 bar)
	Volume Per Rev	0.681 L
	Operating Temp	-30°C to +70°C
	Recording	Integrated Ticket Printer & Digital Display
	Hose Reel	Automatic heavy-duty reel (15m-20m hose)
Pump & Pipeline	Pump Type	High-flow self-priming centrifugal pump (PTO driven)
	Inlet/Outlet	Standard pump-in & pump-out quick couplings
	Control Box	Side-mounted protective cabinet with pneumatic controls

Key Features

Powerful Performance: Equipped with a robust SINOTRUK HOWO chassis and high-performance tires (9R22.5), ensuring stability and durability across various terrains.
High-Capacity Tank: The 10,000-liter (10m³) high-quality tank is designed for maximum payload efficiency while adhering to strict safety standards.
Advanced Dispensing System:
- Features a high-accuracy M-50-NX-1 flow meter with a flow range of 55-550L/min
- Integrated ticket printer for transparent and easy transaction tracking
- Heavy-duty automatic hose reel for effortless and flexible refueling
Safety & Compliance: Comes with a pneumatic emergency shut-off system and high-standard pump inlet/outlet configurations to ensure zero-leakage operations.
Eco-Friendly Tech: Integrated with an AdBlue system to meet modern emission standards, reducing environmental impact without compromising power.
Ergonomic Cabin: A spacious, driver-centric interior designed for comfort during long working hours.
