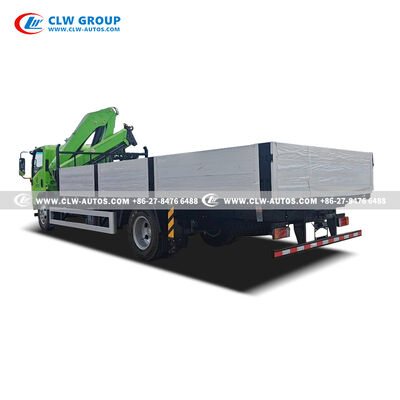

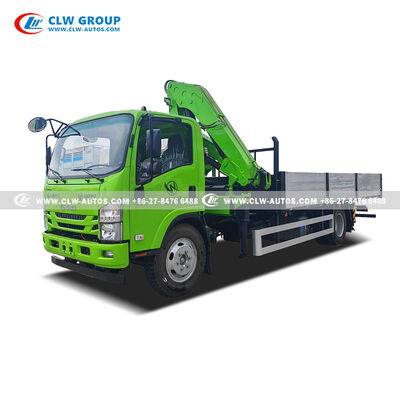

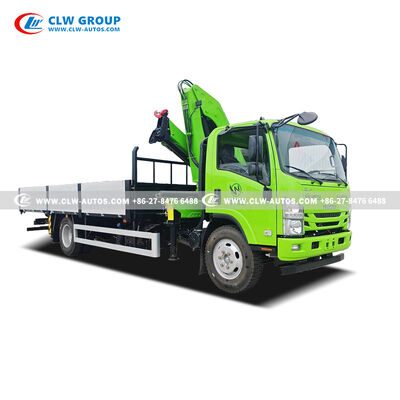

ISUZU 700P 5-Ton Crane Truck with Aluminum Alloy Cargo Box, Liquid Fuel Engine Heating & 10-Ton Tow Hook for Russian Market

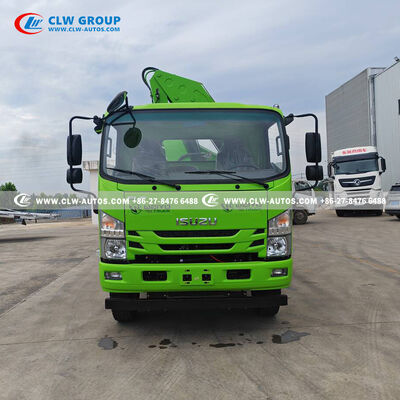

The ISUZU 700P Crane Truck is a purpose-built integrated lifting, transport, and towing vehicle specifically tailored for Russia's demanding climate and infrastructure needs. Built on the reliable ISUZU 700P 4x2 chassis with a 5,200mm wheelbase and wide cab (LHD with A/C), this vehicle features an ISUZU 4HK1-TCG60 diesel engine delivering 205HP (5,193ml, Euro VI) with a 6-speed manual transmission.

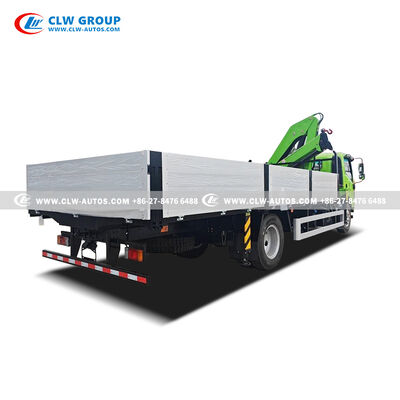

The Chengli SQZ105 knuckle boom crane delivers 2,500kg effective lifting capacity at 2.5m with 100 kN*m lifting moment, 11m maximum working radius, and 9m lifting height. The 6.2m European-style aluminum alloy cargo box significantly reduces curb weight compared to steel bodies, enhancing payload capacity (8 tons) while offering superior corrosion resistance.

The liquid fuel engine heating system ensures reliable cold start at -50°C with multi-purpose capability supplying cabin heating and crane hydraulic warmth. The 68mm standard U-type coupling tow hook (10-ton rating with 25% overload reserve) enables towing of Russian small full trailers.

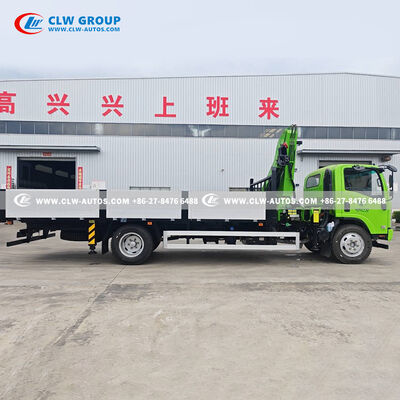

• ISUZU 700P 4x2 Chassis: 5,200mm wheelbase, wide cab LHD with A/C. GVW 11,000kg, curb 4,495kg. 235/75R17.5 tires (6+1 spare). 220L fuel tank.
• ISUZU 205HP Euro VI Engine: 4HK1-TCG60, 205HP, 5,193ml. 6-speed manual transmission (6F+1R). Strong torque for driving and hydraulic lifting.

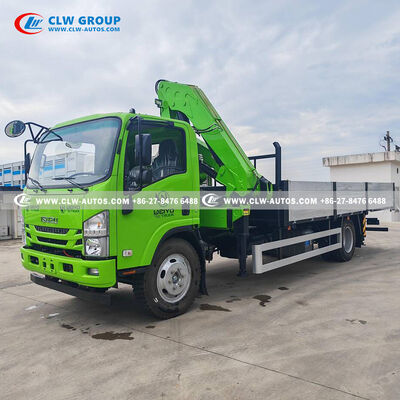

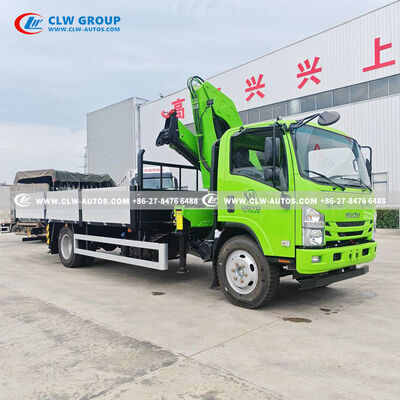

• Chengli 5-Ton Knuckle Boom Crane: 2,500kg @ 2.5m. 100 kN*m moment. 11m radius. 9m height. 360° rotation. H-shape legs. 1 main + 2 extendable booms.

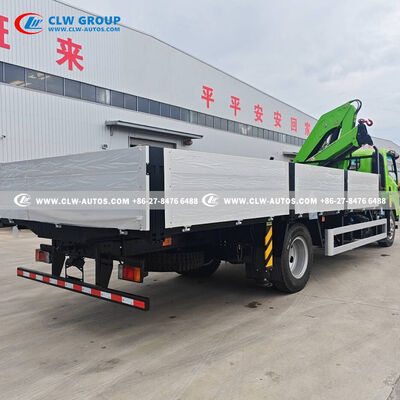

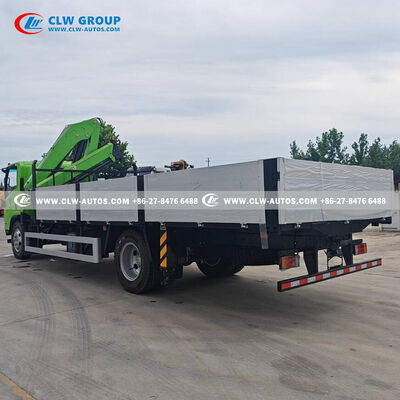

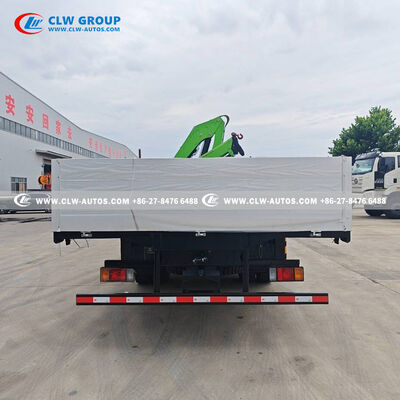

• 6.2m Aluminum Alloy Cargo Box: 6,200*2,300*550mm. European-style, lightweight, corrosion-resistant. Bottom 5mm / Side 3mm. 8-ton loading capacity.

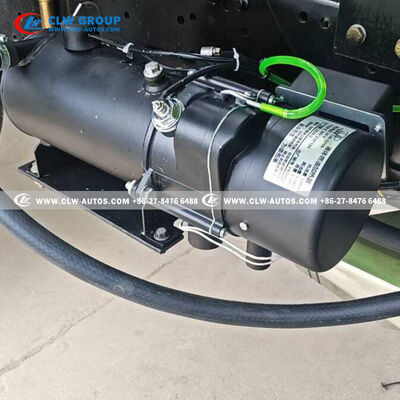

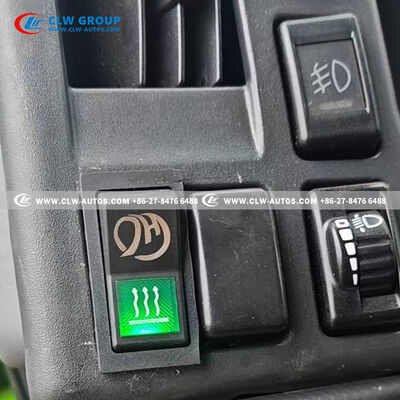

• Liquid Fuel Engine Heating: -50°C cold start. Cabin heating + crane hydraulic warmth. Anti-corrosion, low-temperature resistant piping.

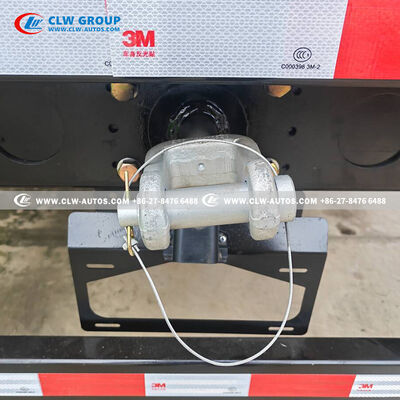

• 68mm U-Type 10-Ton Tow Hook: Standard for Russian small full trailers. One-piece cast steel, 25% overload reserve. Dual-safety lock pin + wire lanyard. Hot-dip galvanized anti-corrosion.

• Construction material handling and equipment positioning
• Logistics and cargo transport with self-loading/unloading
• Municipal engineering and infrastructure projects
• Towing of small full trailers (freight, construction, forestry)
• Sub-zero Russian climate operations (-50°C)
• Building material transport (pipes, steel, lumber)
