15m³ CNG Vacuum Sewage Suction Truck with Jurop Vacuum Pump for Municipal Sewer Dredging

Large Image : 15m³ CNG Vacuum Sewage Suction Truck with Jurop Vacuum Pump for Municipal Sewer Dredging

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	HOWO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20000
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Tank Capacity:	15 Cubic Meters (15,000 Liters)
Tank Material:	Q235 Carbon Steel	Plate Thickness:	6mm Tank Shell, 6mm Dished Heads
Vacuum Pump Model:	Jurop PN106D	Pump Airflow:	11,000 L/min
Max Vacuum:	92%	Max Speed:	1,300 RPM
CNG Cylinder Volume:	2600L	Working Pressure:	20MPa
Continuous Operation:	21+ Hours Non-stop Stationary Vacuum Pumping

15m³ HOWO CNG Vacuum Sewage Suction Truck

Product Overview

This eco-friendly CNG-powered vacuum sewage suction truck is built on SINOTRUK HOWO NX420 chassis, equipped with a 15m³ heavy-duty carbon steel sewage tank and imported Italian Jurop vacuum pump. It delivers strong suction capacity, supports long-hour continuous operation, and features complete hydraulic lifting, multi-layer safety protection and full set of sanitation auxiliary fittings. Widely applied in municipal sewer dredging, septic tank cleaning, sludge collection, industrial waste liquid transportation and community environmental sanitation. Strict full penetration welding, automotive baking paint and standardized inspection ensure zero rework rate and reliable export quality.

Technical Specifications

Category	Item	Technical Specification
Tank Body	Total Tank Capacity	15 Cubic Meters (15,000 Liters)
	Tank Material	Q235 Carbon Steel
	Plate Thickness	6mm Tank Shell, 6mm Dished Heads
	Welding Standard	100% Full-Penetration Welds; Valve welds flush ground; hard-to-polish welds filled with putty before painting
	Surface Treatment	Full tank sandblasting + automotive baking paint; all accessories primed first then assembled
	Rear Tailgate	Hydraulic lifting large rear cover, locked by 8 heavy-duty manual clamping wing bolts
Tank Fittings	Suction Inlet	DN100 Stainless Steel Valve on rear head, with quick Kamlock coupling; internal steel buffer deflector plate installed
	Discharge Outlet	DN150 Stainless Steel Ball Valve with stainless steel chute on rear dished head
	Liquid Level Indicator	3 Vertical Spherical Sight Glass Level Gauges
Vacuum Pump System	Vacuum Pump Model	Jurop PN106D, 100% Original Imported from Italy, CE Certified
	Pump Performance	Airflow: 11,000 L/min, Max Vacuum: 92%, Max Speed: 1,300 RPM
	Continuous Operation	21+ hours non-stop stationary vacuum pumping via PTO
	Protection Devices	Oil-Gas Separator, Water-Gas Separator, Secondary Dual Overfill Shut-off System
	Vacuum Gauge	Glycerin-Filled Anti-Vibration Bilingual Vacuum Gauge
Hydraulic System	Hydraulic Piping	Full vehicle heavy-duty galvanized rigid hard pipes

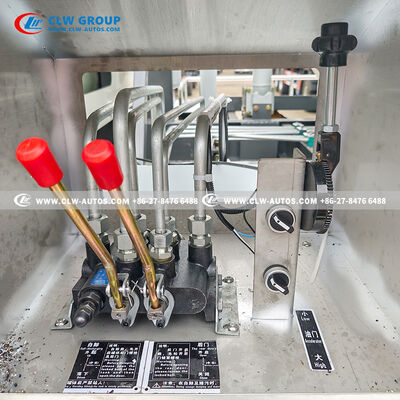

	Control Box	Dual-Spool Hydraulic Control Box with external mechanical high/low throttle lever
	Tank Lifting	Hydraulic cylinder tipping & lifting design for complete tank emptying
CNG Power System	Cylinder Layout	Rear-mounted CNG cylinder group, total water volume 2600L, nominal working pressure 20MPa
	Executive Standard	GB/T19233-2022
	Maintenance Torque Standard	Flange nuts:70Nm; Self-locking nuts:80Nm; Retighten strap bolts every 5,000km
	CNG Control Cabinet	OMB charging valve, NGV filling valve, pressure gauge integrated
Safety & Working Structure	Tank Top Platform	Anti-slip working deck, fixed with galvanized U-bolts (pre-welded ear plates)
	Safety Guards	Aluminum side anti-collision guards, stainless steel ladder & handrails
	Lighting & Warning	Dual LED arrow boards, rotating amber beacon, LED matrix work spotlight for night shift
	Side Fittings	20L hand-washing water tank, bilateral maintenance operation platforms, diamond-shaped advertising billboards
Quality Control	Inspection Rule	Unified finished vehicle acceptance standard to minimize rework; all feasible positions adopt full penetration welding

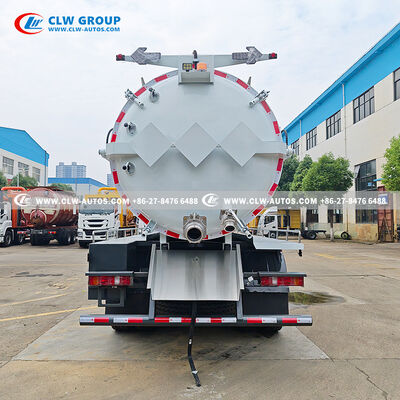

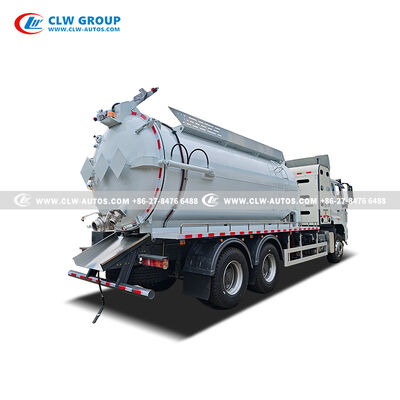

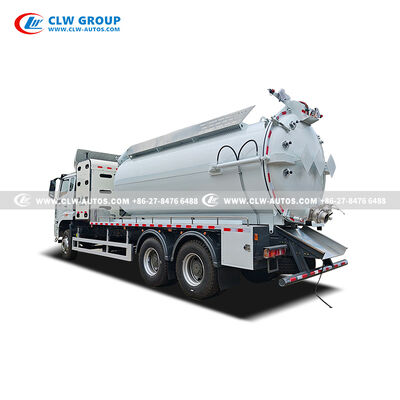

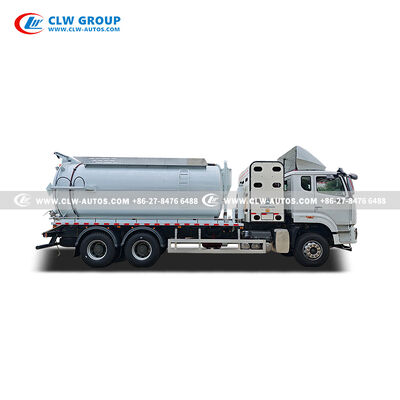

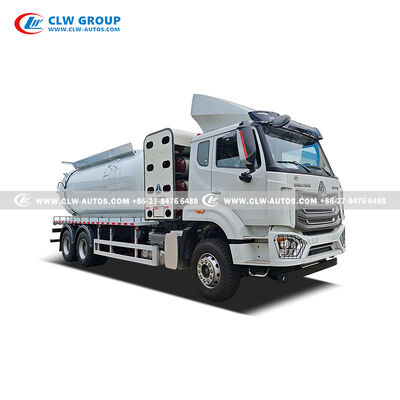

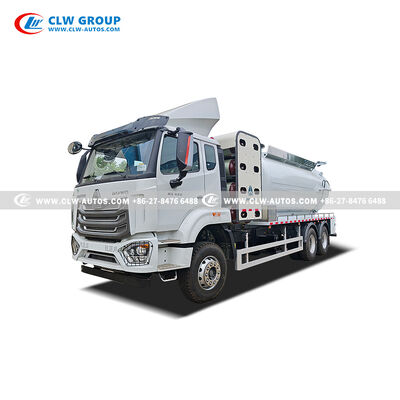

Product Images

Core Product Advantages

CNG Natural Gas Power Supply: Low fuel consumption, low exhaust emission, low daily operation cost, green and environment-friendly sanitation vehicle.
Italy Original Jurop Vacuum Pump: Powerful suction, stable performance, support over 21 hours continuous pumping, long service life and low failure rate.
Heavy-Duty Thickened Carbon Steel Tank: 6mm thick Q235 steel plate, full penetration welding, anti-leakage, anti-corrosion after sandblasting baking paint.
Complete Multi-Layer Safety Protection: Dual overfill prevention system, oil & water gas separators, anti-slip platform, full set of warning lights to avoid equipment damage and safety accidents.
Full Hydraulic Function Configuration: Adjustable high/low speed throttle, hydraulic tank tipping lifting design, convenient for sludge and sewage unloading.
Exquisite Manufacturing Craft: All weld seams polished flat; small parts primed separately before assembly; neat overall layout, durable anti-rust pipeline.
Full Set Auxiliary Equipment: Hand washing tank, maintenance platform, advertising billboard, meeting all daily sanitation operation demands.

Application Scenarios

Municipal sewer dredging, septic tank waste suction, farm manure transportation, industrial waste liquid collection, underground sewage well cleaning, residential community sanitation service, factory park sewage treatment, etc.
