Sinotruk HOWO RHD 10m³ Carbon Steel Tank Sewage Suction Truck with Yuchai 160HP Euro II Engine and Yifeng SK-12 Water Ring Vacuum Pump

Detailed Product Description
Wheelbase: 4,200 Mm Engine Power: 160 HP
Tank Capacity: 10 M³ (10,000 L) Tank Material: Carbon Steel, 6mm
Vacuum Pump Flow: 720 M³/h Suction Depth: 9 - 10 Meters
Front Axle: 3,200 Kg Rear Axle: 8,000 Kg
Tires: 8.25R20 16PR (6 + 1 Spare) Fuel Tank: 220L Steel
Highlight:

10m³ Carbon Steel Tank Sewage Suction Truck

,

Yuchai 160HP Euro II Engine Vacuum Tanker

,

Yifeng SK-12 Water Ring Vacuum Pump Vacuum Suction Truck

Sinotruk HOWO RHD 4x2 10m³ Sewage Suction Truck – Vacuum Tanker for Guyana & Commonwealth RHD Markets
Product Overview

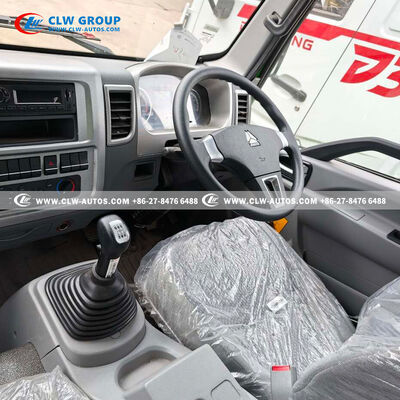

The Sinotruk HOWO RHD Sewage Suction Truck is a purpose-built heavy-duty vacuum tanker specially customized for Guyana and other Commonwealth right-hand traffic nations. Built on the reliable HOWO 4x2 light-duty chassis with HOWO 2080 RHD cab (short crew cab, half row, small sleeper berth, A/C), this vehicle features a Yuchai YC4E160-33 diesel engine delivering 160HP with Euro II compliance, paired with an HW90510C2 10-speed manual transmission.

The 10,000-liter carbon steel tank features 6mm thickness, internal anti-rust coating, and full electrophoretic coating. The Yifeng SK-12 water ring vacuum pump (720m³/h, 9-10m suction) is ideal for tropical climates. Hydraulic discharge system, comprehensive safety features, and 8m suction hose included.

Key Features
  • HOWO 4x2 RHD Chassis: 4,200mm wheelbase, 2080 RHD cab with sleeper and A/C. Front axle 3.2T, rear axle 8T. 8.25R20 16PR tires (6+1 spare). 220L fuel tank. Fully compliant with Guyana RHD traffic regulations.
  • Yuchai 160HP Euro II Engine: YC4E160-33, 160HP. HW90510C2 10-speed manual transmission (10F+2R). Exhaust brake for safety.
  • 10m³ Carbon Steel Tank: 10,000L capacity, 6mm thickness. Anti-rust coating + electrophoretic coating. Fully sealed pressure vessel design.

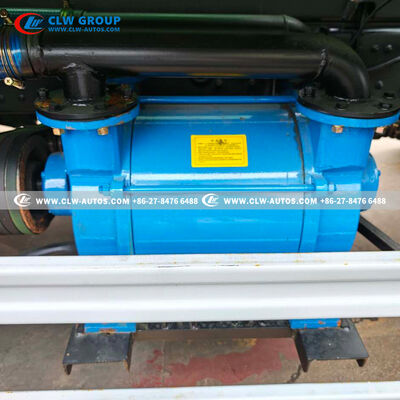

  • Yifeng SK-12 Water Ring Vacuum Pump: 720m³/h flow rate, 9-10m suction depth. Ideal for tropical climates.

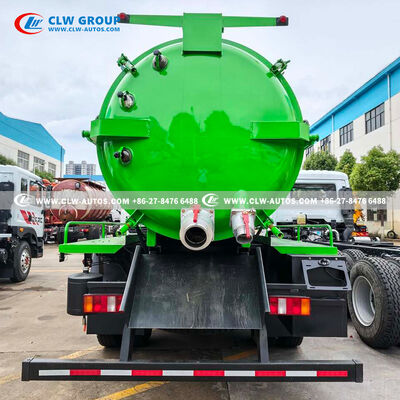

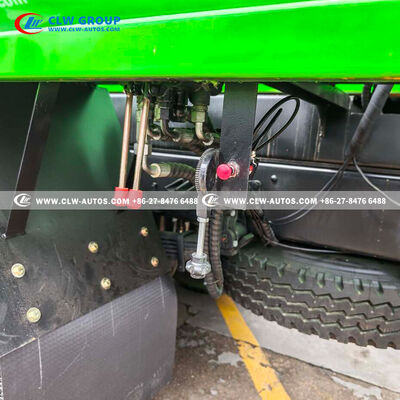

  • Hydraulic Discharge: Hydraulic tipping + rear cover opening. DN150 stainless steel rear drain valve. DN100 side suction valve.
  • Safety & Monitoring: Secondary anti-overflow valve. Vacuum pressure gauge. Sight glass for liquid level monitoring.
  • Standard Equipment: 8m C102 suction hose with couplings. Side working platforms, ladder, hand washing station.
  • Applications: Municipal sewer cleaning, septic tank servicing, industrial waste collection.
  • Target Markets: Guyana, Caribbean, South America, African Commonwealth RHD countries.
Applications
  • Municipal sewer cleaning and maintenance
  • Septic tank and cesspit servicing
  • Industrial sludge and wastewater collection
  • Environmental remediation and emergency response
  • Construction site dewatering
Specifications
Specification Details
Chassis Sinotruk HOWO 4x2 RHD
Wheelbase 4,200 mm

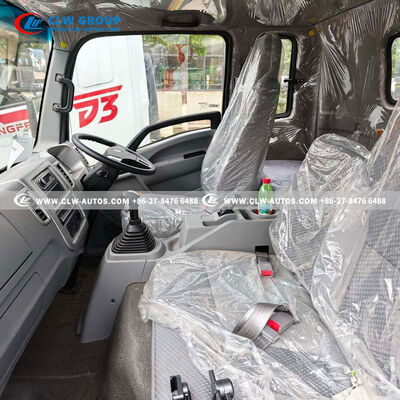

Cab HOWO 2080, RHD, sleeper, A/C
Engine Yuchai YC4E160-33, 160 HP, Euro II
Transmission HW90510C2, 10F+2R
Front Axle 3,200 kg
Rear Axle 8,000 kg
Tires 8.25R20 16PR (6 + 1 spare)
Fuel Tank 220L steel
Tank Capacity 10 m³ (10,000 L)
Tank Material Carbon steel, 6mm
Tank Treatment Anti-rust + electrophoretic coating
Vacuum Pump Yifeng SK-12 water ring, 720 m³/h
Suction Depth 9 - 10 meters
Discharge Hydraulic tipping, rear gravity
Safety Secondary anti-overflow valve, vacuum pressure gauge, sight glass
Standard Equipment 8m C102 suction hose, ladder, platforms, hand washing station
Target Markets Guyana, Caribbean, South America, African Commonwealth
Applications Municipal sewer, septic tank, industrial waste, environmental remediation

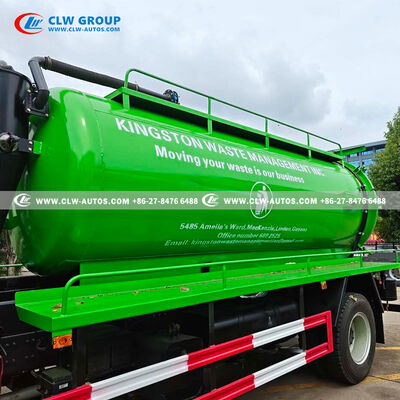

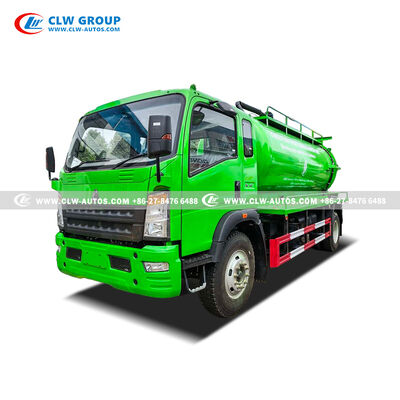

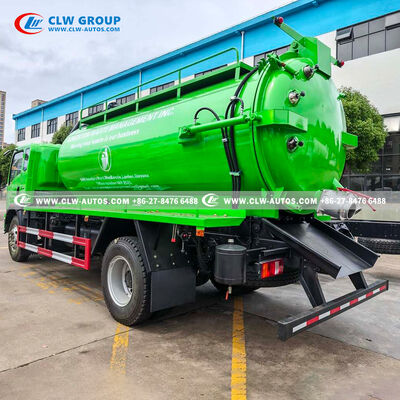

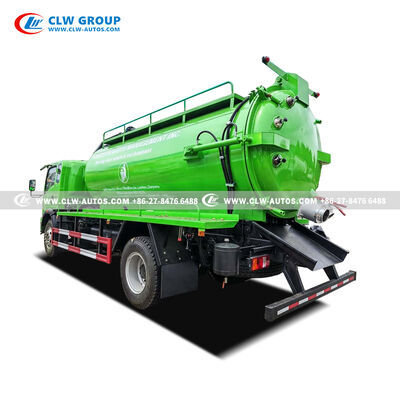

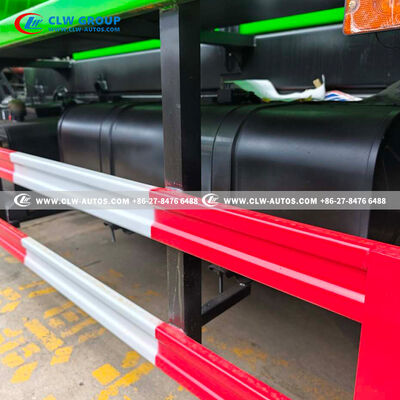

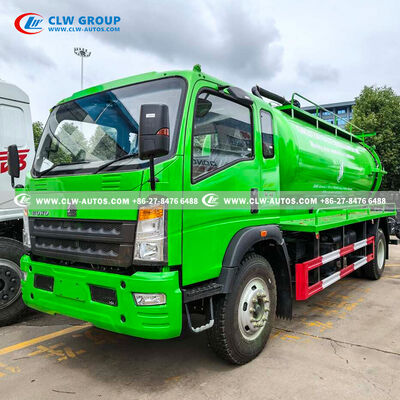

Product Gallery
