ISUZU 4x2 30-Meter Aerial Work Platform with 200kg Stainless Steel Bucket and Telescopic Manlift

Name: ISUZU 4x2 30-Meter Aerial Work Platform with 200kg Stainless Steel Bucket and Telescopic Manlift
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 19,885.00 USD
Availability: InStock

Large Image : ISUZU 4x2 30-Meter Aerial Work Platform with 200kg Stainless Steel Bucket and Telescopic Manlift

Product Details:

Contact Now

Detailed Product Description

Working Height:	30 M	Working Radius:	23 M
Boom Sections:	6-section	Platform Capacity:	200 Kg
Platform Size:	1,600 × 700 × 1,000 Mm	Platform Rotation:	360° Continuous
Engine Power:	120-205 HP	Max Speed:	100 Km/h
Outrigger Span:	5,300-5,600 Mm / 5,100-5,400 Mm	Wheelbase:	3,360 Mm
Highlight:	30-Meter Working Height Aerial Work Platform , 200kg Stainless Steel Bucket Telescopic Manlift , ISUZU 4x2 Chassis Aerial Lift Truck

ISUZU 4x2 30-Meter Straight Boom Aerial Work Platform – Telescopic Manlift with 200kg Stainless Steel Bucket

Product Overview

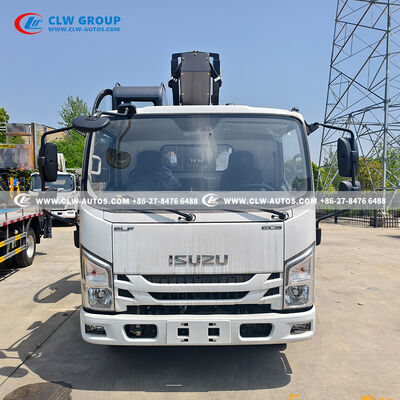

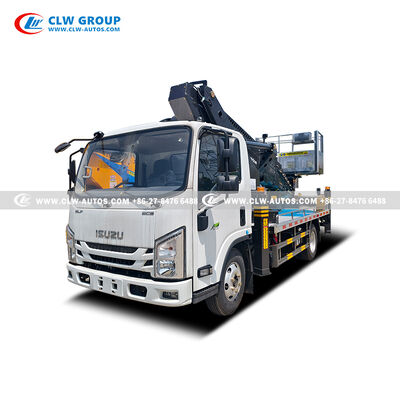

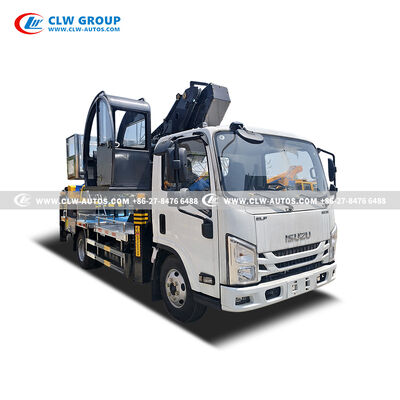

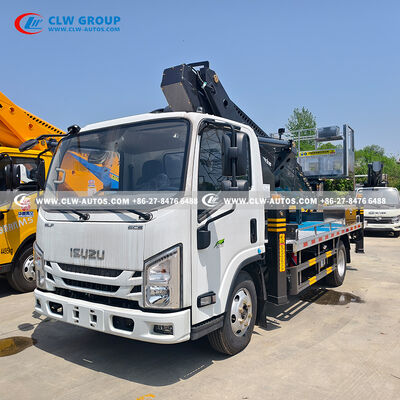

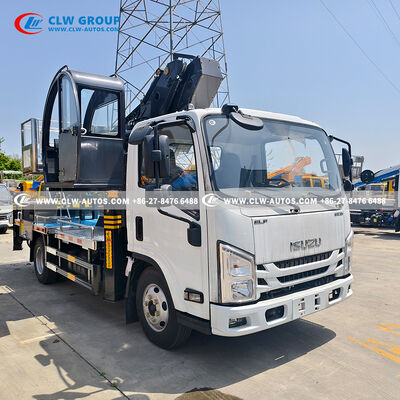

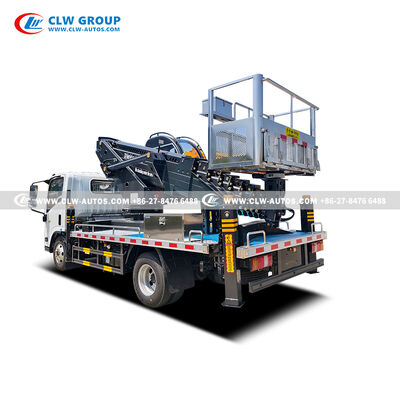

The ISUZU 4x2 Straight Boom Aerial Work Platform is a professional-grade high-altitude access vehicle designed for utility companies, municipal services, industrial facilities, and construction contractors requiring safe, reliable access at heights up to 30 meters. Built on the proven ISUZU 4x2 light-duty chassis with 3,360mm wheelbase and ISUZU cab (LHD/RHD with A/C), this vehicle features an ISUZU 4KH1CN6LB or 4HK1-TCG60 diesel engine with Euro VI compliance.

The 6-section 14-sided telescopic boom delivers 30m working height and 23m working radius. The 200kg stainless steel platform (1,600×700×1,000mm) features 360° rotation. The CAN bus control system with wireless remote enables precise operation. Front V / rear V hydraulic outriggers provide stable foundation. Four operation modes and comprehensive safety systems ensure operator protection.

Key Features

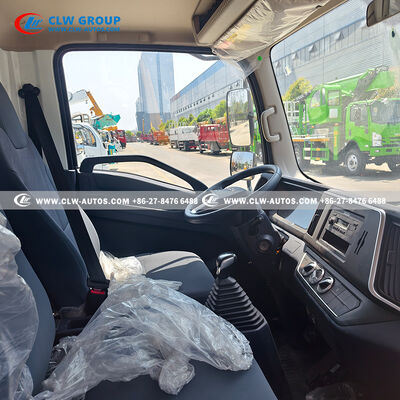

ISUZU 4x2 Chassis: 3,360mm wheelbase, ISUZU cab with LHD/RHD, A/C, 2-3 passengers. GVW 4,495-7,300kg. 7.00R16 tires (6+1 spare). Max speed 100 km/h
ISUZU 120-205HP Euro VI Engine: 4KH1CN6LB (120HP) / 4HK1-TCG60 (205HP). 5/6-speed manual transmission

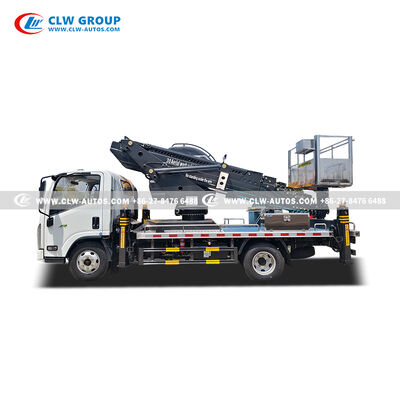

30-Meter 6-Section Telescopic Boom: 14-sided synchronized telescopic arm. High-strength alloy steel. Max working height 30m, max radius 23m

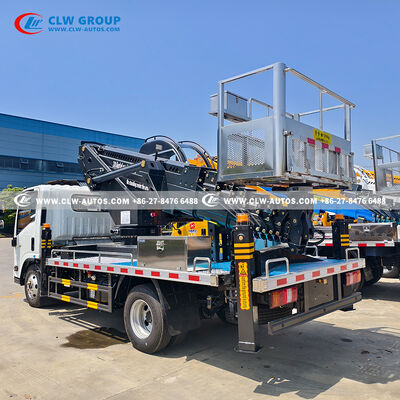

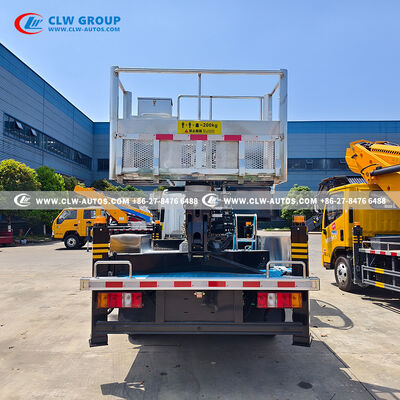

200kg Stainless Steel Work Platform: 1,600×700×1,000mm. Anti-slip floor. 360° continuous rotation

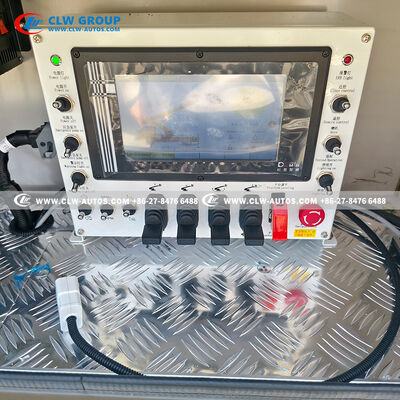

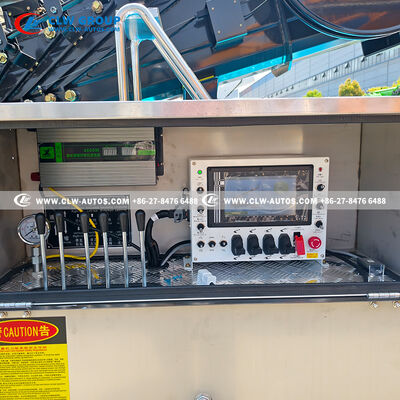

CAN Bus Control System: Wireless remote control. Stepless speed regulation. LCD display of boom status. Manual emergency backup

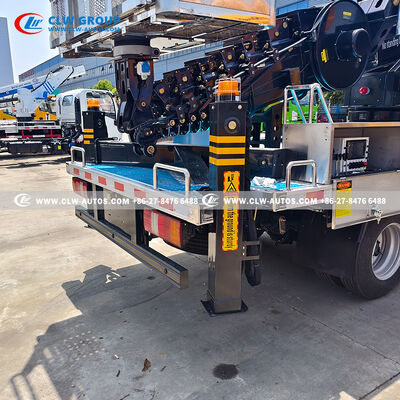

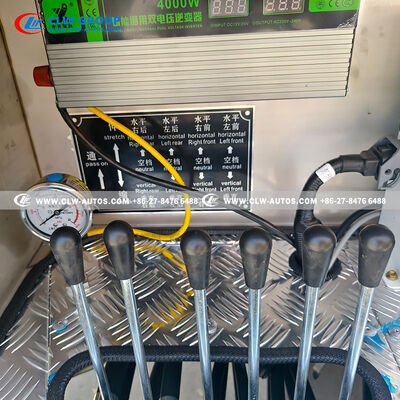

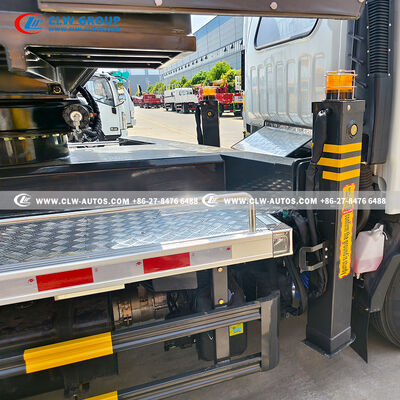

Front V / Rear V Outriggers: 5,300-5,600mm transverse span, 5,100-5,400mm longitudinal span. Hydraulic auto-leveling

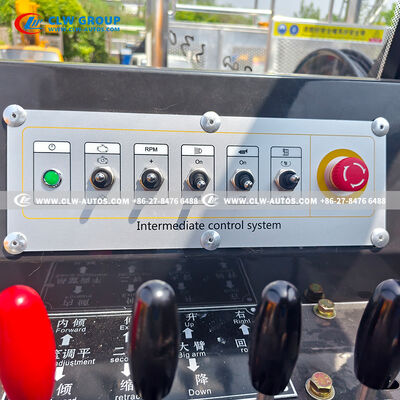

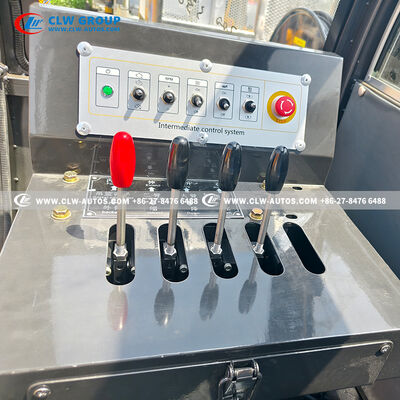

Four Operation Modes: Lower, middle, upper, and remote control
Safety Systems: Interlocks, overload protection, emergency pump, level gauge, imported valves

Applications

Electrical utility live-line maintenance
Street lighting and high-mast tower servicing
Telecommunications tower access
Building facade inspection and maintenance
Tree trimming and vegetation management
Signage and billboard installation
Industrial plant equipment access

Technical Specifications

Specification	Details
Chassis	ISUZU 4x2 (LHD/RHD)
Overall Size	5,995 × 2,050-2,100 × 2,990-3,200 mm
Wheelbase	3,360 mm
GVW / Curb	4,495 - 7,300 kg / 4,300 - 5,200 kg
Engine	ISUZU 120-205 HP, Euro VI
Transmission	5/6-speed manual
Tires	7.00R16 (6 + 1 spare)
Max Speed	100 km/h
Max Working Height	30 m
Max Working Radius	23 m
Boom Type	6-section 14-sided telescopic
Platform Size	1,600 × 700 × 1,000 mm
Platform Capacity	200 kg
Platform Rotation	360° continuous
Outrigger Span	5,300-5,600 mm / 5,100-5,400 mm
Control System	CAN bus with wireless remote
Applications	Electrical utility, street lighting, telecommunications, building maintenance, tree care
