Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Spare Parts Supply And Engineer Support | Tanker Volume: | 15CBM/15000Liters/7.5MT/7.5tons/8tons |
|---|---|---|---|
| Tank Material: | Q345R/SA516 | Loading Material: | Propane/Liquefied Petroleum Gas/LPG |
| Design Pressure: | 1.77MPa | Medium Density: | 20Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³ |
| Mechanical Property Test: | Tensile, Strength, Impact Test | Thickness Of Shell And Endplate: | 10mm |
| High Light: | propane storage tanks,large lpg storage tanks |
||
5mt lpg skid station 5tons 15cbm cylinder filling skid with dispenser machine
Product Description
5mt lpg skid station 5tons 15cbm cylinder filling skid with dispenser machine
1. Storage medium of lpg skid station : LPG, Liquid ammoina and Aether etc.
2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 15m³ LPG skid station.
3. Manufacturing standards of lpg skid station: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
4. Equipment of lpg skid station:cylinder filling scale(one or two units),digital lpg dispenser machine,ex-proof lpg pump and motor,lpg flow meter,pipeline,durable steel base...
Technical parameter of 5mt lpg skid station 5tons 15cbm cylinder filling skid with dispenser machine
| Volume of Tank(CBM/Liters) | 15 CBM/15,000 Liters |
| Filling ratio | 0.95 |
| Filling Weight(kg) | 7125 kg |
| Tank Weight(kg) | 3920 kg |
| Thickness of Shell (mm) | 10.0 mm |
| Thickness of End plate (mm) | 12.0 mm |
| Tank Diameter (mm) | 1800 mm |
| External Dimensions (mm) (length x width x height) | 6224*1820*2410 mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure(MPa) | 1.77 Mpa |
| Corrosion Allowance(mm) | 1 mm |
| Medium Density(kg/cbm) | 420-590 kg/cbm |
|
Manufacturing Standard: China standard Design code: GB150.1~4-2011 NOTES: Tank size will do accordingly amendment to meet loading by 40’HQ container |
|

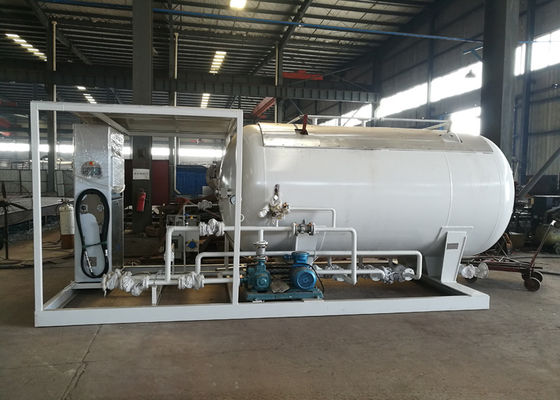

Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
