Payment & Shipping Terms:
|After-sales Service Provided:||Spare Parts Supply And Engineer Support||Tanker Volume:||40CBM/40000Liters/20MT/20tons|
|Tank Material:||Q345R/SA516||Loading Material:||Propane/Liquefied Petroleum Gas/LPG|
|Design Pressure:||1.77MPa||Medium Density:||20Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³|
|Mechanical Property Test:||Tensile, Strength, Impact Test||Thickness Of Shell And Endplate:||12mm/14mm|
propane storage tanks,
large lpg storage tanks

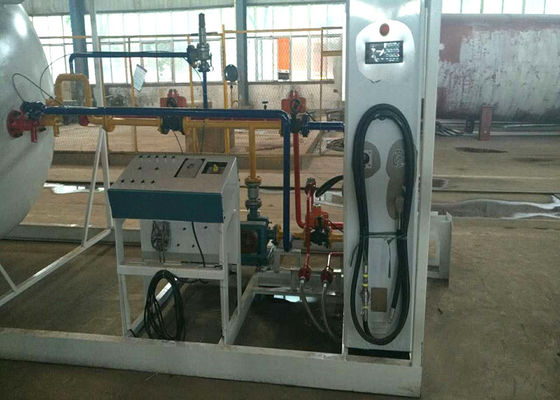

Africa 20tons LPG skid station 20MT LPG filling plant 40CBM LPG station for Nigeria
1. Storage medium: LPG, Liquid ammoina and Aether etc.
2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 40m³ LPG skid station.
3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
|Volume of Tank(CBM/Liters)||40 CBM/40,000 Liters|
|Filling Weight(kg)||19000 kg|
|Tank Weight(kg)||8630 kg|
|Thickness of Shell (mm)||12.0 mm|
|Thickness of End plate (mm)||14.0 mm|
|Tank Diameter (mm)||2300 mm|
|External Dimensions (mm) (length x width x height)||10040*2324*2914 mm|
|Material of Tank and Main Pressure Parts||Carbon Steel Q345R|
|Filling Medium||Liquefied Petroleum Gas ( Propane)|
|Design Pressure(MPa)||1.77 Mpa|
|Corrosion Allowance(mm)||1 mm|
|Medium Density(kg/cbm)||420-590 kg/cbm|
Manufacturing Standard: China standard
Design code: GB150.1~4-2011
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
