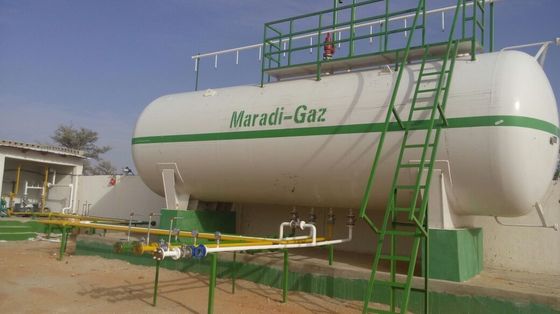

20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles

20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles
20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles 20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles 20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles 20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles 20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles

Large Image :  20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles

Product Details:

Place of Origin: ,China
Brand Name: CLW
Certification: ASME,CCC,SGS,BV
Model Number: CLW9520

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked Package,Bulk Ship,Roll-Roll
Delivery Time: 20~30 days after receiving deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 500 Units/Month
Detailed Product Description
Tanker Material: Q345R, SA516 Dish End Thickness: 16mm
Tank Body: 14mm Tank Diameter: DN2700mm,
Size Options: 10tons, 20tons, 30tons, 40tons, 50tons, Design Pressure: 1.77Mpa / 17.7Bar, Or As Requried
Tank Accessoreis: Safety Valve, Cut-off Valve, Etc Level Gauge: Rotogage Or Megnatic Type
High Light:

transporting large propane tanks

,

large lpg storage tanks

20MT Propane Gas Station Tanks 50m3 LPG Storage Tank for cylinder filling 4 Nozzles



Product Description



20MT Propane Gas Station Tanks 50m3 LPG Storage Tank for cylinder filling 4 Nozzles

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc

2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,

3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.





20MT Propane Gas Station Tanks 50m3 LPG Storage Tank for cylinder filling 4 Nozzles

50CBM LPG TANK DIMENSIONS
Volume of Tank 50 CBM
Filling Weight 20000 kg
Tank Weight 10640 kg
Thickness of Shell (mm) 14 mm
Thickness of Endplate (mm) 16 mm
Tank Diameter (mm) 2700 mm
External Dimensions (mm) (length x width x height) 9180 x 2728 x 3318 mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.77 MPa / 17.7 Bar
Hydraulic Test Pressure 2.10Mpa / 21.0 Bar
Corrosion Allowance 1 mm
Medium Density 500 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item Specification Quantity
Discharge Pipe DN50 1
Inflow Pipe DN50 1
Gas phase balance pipes DN50 2
Drain Hole DN50 1
Manhole DN450 1
Air-out Pipe DN50 1
Safety Valve Pipe DN100 1

Safety Accessories(not included in the quotation):

Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge,

Temperature Gauge.


We can offer whole set accessories and equipments of building a completed LPG plant as follows,



  • LPG PUMP AND MOTOR
  • LPG COMPRESSOR
  • AIR COMPRESSOR
  • VOLUME/MASS FLOW METER
  • LPG DISPENSER MACHINE/CYLINDER WEIGHT SCALE
  • GAS LEAKAGE DETECTOR
  • LEVEL GAUGE(MAGNETIC PLATE TYPE,ROCHESTER,FLOAT BALL..)
  • ALL KINDS OF VALVES(globe valves,safety valves,ball valves,non-return valves,strainer,emergency cut-off valves...)
  • PIPELINES
  • GASKETS
  • BOLTS AND NUTS



20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles 0



20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles 1



20MT Propane Gas Station Transporting Propane Tanks For Cylinder Filling 4 Nozzles 2

 Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of LPG products I can order from your company?


A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.



Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.



Q3: Have you supplied LPG products to any renowned companies?


A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.



Q4: What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
