Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | DONGFENG,ISUZU,FAW,HOWO,JAC,JMC | Towing Capacity: | 3ton,4ton,5ton,5tons,3t,4t,5t, |
|---|---|---|---|
| Color: | White,yellow,Blue As Customized | Steering: | LHD,RHD,right Hand Drive,left Hand Drive |
| Engine: | 120hp | Wrecker Type: | One-towing-two,one-towing-one |
| High Light: | heavy duty tow truck,emergency tow truck |
||

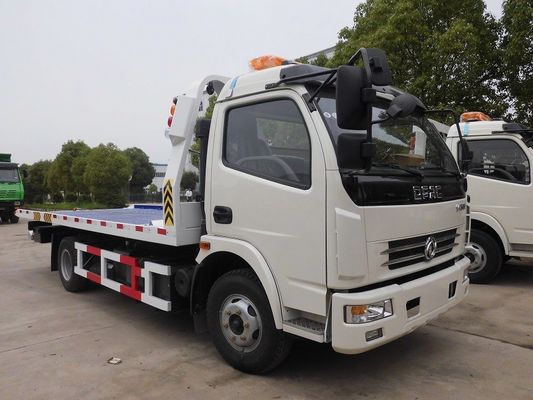

4ton Towing Truck Dongfeng 4X2 120hp LHD RHD 5tons towing wrecker truck
Product Description
1) Purpose of 4ton towing truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2) Optional brand of 4ton towing truck:Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3) Spare parts of 4ton towing truck:
Italy brand multi-way valve and balance valve;
Gernamy Roxroth technology hydraulic cylinder and joint;
imported sealing element;
strengthed checked plate
4) Capacity range of towing truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton
Specification of 4ton Towing Truck Dongfeng 4X2 120hp LHD RHD 5tons towing wrecker truck
| Item No. | Parameters |
| Overall Dimension | 7480x2300x2500 mm |
| Driving ModelL | LHD or RHD |
| Cabin | 2~3 persons |
| Gross Vehicle Weight | 8270 kg |
| Curb Weight | 4980 kg |
| Loading Weight | 4000Kg |
| Wheel Base | 3800 mm |
| Front/rear Tread | 1210/2470 mm |
| Approach/Departure Angle | 24/12 degree |
| Front Axle | 3310 kg |
| Rear Axle | 4965 kg |
| Engine | Chaochai |
| Engine horsepower | 120HP EURO III |
| Displacement | 3856mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Tire | 6.50-16( 7 pieces) |
| Loading Plate | |
| Body Material | Q235A carbon steel |
| Lifting Weight | 4000kg |
| Loading Plate Dimensions | 4450*2200mm |
| Loading Plate Glide Range | 2700mm |
| Min. Slope Anglo | 8 degree |
| Steel Rope Length | 21m |
| Winch Speed | 5m/min |
| Towing Weight | 4000kg |
| Wheel Lift Max. Length | 1640mm |
| Wheel Lift Extension | 1340mm |
| Tool Box no. | 1 |
| Auxiliary wheel no. | 2 |
| “L” bracket no. | 1 |
| LOGO | Company Logo or any advertisement can be printed on the carriage body according to the customer's design. |
Structure drawing
| Item No. | Name |
| 1 | chassis |
| 2 | Warning lamp |
| 3 | Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 | Winch and steel rope |
| 5 | Loading plate |
| 6 | Side signal lamp |
| 7 | Chain hook |
| 8 | Wheel lift |
| 9 | “L” bracket |
| 10 | Operation and hydraulic system |
| 11 | Auxiliary wheel |
| 12 | Side guard rail |
| 13 | Tool box and accessories |
| 14 | PTO and oil pump |
| 15 | Witch and operation handle of PTO |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
