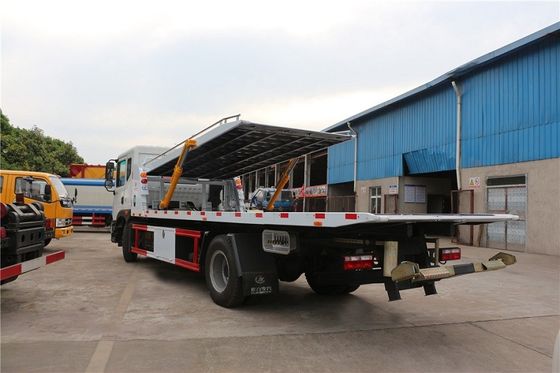

High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker

High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker
High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker

Large Image :  High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC SGS BV
Model Number: CLW5165

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units per month
Detailed Product Description
Chassis Brand: DONGFENG,ISUZU,FAW,HOWO,JAC,JMC Towing Capacity: 6ton,7ton,8ton,6tons,7tons,8tons,6t,7t,8t
Color: White,yellow,Blue As Customized Steering: LHD,RHD,right Hand Drive,left Hand Drive
Engine: 170hp,185hp,160hp,210hp Wrecker Type: Wheel Lift,intergrated,flatbed,lift Flatbed
High Light:

flatbed tow truck

,

emergency tow truck

high efficient tow wrecker vehicle 8t Chile Dongfeng 8tons flatbed wrecker



Product Description





1) Purpose of tow wrecker vehicle 8t: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of tow wrecker vehicle 8t:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of tow wrecker vehicle 8t:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of tow wrecker vehicle 8t:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton



Specification of Dongfeng tow wrecker vehicle 8t


Item No. Parameters
Overall Dimension 9500x2480x2760 mm
Driving ModelL LHD or RHD
Cabin 2~3 persons
Gross Vehicle Weight 15795 kg
Curb Weight 8950 kg
Loading Weight 6845 Kg
Wheel Base 3950,4500,4700,5200,5600 mm
Front/rear Tread 1858/1806 mm
Approach/Departure Angle 19/10 degree
Front Axle 5395 kg
Rear Axle 10400kg
Engine Cummins
Engine horsepower 170 HP EURO III
Displacement 5900mL (Diesel)
Max Driving Speed 90 km/h
Tire 9.00R20 ( 7 pieces)
Loading Plate
Body Material Q235A carbon steel
Lifting Weight 8000kg
Loading Plate Dimensions 7450*2200mm
Loading Plate Glide Range 2700mm
Min. Slope Anglo 8 degree
Steel Rope Length 21m
Winch Speed 5m/min
Towing Weight 4000kg
Wheel Lift Max. Length 1640mm
Wheel Lift Extension 1340mm
Tool Box no. 1
Auxiliary wheel no. 2
“L” bracket no. 1
LOGO Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker 0
High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker 1
High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker 2
High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker 3


Structure of tow wrecker truck 8tons

High Efficiency Wrecker Tow Truck Vehicle Chile Dongfeng 8tons Flatbed Wrecker 4


Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO



Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of tow wrecker vehicle I can order from your company?


A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied tow wrecker vehicle to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
