Product Details:
Payment & Shipping Terms:
|
| Filling Medium: | Fuel, Kerosene, Paraffin | Max Filling Weight: | 3500 Kg |
|---|---|---|---|
| Overall Size: | 3900*1370*1700(mm) | Tank Thickness: | 4.5mm Shell, 4.5mm Head |
| Material Of Tank: | Carbon Steel Q235B | Working Pressure: | 0.008MPa |
| Working Temperature: | ≤50℃ | Corrosion Allowance: | 1 Mm |
| Life Time: | 10 Years | Color: | As Per Customer Requirements |
| High Light: | propane storage tanks,large lpg storage tanks |
||
Product Description
1. Storage medium: Fuel, Kerosene, Paraffin, etc.

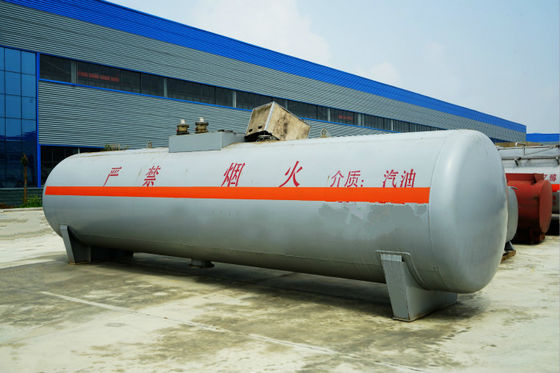

2. Tanker capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is a 5m³ storage tanker.
3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008.
Product Specification
| 5 CBM Fuel Storage Tanker Specifications | ||
| Volume of Tank | 5 CBM | |
| Filling Medium | Fuel, kerosene, paraffin | |
| Max Filling Weight | 3500 kg | |
| Tank Weight | 1200kg | |
| Tank Thickness (mm) | 4.5 mm | |
| Tank Diameter | 1370 mm | |
|
Overall Size (length x width x height) |
3900*1370*1700(mm) | |
| Material of Tank | Carbon Steel Q235B | |
| Design Pressure | 0.01MPa | |
| Working Pressure | 0.008 MPa | |
| Corrosion Allowance | 1 mm | |
| Design Temperature | 50℃ | |
| Working Temperature | ≤50℃ | |
| Life Time | 10 years | |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
| Standard Accessories of Fuel Storage Tank | ||
| Item | Qty | Junction Surface |
| Manhole | 1 | FF |
| Liquid Inlet | 1 | FF |
| Liquid Outlet | 1 | FF |
| Vent Outlet | 1 | FF |
| Level Gauge | 1 | FF |
| Spare Mouth | 1 | FF |
Our Service
1)Quick feedback to solve your questions;
2)Professional engineering and production team;
3)Related Accessories and spare parts offered,no future worries;
4)Regular customer after-sale visiting;
5)Free technical staff training and guidance;
6)Reasonable price and good quality;
7)Quick delivery and shipment.
