| Size Option: | 10mt,15mt,20mt,30mt,40mt,50mt | Materail: | Carbon Steel Q345R |
|---|---|---|---|
| Filling Medium: | Propane,butane | Tank Diameter: | DN2700mm |
| Design Pressure:: | 1.71Mpa | Level Gauge: | Rotogage Or Megnatic Type |
| Tank Valves: | Cut-off Valve, Needle Valve, Safety Valve, Return Valve Etc.. | LOGO: | As Per Request |
| Warranty: | One Year | Diagram: | Yes |
| Tank Thickness: | 16 Mm | Shell Thickness: | 14 Mm |
| Corrosion Allowance: | 1 Mm | Usage: | LPG Gas Storage, Station Tank |
| Life Time: | 20 Years | Hydraulic Test Pressure: | 2.21MPa 22.1bar |
| High Light: | propane storage tanks,transporting large propane tanks |
||

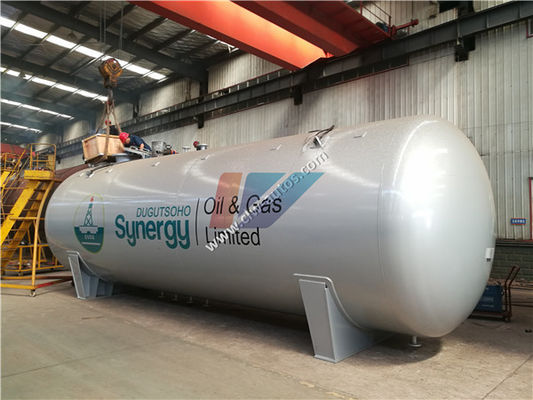

ASME 50cbm 25MT 25Ton Cooking Gas Refilling LPG Gas Storage Tank for LPG Station Plant for Nigeria
Product Description
20-25MT Propane Gas Station Tanks 50m3 LPG Storage Tank
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
20-25MT Propane Gas Station Tanks 50m3 LPG Storage Tank
| 50 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 50 CBM | ||
| Filling Weight | 25000 kg | ||
| Tank Weight | 10640kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of End plate (mm) | 16 mm | ||
| Tank Diameter (mm) | 2700 mm | ||
| External Dimensions (mm) (length x width x height) | 9182 x X2728X3318 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
|||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
