Heavy Duty Shacman 8X4 30T Wrecker Tow Truck

I'm Online Chat Now

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck
Heavy Duty Shacman 8X4 30T Wrecker Tow Truck Heavy Duty Shacman 8X4 30T Wrecker Tow Truck Heavy Duty Shacman 8X4 30T Wrecker Tow Truck Heavy Duty Shacman 8X4 30T Wrecker Tow Truck

Large Image :  Heavy Duty Shacman 8X4 30T Wrecker Tow Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW53115WYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: 79650 usd/unit~10860 usd/unit
Packaging Details: naked with waxing before shipment
Delivery Time: 30~40 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/per month
Detailed Product Description
Emission Standard: Euro 3, Euro 4, Euro 2, EURO 5, Euro Truck Chassis: Shacman,howo,Iveco,dongfeng,FAW
Transmission Type: Manual, Automatic Tire: 12R22.5,12.00R20
Product Name: Car Towing Wrecker Truck, 30tons Tow Truck, Heavy Wrecker Tow Trucks, 30T Lift Wrecker,rotator Wrecker Tow Truck For Sale Driving Type: 4x2/6x2/6x4/8x4/8x6/4x4/6x6/etc
Steering: LHD,RHD Type: Rotator Road Rescue Wrecker
Name: Road Rescue Recovery Vehicles/wrecker Tow Trucks, Tow Trucks, Tow Truck Wrecker HOWO 8*4 25ton Heavy Wrecker Tow Trucks, Road Block Removal Truck Warranty: 12 Months,1 Year
Engine: Diesel Engine 340hp Emmision: Euro 2/3/4
High Light:

8X4 Wrecker Tow Truck


30T Wrecker Tow Truck




--Road wrecker truck(also called road wrecker,wrecker truck,towing truck,tow truck,recovery truck,towing service truck,breakdown truck) is used for moving disable,improperly parked or breakdown vehicles or car.


-- Road wrecker truck can be divided into various types as follows,

1) According to the categories, the road wrecker truck are mainly divided into: towing connected type, towing separated type, one-towing type, flat-panel one-towing type, multi-functional towing vehicles and hydraulic automatic clamping type.

2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 Road wrecker truck;

3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons Road wrecker truck;

4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,camc,shacman Road wrecker truck.




--Powerful shacman truck chassis;

--2 Nos of 15tons winches with diameter 28mm;

--360 ° rotation rotator towing truck;

--Italy hydro control control valve and balance valve;

--Wuxi oil hydraulic pneumatic equipment co ltd;

--One-step modeling compartment plate by germany 3P2A punching machine;


--Adopting American wrecker design and manufacturing technology.

--Key components using the finite element stress analysis (CAE technology)

--Adopting high quality high-strength steel for important components

--Hydraulic technology adopts two filtration systems to ensure hydraulic clean.

--The key hydraulic lines seals imported from Germany.

--All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.

--Equipped with various fork lifts (including leaf spring forks).

--High and low fork combined with various fork lifts.

--Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.

--Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.

--Boom with 360 degree continuous rotation.

--Equipped with trailer towing disk, remote control is optional.


Reference picture

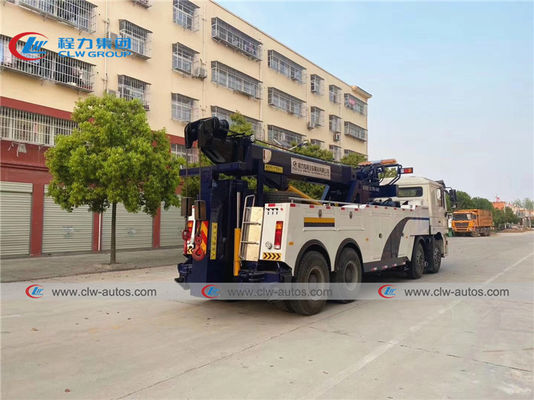

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck 0

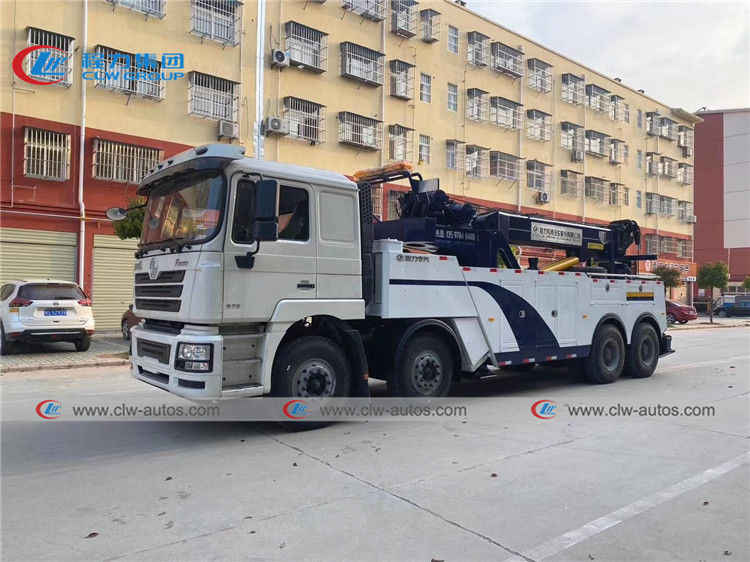

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck 1

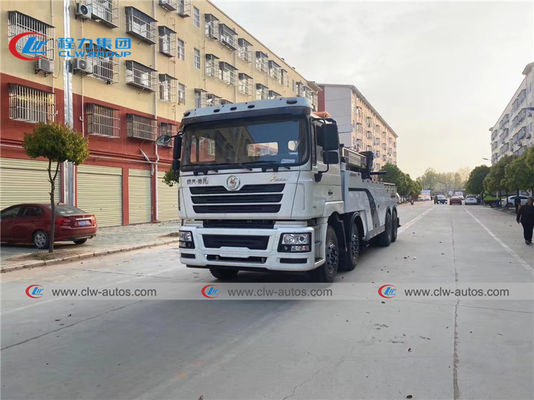

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck 2

Remote controller

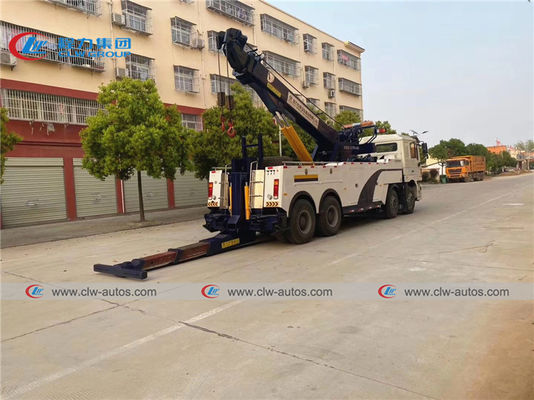

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck 3

Drawing of towing winch


50tons tow truck01


Driving type 8×4,LHD or RHD
Curb weight 11200kg
Max.Weight(kg) 60000kg
Overall Dimension mm(LxWxH) 11300×2500×3750
Wheelbase(mm) 1800+4575+1400
Max. Speed(km/h) 90km/h
Max. Grade ability(%) 30
Engine Brand WEICHAI
Model WP10.340E22
Emission Standard EURO Ⅱ
Rated output power 340HP
Rated speed(r/min) 2200
Max.Torque 1400N.m/12001600r/pm
Displacement(L) Displacement 9.726L
Transmission Brand FAST
Model 10JSD180 with QH70 ,10 forward and 2reverse
Front axle 2×MAN 9.5T
Rear axle 2×13T MAN double reduction drive axle, ratio 4.769
Clutch Eaton technology
Steering ZF technology/
Frame 850*300(8+5)
Suspension multi leaf spring suspension
Fuel tank 400L fuel tank
Wheels and tires 12.00R20,12+1
Brakes Running brake:Dual circuit compressed air brake
Parking brake:Air discharging with spring control
Auxiliary brake:Engine exhaust brake
Without ABS

F3000 flat roof cab,one sleeping bed

hydraulic Driver’S Seat

Four-Point hydraulic Suspension Cab

Air condition

Metal Bumper



Key word:tow truck,recovery truck,50t tow truck,30t tow truck,30t road wrecker,breakdown truck,30t wrecker,dongfeng 30tons recovery truck,dongfeng 30t road wrecker
