50000 Liters 13000 Gallons Buried Underground Lpg Tank

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

50000 Liters 13000 Gallons Buried Underground Lpg Tank

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  50000 Liters 13000 Gallons Buried Underground Lpg Tank

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC ISO ASME
Model Number: CLW1050

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12250-22560USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Material: Q345R, Carbon Steel Q345R, Q345R/Q370R Carbon Steel Type: Underground Burried LPG Tank
Capacity: 50m3,50000liters,50000L,50cubic Meters Condition: New
Thickness: 14mm 16mm Filling Medium: LPG, Liquid Petroleum Gas (propane), LPG(propane), Propane
Design Pressure: 1.77Mpa/17.7bar Test Pressure: 2.21Mpa/22.1Bar
Dimension: 9182X2728X3990mm Tank Weight: 11325kg
Corrosion Allowance: 1mm Diameter: 2700mm/2600mm
Loading Weight: 20tons/20mt/25tons/25mt Underground LPG Tank
High Light:

Buried Underground Lpg Tank

,

50000 L Underground Lpg Tank

,

13000 Gallons Underground Lpg Tank

Function

--Underground LPG tank (also called burried lpg tank,lpg underground tank,underground liquid petroleum tank) is a professional product for storing LPG or propane gas underground.As the name suggests, buried lpg storage tank is buried underground.The tank consists of saddle, tank (including head and tank shell), manhole integration (including liquid phase mouth, gas phase balance mouth, sewage outlet, liquid level gauge, thermometer, manhole cover, etc.)The outside of the tank should be drained in three steps and the cathodic corrosion protection should be backfilled with sand and stone.This kind of product is the necessary storage tank for LPG station when the land area is small and the fire safety distance is not enough.



Why do you choose underground lpg tank compared with above ground lpg tank?

underground lpg tank requires less land than above ground lpg tank.The buried LPG storage tank can halve the distance from the storage tank to the building, effectively use the land area and make the whole beautiful and harmonious after installation.

★The service life is also better than that of the aboveground liquified gas storage tank with good anti-corrosion treatment;

★The temperature underground is more stable for underground lpg tank to avoid possible risk brought by high temperature





Feature

--The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

--non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

--Design pressure of Underground LPG tank: 1.77Mpa;

--hydraulic testing pressure:2.21 Mpa;

--Corrosion allowance: 1mm;

-Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.





Pictures of underground LPG tank 50000liters

underground lpg tank 50000liters26

50000 Liters 13000 Gallons Buried Underground Lpg Tank 1

50000 Liters 13000 Gallons Buried Underground Lpg Tank 2

50000 Liters 13000 Gallons Buried Underground Lpg Tank 3





Specification of underground LPG tank 50000liters



ITEM PARAMETER ITEM PARAMETER
Volume 50cbm Thickness of Shell 14mm
Tank Material Q345R Thickness of End plate 16mm
Overall Size 9182*2728*3990mm Tank Net Weight 11325kg
Tank Diameter 2700mm Loading Capacity 19950kg
Design Pressure 1.77Mpa Gas Density 420kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20℃~50℃ Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 15 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-80 Safety Valve DN80 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40℃~60℃

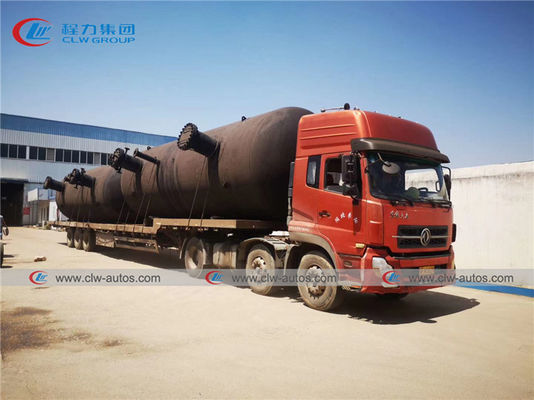

Production and shipment of underground LPG tank



25T 25MT 50000L LPG Gas Tank01




FAQ★How can I get a sample of underground lpg tank to check your quality?Answer:Due to the underground lpg tank size,sample can not be sent to your country.But we have supplied a lot of underground lpg tanks to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
How long can I expect to get the underground lpg tank?Answer:20~30 working days after receiving deposit at account.
What's your payment term?



Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of underground lpg tank?



Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.

★Does your underground lpg tank have warranty service? How long is the warranty period?

Answer:Yes,lifetime of underground lpg tank is 20 years.
Overseas service and Client visiting
国外客户拜访



Installation and precautions for underground LPG tank

--It is necessary to do a good job of cathodic anti-corrosion for the buried lpg tank. The tank body of LPG storage tank is in contact with the minerals in the soil and will be corroded by acid, alkali and salt substances in the perennial erosion process, which will cause fatal harm to the tank body over time.Therefore, for underground lpg tank and related equipment, we mainly do a good job of cathodic corrosion, through the 'impressed current protection law', will be protected metal and the negative pole of the power supply connection, another conductive inert material to connect the positive pole.After electrification, the metal surface produces a negative charge (electron) accumulation, thus inhibiting the loss of electrons of the metal to achieve the purpose of protection.Prevent corrosion of metal equipment in soil, seawater and river water from LPG tanks.



--The upper surface of underground lpg tank is filled with some fine sand. The requirements are as follows: the size of sand grains is uniform and finely broken, and the depth is about 400 mm.



Key word: underground LPG tank,25tons LPG tank,25tons lpg tank, lpg underground tank,burried lpg tank,liquid gas storage tank,liquified petroluem storage tank,underground cooking gas tank,underground propane tank
