| Chassis Brand: | Dongfeng Kingrun | Loading Capacity: | 8Ton ~10Ton |
|---|---|---|---|
| Color: | Military Green Color | Steering: | RHD Or LHD |
| Engine: | Cummins 170hp,180hp,190hp | Wrecker Type: | Flatbed Tilt Tray |
| Towing Capacity: | 10ton-20Ton | Flatbed Length: | 7200mm |
| Flatbed Width: | 2300mm | Flatbed Thickness: | 6mm |
| Wrench Capacity: | 8Ton | Steel Wire Length: | 25meters |
| High Light: | Flatbed Wrecker Tow Truck,Dongfeng Kingrun Wrecker Tow Truck,military 8 ton flatbed tow truck |
||

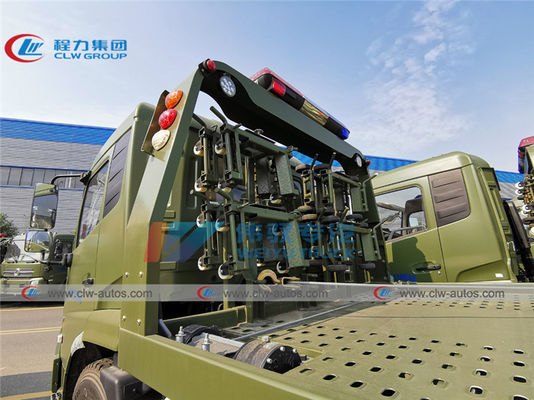

Military Army Use 8Ton Dongfeng Kingrun Flatbed Wrecker Tow Truck
Product Description
1) Purpose of 8ton flatbed tow truck: used for towing broken cars,vehicle on road.
2) Optional Truck Brand:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3) Spare parts of 8ton flatbed tow truc:
4) Flatbed Size: 7200mm length, 2300mm in Width
Specification of dongfeng 6ton flatbed tow truc
| Item No. | Parameters |
| Overall Dimension | 9440x2480x3700 mm |
| Driving ModelL | LHD or RHD |
| Cabin | 2~3 persons |
| Gross Vehicle Weight | 12495 kg |
| Curb Weight | 10000 kg |
| Loading Weight | 2495 Kg |
| Wheel Base | 5000mm |
| Front/rear Tread | 1880/1860 mm |
| Approach/Departure Angle | 24/12 degree |
| Front Axle | 2840 kg |
| Rear Axle | 5440 kg |
| Engine | Cummins |
| Engine horsepower | 180 HP EURO III |
| Displacement | 5900mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Tire | 9.00R20( 7 pieces) |
| Loading Plate | |
| Body Material | Q235A carbon steel |
| Lifting Weight | 5000kg |
| Loading Plate Dimensions | 6450~7200mm*2300mm |
| Loading Plate Glide Range | 2700mm |
| Min. Slope Anglo | 8 degree |
| Steel Rope Length | 21m |
| Winch Speed | 5m/min |
| Towing Weight | 6000kg |
| Wheel Lift Max. Length | 1640mm |
| Wheel Lift Extension | 1340mm |
| Tool Box no. | 1 |
| Auxiliary wheel no. | 2 |
| “L” bracket no. | 1 |
| LOGO | Company Logo or any advertisement can be printed on the carriage body according to the customer's design. |
Structure drawing
| Item No. | Name |
| 1 | chassis |
| 2 | Warning lamp |
| 3 | Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 | Winch and steel rope |
| 5 | Loading plate |
| 6 | Side signal lamp |
| 7 | Chain hook |
| 8 | Wheel lift |
| 9 | “L” bracket |
| 10 | Operation and hydraulic system |
| 11 | Auxiliary wheel |
| 12 | Side guard rail |
| 13 | Tool box and accessories |
| 14 | PTO and oil pump |
| 15 | Witch and operation handle of PTO |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of wheel-lift breakdown truck I can order from your company?
A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied wheel-lift breakdown truck to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
