20 Tons DN2400mm Propane Storage Tanks For Gas Plant

20 Tons DN2400mm Propane Storage Tanks For Gas Plant
20 Tons DN2400mm Propane Storage Tanks For Gas Plant 20 Tons DN2400mm Propane Storage Tanks For Gas Plant 20 Tons DN2400mm Propane Storage Tanks For Gas Plant 20 Tons DN2400mm Propane Storage Tanks For Gas Plant 20 Tons DN2400mm Propane Storage Tanks For Gas Plant

Large Image :  20 Tons DN2400mm Propane Storage Tanks For Gas Plant

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CLW9520iv
Model Number: ASME,CCC,SGS,BV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked Package,Bulk Ship,Roll-Roll
Delivery Time: 20~30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Size Option: 10tons,20tons,25tons,30tons, 40tons,50tons,60tons Materail: Carbon Steel Q345R
Filling Medium: Propane,butane Tank Diameter: DN2400mm
Design Pressure:: 1.77Mpa Level Gauge: Rotogage Or Megnatic Type
Density: 420kg~590kg/m3 Tank Valves: Cut-off Valve, Needle Valve, Safety Valve, Return Valve Etc..
Production Standards: ASME/GB150-20 LOGO: As Per Customer's Request
Service Time: 15 Years
High Light:

20 Tons Propane Storage Tanks

,

DN2400mm Propane Storage Tanks

,

Q345R LPG Gas Storage Tank

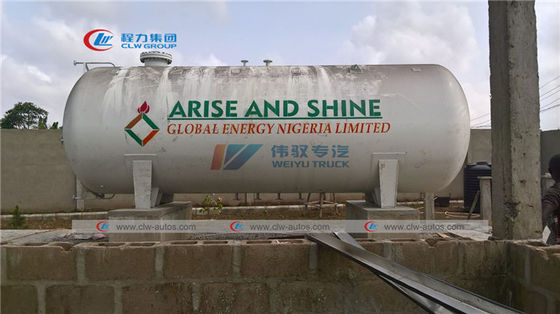

20tons LPG Storage Tank Propane Gas Tank for Gas Plant Station in Nigeria




Product Description



1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2.Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.

3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

4.Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.

5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

6.Maintenance-free operation with simple calibration and proof testing.

7.20 years guarantee against manufacturing defects.



40 CBM LPG TANK DIMENSIONS
Volume of Tank 40CBM
Filling Weight 15960kg
Tank Weight 9380g
Thickness of Shell (mm) 12 mm
Thickness of End plate (mm) 14 mm
Tank Diameter (mm) 2400 mm
External Dimensions (mm) (length x width x height) 9270 X2428X3018 mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.77 MPa / 17.7Bar
Corrosion Allowance 1 mm
Medium Density 420kg~590kg kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item Specification Quantity
Discharge Pipe DN80 1
Inflow Pipe DN80 1
Gas phase balance pipes DN50 2
Drain Hole DN50 1
Manhole DN450 1
Air-out Pipe DN50 1
Safety Valve Pipe DN80 2

Safety Accessories (Included in the quotation):
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge.



Gas filling station design



20 Tons DN2400mm Propane Storage Tanks For Gas Plant 0


20 Tons DN2400mm Propane Storage Tanks For Gas Plant 1

Filling house for cylinders
20 Tons DN2400mm Propane Storage Tanks For Gas Plant 2

Key words: 10tons LPG storage tank, gas plant station, 10tons LPG gas tank, 10tons propane gas tank
