Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | DONGFENG,ISUZU,FAW,HOWO,JAC,JMC | Towing Capacity: | 30t,30tons,30tons,40t,40tons,40ton,50t,50tons,50ton Rotator Towing Truck |
|---|---|---|---|
| Color: | White,yellow,Blue As Customized | Steering: | LHD And RHD Rotator Towing Truck |
| Engine: | Diesel Engine Rotator Towing Truck | Wrecker Type: | Heavy Duty/Mege Rotator Towing Truck |
| Winch: | 25tonsX2 Nos | Underlift Capacity: | 25tons Rotator Towing Truck |
| Rotation Angle: | 360 ° | Steel Rope: | 45meters |
| Diameter: | 18mm | ||
| High Light: | 50T Recovery Tow Truck,40T Recovery Tow Truck,30t rotator tow trucks |
||

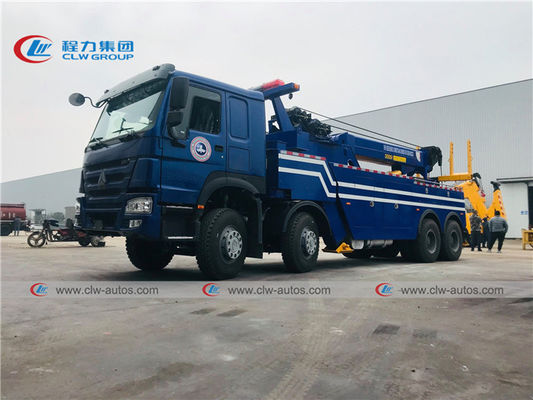

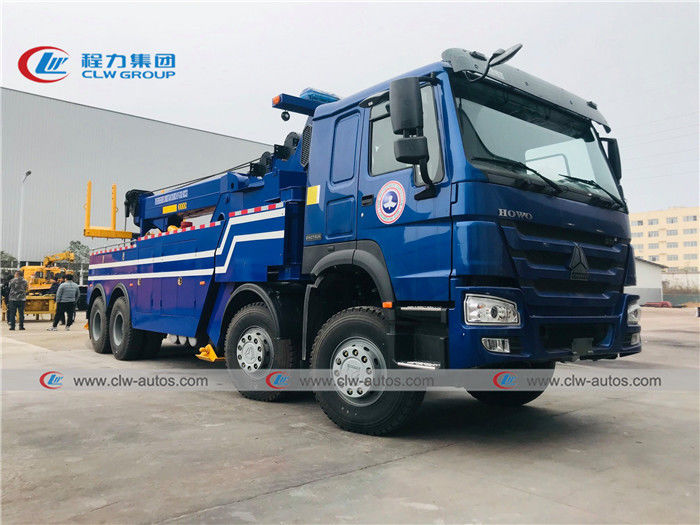

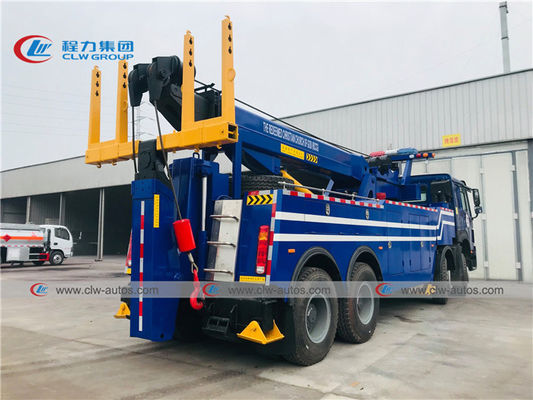

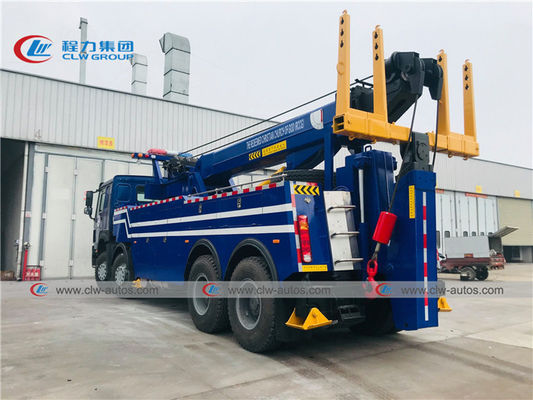

RHD 30Tons 40Tons 50Tons Rotator Towing Wrecker Heavy Duty 50t Recovery Tow Truck
Product Description
Purpose of rotator towing truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
Feature of 30tons 40tons 50tons rotator towing truck
1. Full rotating boom. Three 15-meter booms can lift 50 tons and fully extend 15 tons. Wireless remote operation!
2. Two 25-ton hydraulic winches, 55-meter steel wire rope with two 30-ton hooks. Wireless remote operation!
3. The 3 section retractable, lifting arm, in-situ lift 50 tons, fully extended 3 meters, lift 20 tons; lift 150 tons. Four double-cavity hydraulic outriggers (front outrigger folding type). Wireless remote operation!
4. Equipped with engineering warning lights, microphones, rear working lights, hand washing box, U-shaped tire holding device, fork support, fork support seat, chain hook, auxiliary light assembly, auxiliary brake air pipe assembly. Imported hydraulic components. Split-type carriage, double-sided linkage operating device.
Specification of 30tons 40tons 50tons rotator towing truck
| CHASSIS | |||||
| Cabin | HW76 standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons | ||||
| No load(kg) | Curb Weight | 13070 | |||
| Front axle | 7000*2 | ||||
| Rear axle | 18000*2 | ||||
| Full load | Max. Overall Weight | 31000 | |||
| Overall Dimensions(mm) | Length | 11430 | |||
| Width | 2500 | ||||
| Height | 3270 | ||||
| Wheel base(mm) | 1800+4600+1350 | ||||
| Track(mm) | 2022/1830 | ||||
| F/R Suspension(mm) | 1500/2200 | ||||
| A/D Angle(°) | 16/18 | ||||
| Driving Model | 8*4 | ||||
| Tyre | 315/80R22.5 | ||||
| Max. Speed(km/h) | 105 | ||||
| Max. Grade-ability(%) | 30 | ||||
| Min. Turning Diameter(m) | 22.6 | ||||
| Min. Ground clearance(mm) | 310 | ||||
| Engine | Model | WD615.47 | |||
| Horsepower(HP) | 371 | ||||
| Displacement(mL) | 9726 | ||||
| Transmission | HW19710,10 forwards&2 reverses | ||||
| WRECKER EQUIPMENT | |||||
| Max. Towing Weight(kg) | 43000 | ||||
| Lifting System | Max. Lifting Weight(kg) | 25000 | |||
| Max. Lifting Weight under all extension(kg) | 8300 | ||||
| Effective Length of Corbeling Arm(mm) | 3650 | ||||
| Extend-retract of Corbeling Arm(mm) | 1750 | ||||
| Slope Angle of Corbeling Arm(°) | 7 | ||||
| Folding angle under no load(°) | -7~92 | ||||
| Folding angle under load(°) | -7~16 | ||||
| Max. Ground Distance(mm) | ≮900 | ||||
| Landing Strength(KN) | 80*2 | ||||
| Hydraulic Hose | Tianhe,Guangdong Province | ||||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||
| Hoisting System | Max. Hoisting Weight(kg) | 50000 | |
| Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg) | 7800 | ||
| Max. Hoisting Weight under no extension when Hoisting Angle is 30°(kg) | 18000 | ||
| Extension Distance of Oil Cylinder(mm) | 6000 | ||
| Length of Crane Arm(mm) | 5880 | ||
| Section No. Of Crane Arm | 3 | ||
| Max. Hoisting Height(mm) | 12300 | ||
| Max. Operation Diameter (mm) | 10710 | ||
| Max. Hoisting Angle(°) | 0~60 | ||
| Rotation angle(°) | 360 | ||
| Winch | No. | 2 | |
| Curb Traction/Per(KN) | 250 | ||
| DN of Steel Rope(mm) | Φ20 | ||
| Length of Steel Rope(m) | 45*2 | ||
| Min. Line Speed(m/min) | 5 | ||
| Front Outrigger Type | “H” type | ||
| Rear Outrigger Type | “L” type | ||
| Front Outrigger Span(mm) | 6600 | ||
| Rear Outrigger Span(mm) | 4080 | ||
| Span between front and rear Outriggers | 5550 | ||
| Jump-start cables | 12~24 Volts | ||
| Electric system | Rear working lamp(stop,tail,turning) | 3 | |
| Revolving beacon | 1 | ||
| Lamps for license plate | 1 set | ||
| Pneumatic hoses | 1 set | ||
| Key Parts | Multitandem Valve | Italy Hydro control | |
| Balance Valve | Italy Hydro control | ||
| Pump | Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd | ||
| Hydraulic cylinder | Germany Rexroth technology and exported sealing rings | ||
| Hydraulic Winch | Jiashan Huachuang Hydraulic technology Co., Ltd. | ||
| Hydraulic Hose | Tianhe,Guangdong Province | ||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of towing trucks I can order from your company?
A: There are various sizes of towing trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied towing trucks to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
