| Chassis Brand: | DONGFENG,ISUZU,FAW,HOWO,JAC,JMC | Towing Capacity: | 30t,30tons,30tons,40t,40tons,40ton,50t,50tons,50ton |
|---|---|---|---|
| Color: | White,yellow,Blue As Customized | Steering: | LHD And RHD |
| Engine: | 290hp,336hp,371hp | Wrecker Type: | One-towing-two,one-towing-one |
| High Light: | Sinotruk Howo Heavy Duty Wrecker Truck,6X4 Heavy Duty Wrecker Truck,6X4 Heavy Duty Tow Truck |
||

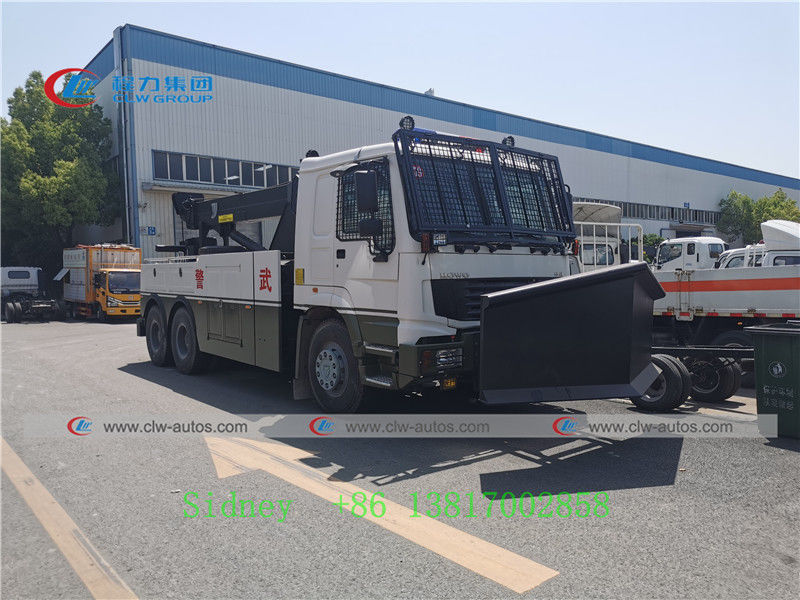

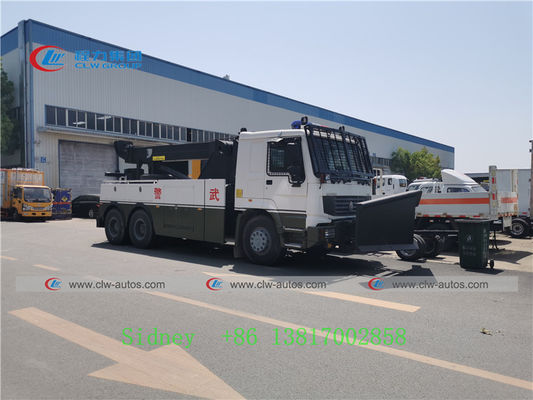

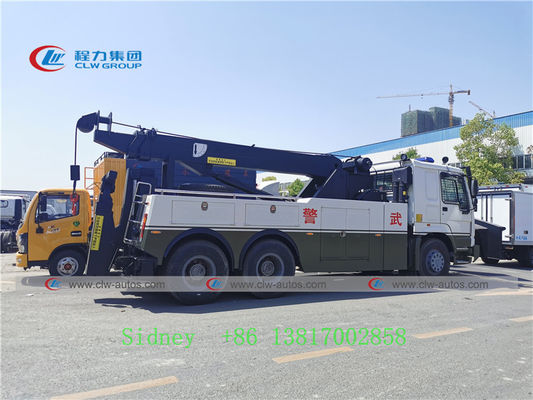

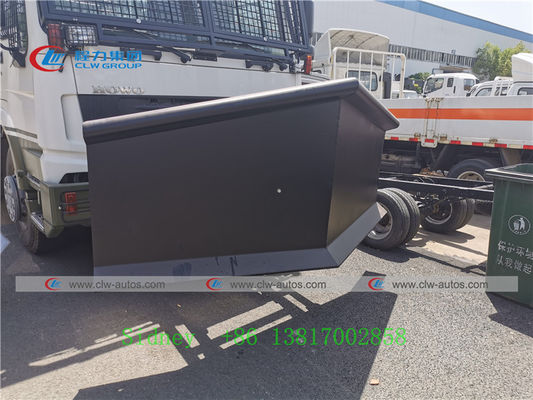

6x4 HOWO 20ton to 25ton heavy duty wrecker truck with antiriot shovel
Function
-- Road Wrecker(also called tow wrecker truck,Road Block Removal Truck,recovery truck,road wrecker,wrecker truck,towing truck,recovery truck,towing service truck,breakdown truck) is used for moving disable,improperly parked or breakdown vehicles,bus or car.
-- Road Wrecker can be divided into various types as follows,
1) According to the categories, the tow truck are mainly divided into: towing connected type, towing separated type, one-towing type, flat-panel one-towing type, multi-functional towing vehicles and hydraulic automatic clamping type.
2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4,6X6 off road Road Wrecker;
3) According to towing capacity,there are 6tons,8tons,16tons,25tons,30tons,50tons and 60tons Road Wrecker;
4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,shacman,camc Road Wrecker.
Feature
-- Powerful howo 6X6 off road truck chassis;
-- 360 ° rotation rotator towing truck;
-- Italy hydro control control valve and balance valve;
-- Wuxi oil hydraulic pneumatic equipment co ltd;
-- One-step modeling compartment plate by germany 3P2A punching machine;
-- Adopting American wrecker design and manufacturing technology.
-- Key components using the finite element stress analysis (CAE technology)
-- Adopting high quality high-strength steel for important components
-- Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
-- The key hydraulic lines seals imported from Germany.
-- All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.
-- Equipped with various fork lifts (including leaf spring forks).
-- High and low fork combined with various fork lifts.
-- Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
-- Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
-- Boom with 360 degree continuous rotation.
-- Equipped with trailer towing disk, remote control is optional.
Specifications
| CHASSIS | |||||
| Cabin | HW76 standard cabin, left hand drive,with air conditioner,allowed for 2~3 persons | ||||
| No load(kg) | Curb Weight | 13070 | |||
| Front axle | 7000 | ||||
| Rear axle | 18000*2 | ||||
| Full load | Max. Overall Weight | 25000 | |||
| Overall Dimensions(mm) | Length | 10430 | |||
| Width | 2500 | ||||
| Height | 3270 | ||||
| Wheel base(mm) | 4600+1350 | ||||
| Track(mm) | 2022/1830 | ||||
| F/R Suspension(mm) | 1500/2200 | ||||
| A/D Angle(°) | 16/18 | ||||
| Driving Model | 6*4 | ||||
| Tyre | 315/80R22.5 | ||||
| Max. Speed(km/h) | 90 | ||||
| Max. Grade-ability(%) | 30 | ||||
| Min. Turning Diameter(m) | 22.6 | ||||
| Min. Ground clearance(mm) | 310 | ||||
| Engine | Model | WD615.47 | |||
| Horsepower(HP) | 371 | ||||
| Displacement(mL) | 9726 | ||||
| Transmission | HW19710,10 forwards&2 reverses | ||||
| WRECKER EQUIPMENT | |||||
| Max. Towing Weight(kg) | 25000 | ||||
| Lifting System | Max. Lifting Weight(kg) | 20000 | |||
| Max. Lifting Weight under all extension(kg) | 8300 | ||||
| Effective Length of Corbeling Arm(mm) | 3650 | ||||
| Extend-retract of Corbeling Arm(mm) | 1750 | ||||
| Slope Angle of Corbeling Arm(°) | 7 | ||||
| Folding angle under no load(°) | -7~92 | ||||
| Folding angle under load(°) | -7~16 | ||||
| Max. Ground Distance(mm) | ≮900 | ||||
| Landing Strength(KN) | 80*2 | ||||
| Hydraulic Hose | Tianhe,Guangdong Province | ||||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||

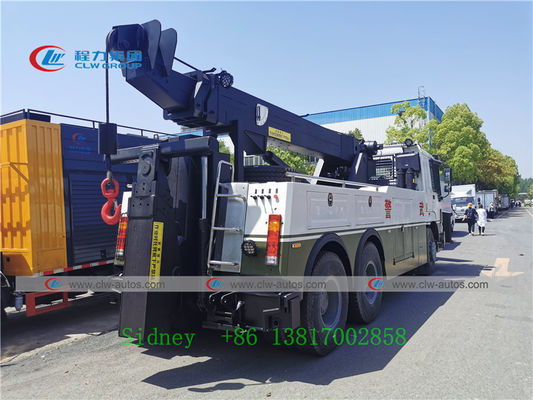

| Hoisting System | Max. Hoisting Weight(kg) | 30000 | |
| Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg) | 7800 | ||
| Max. Hoisting Weight under no extension when Hoisting Angle is 30°(kg) | 18000 | ||
| Extension Distance of Oil Cylinder(mm) | 6000 | ||
| Length of Crane Arm(mm) | 5880 | ||
| Section No. Of Crane Arm | 3 | ||
| Max. Hoisting Height(mm) | 12300 | ||
| Max. Operation Diameter (mm) | 10710 | ||
| Max. Hoisting Angle(°) | 0~60 | ||
| Rotation angle(°) | 360 | ||

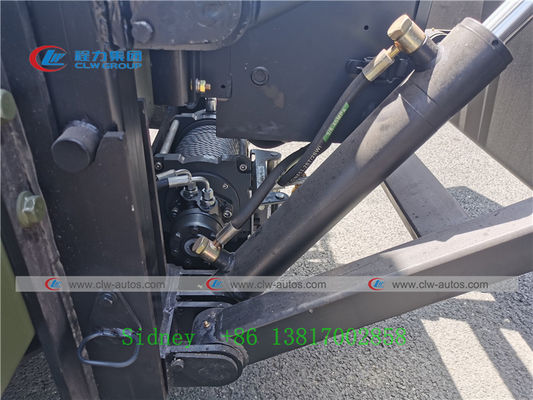

| Winch | No. | 2 | |
| Curb Traction/Per(KN) | 250 | ||
| DN of Steel Rope(mm) | Φ20 | ||
| Length of Steel Rope(m) | 45*2 | ||
| Min. Line Speed(m/min) | 5 | ||
| Front Outrigger Type | “H” type | ||
| Rear Outrigger Type | “L” type | ||
| Front Outrigger Span(mm) | 6600 | ||
| Rear Outrigger Span(mm) | 4080 | ||
| Span between front and rear Outriggers | 5550 | ||
| Jump-start cables | 12~24 Volts | ||
| Electric system | Rear working lamp(stop,tail,turning) | 3 | |
| Revolving beacon | 1 | ||
| Lamps for license plate | 1 set | ||
| Pneumatic hoses | 1 set | ||
| Key Parts | Multitandem Valve | Italy Hydro control | |
| Balance Valve | Italy Hydro control | ||
| Pump | Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd | ||
| Hydraulic cylinder | Germany Rexroth technology and exported sealing rings | ||
| Hydraulic Winch | Jiashan Huachuang Hydraulic technology Co., Ltd. | ||
| Hydraulic Hose | Tianhe,Guangdong Province | ||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
