HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsWrecker Tow Truck

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck
Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck

Large Image :  Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC SGS BV
Model Number: CLW5071FF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units per month
Detailed Product Description
Chassis Brand: DONGFENG,ISUZU,FAW,HOWO,JAC,JMC Towing Capacity: 3ton,4ton,5ton,5tons,3t,4t,5t,
Color: White,yellow,Blue As Customized Steering: LHD,RHD,right Hand Drive,left Hand Drive
Engine: 120hp Wrecker Type: One-towing-two,one-towing-one
High Light:

4X2 Flatbed Wrecker Truck

,

140HP Flatbed Wrecker Truck

,

Dongfeng Tianjin Flatbed Recovery Truck

Dongfeng Tianjin 140HP 5-7tons Flatbed Wrecker Truck 4X2 Towing and Recovery Truck





Product Description

1) 5-7Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Dongfeng Brand Chassis for Euro 2 / Euro 3 / Euro 4 / Euro 5 Emission

3) Spare parts of 5-7tons wrecker tow truck:

  • Italy brand multi-way valve and balance valve;
  • Gernamy Roxroth technology hydraulic cylinder and joint;
  • International Brand Sealing elements;
  • Strengthed Checked platform.

Specification

Classification Item Unit Parameter
Vehicle Vehicle model   Dongfeng flatbed wrecker truck
Overall dimensions mm 7680,8680×2480×2700
Tablet Size 6400×2480
GVW kg 10000
Curb weight 6680
Traction system   4×2
Transmission   6-speed with over drive
Max speed km/h 90
Chassis Chassis model   DFH1100B
Number of springs   8/9+7
Wheel base mm 4,500
Tire specification   8.25R16
Number of tires   6+1 spare
F/R track base mm 1800/1800
Engine Engine model   EQH140-52
Manufacturer   Dongfeng Commercial Vehicle CO.,LTD
Engine horse power hp 140
Displacement ml 4752
Emission standard   Euro 2-5
Lift function
Rated lift quality 6000 kg Corbel telescopic stroke 1200 mm
Max effective length 1300 mm Max tractor speed 40 km/h
Tablet Agency
Tablet Size(LxW) 6400×2480mm Min inclination angle 10°
working stroke 2700 mm Max load mass 5000 kg
Winch parameters
Number 1 Rated traction mass 5000 kg
Rope length 25 m Strand speed 8 m / min

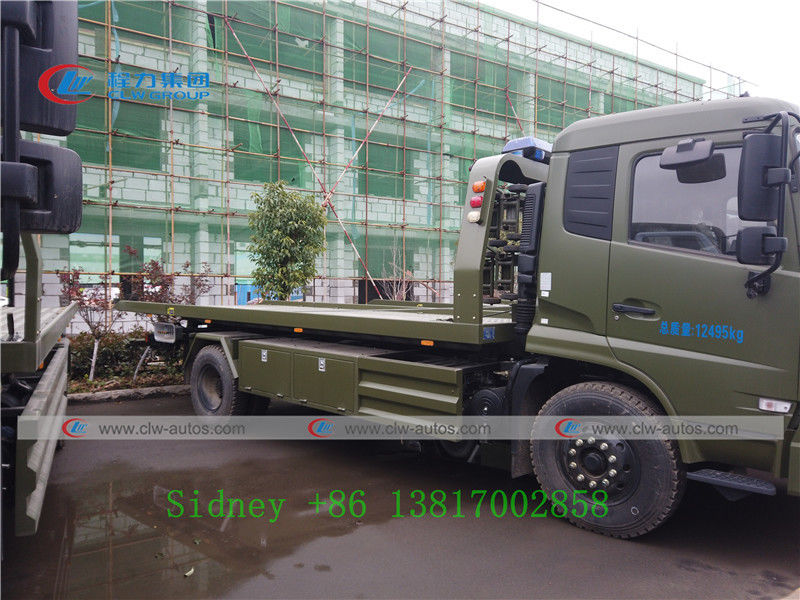

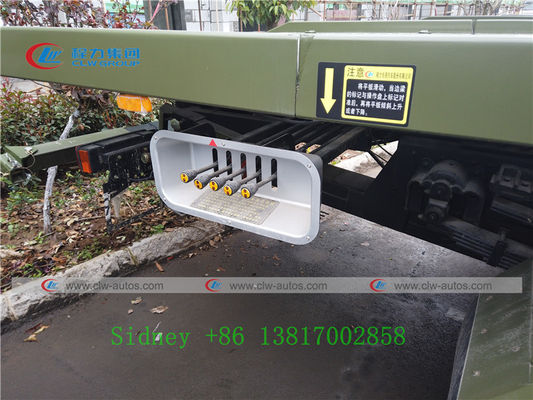

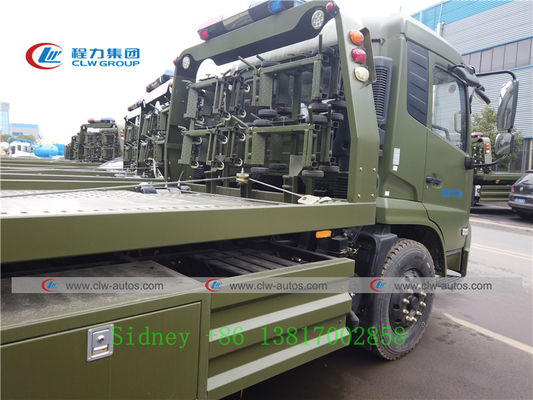

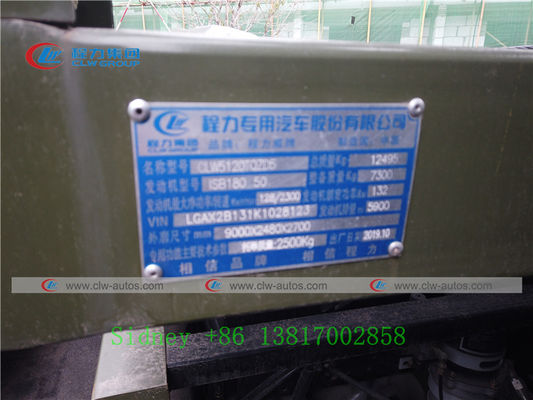

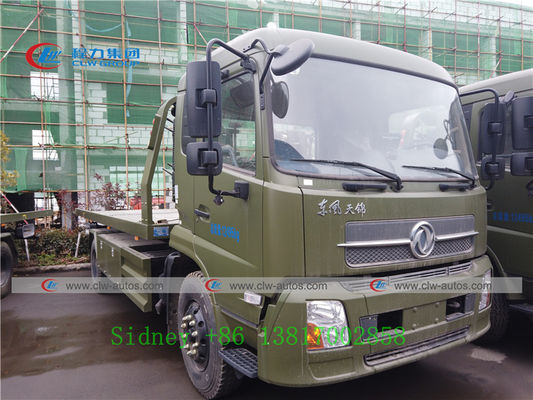

Reference photos

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 0Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 1Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 2Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 3

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 4


Structure drawing


Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 5

Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 6

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 7

Factory overview

Dongfeng Tianjin 140HP 4X2 Flatbed Wrecker Truck 8

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of wrecker trucks I can order from your company?


A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied sweeper products to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
