Product Details:
Payment & Shipping Terms:
|
| Product Name: | Sinotruck HOWO Road Wrecker Recovery Rescue Truck | Engine Horse Power: | 336hp, 371hp. 420hp |
|---|---|---|---|
| Truck Brand: | Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC Etc | Drive Model: | 6x4, 10 Wheels, 8x4, 12 Wheels, |
| Drive Type: | Right Hand Drive, Or Left Hand Drive. | Wrecker Type: | 360 Degree Rotation. 360 Degree Rotated. |
| Equipment: | Hydraulic Pump, Oil Cylinder | Main Parts: | Boom, Hoisting, Winches, Landing Leg |
| Loading Capacity: | 30 Tons, 40 Tons, 50 Tons, 60 Tons, 70 Tons Etc | ||
| High Light: | 360 Degree Rotation Wrecker Tow Truck,420HP Wrecker Tow Truck,HOWO 8X4 Emergency Tow Truck |
||

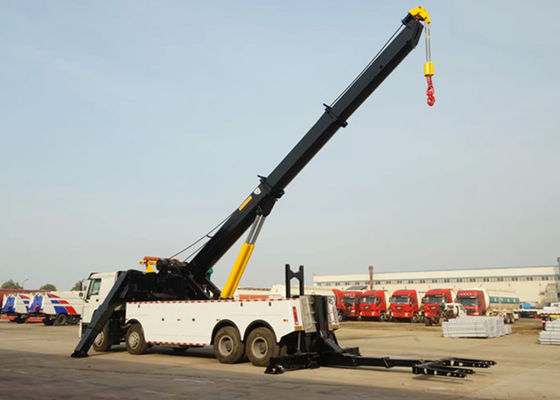

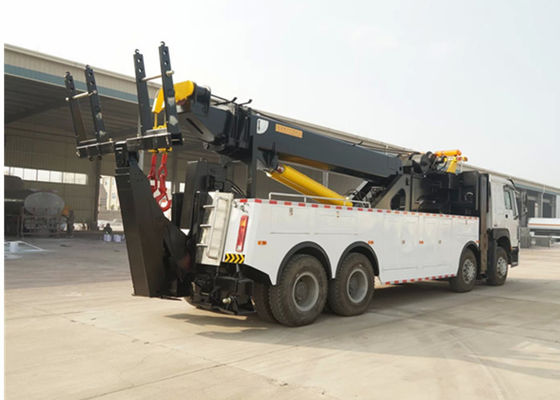

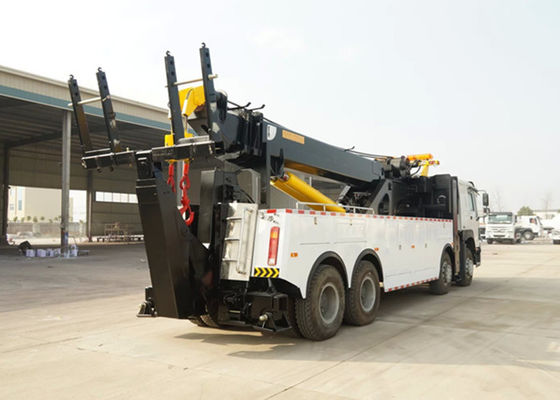

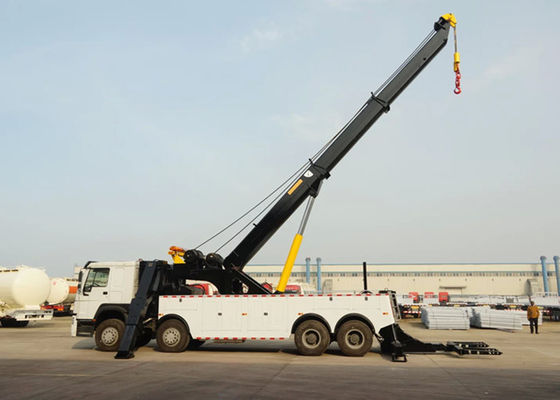

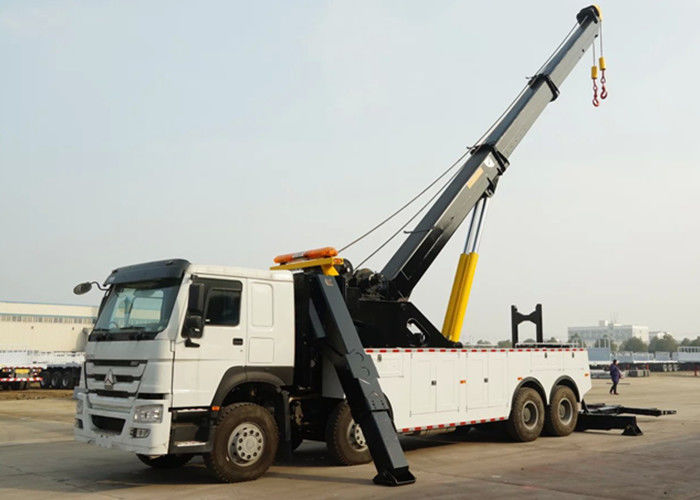

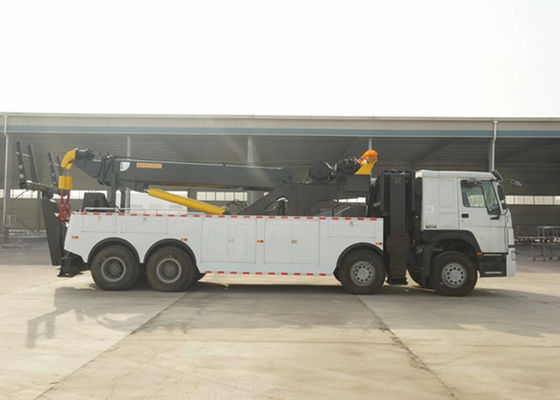

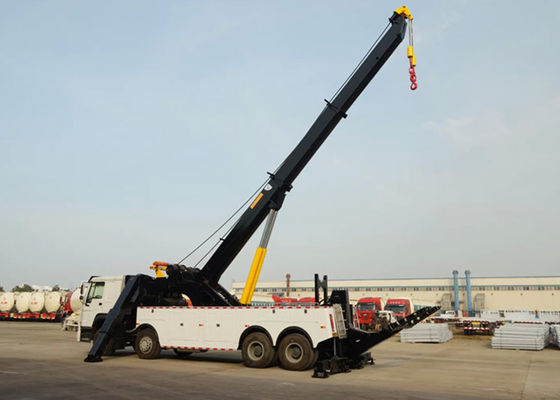

Sinotruk HOWO 8x4 371hp 50tons 50T Road Wrecker Recovery Towing truck 360 Degree Rotation Wrecker Tow Truck
Product Description:
1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows
HOWO 8X4 371HP 420HP 360 Degree Rotation Rotator Road Recovery Truck Vehicle 50 tons Emergency Wrecker Tow Trucks
| Cabin | Driving type 8x4, Left hand drive | ||||
|
HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for ref. |
|||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11460×2500×3270 | |||
| Wheel base (mm) | 1800+4600+1350 | ||||
| Wheel track (front/rear) (mm) | 2022/1830/1830 | ||||
| Approach/Departure angle(°) | 16/18 | ||||
| Weight in KGS | Tare Weight | 24870 | |||
| payload | 30000 | ||||
| Front axles loading capacity | 2x9000 | ||||
| Rear axles loading capacity | 2x16000 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 371HP | ||||
| Emission standard | Euro-2 | ||||
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | ||||
| Tire | 12R22.5 tubeless tire with one spare | ||||
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | ||||
| Steering | ZF8118 | ||||
| Oil tank | 400L | ||||
| Special Device For Wrecker System for 50tons. | |||||
| Hoisting Organ | Rated under-pulling capacity | 50000 | |||
| Max Under-hoisting Capacity (kg) | 50000 | ||||
| Max Under-hoist length (mm) | 1850 | ||||
| Under hoisting work angle | -10~85° | ||||
|
Lifting Organ
|
Max lifting capacity(kg) | 50000 | |||
| Max lifting high(mm) | 12000 | ||||
| Telescope length(mm) | 6000 | ||||
| Winch | 25000kgs×2 | ||||
| Steel rope | 50M,Φ30 | ||||
| Crane luffing angle | 5°~ 60° | ||||
| Crane rotation angle | 360°All Rotation | ||||
|
Landing Leg |
Distance between front legs(mm) | 7000 | |||
| Distance between rear legs(mm) | 4300 | ||||
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
