30000 Liters Q370r LPG Skid Station With Dispenser

30000 liters LPG Skid Station 30M3 LPG Gas Plant 15MT 15TONS LPG Refilling Gas Tank Station With Dispensers

Product Description

lpg refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.

Feature

1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp

Product Specification;

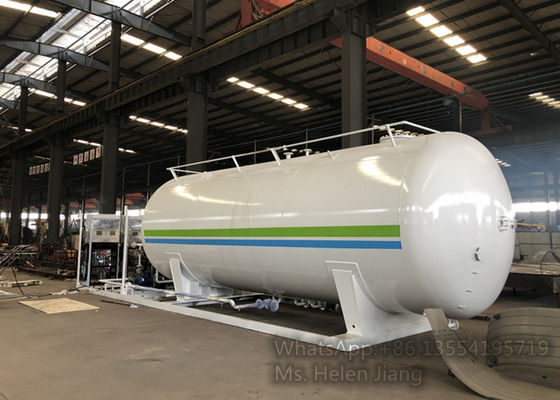

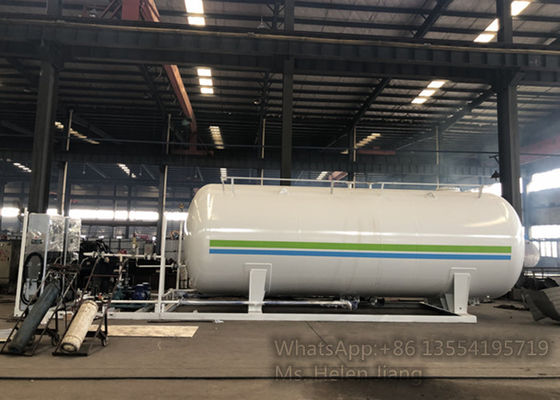

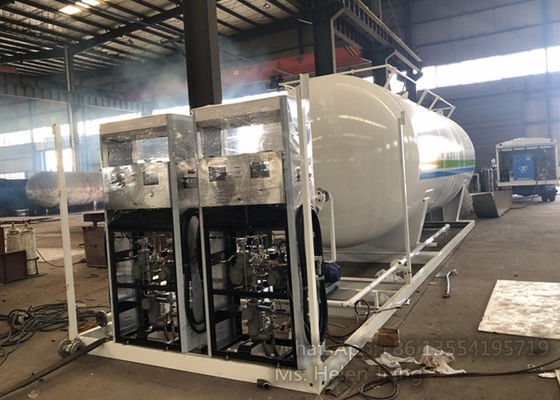

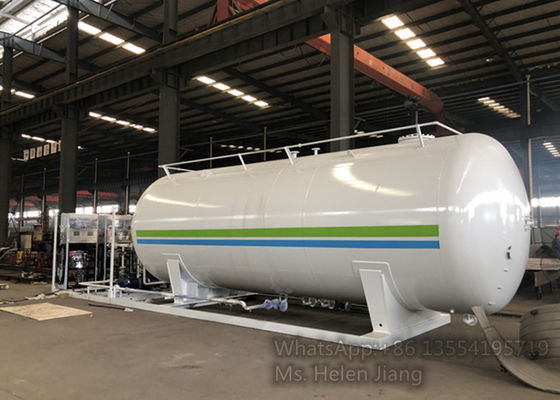

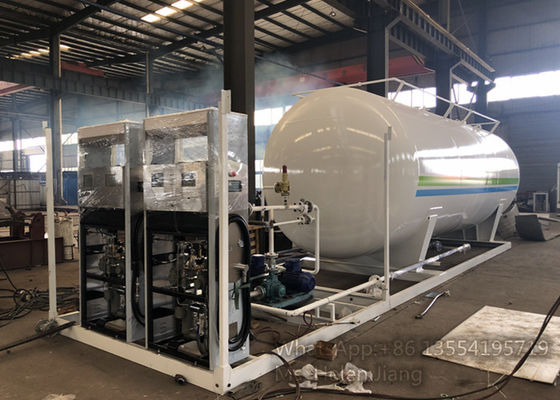

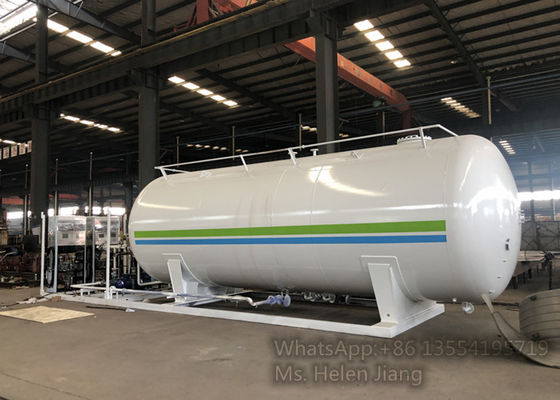

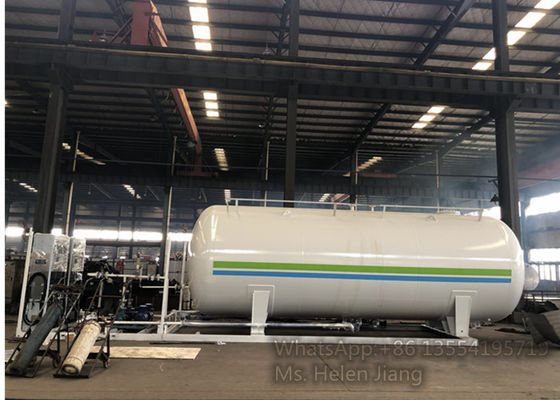

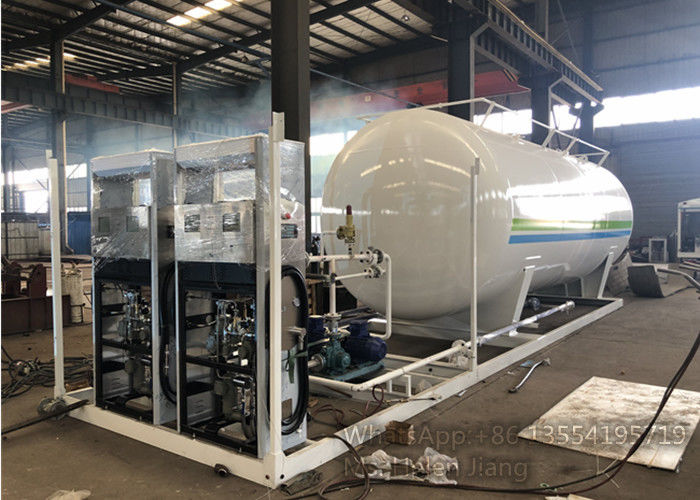

Product 30000Liters LPG skid station's pictures:

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

-- Design pressure of Underground LPG tank: 1.77Mpa;

-- hydraulic testing pressure:2.21 Mpa;

-- Corrosion allowance: 1mm;

-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
