Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | HOWO,DONGFENG,ISUZU,FAW,JAC,JMC | Towing Capacity: | 20-30 Tons |
|---|---|---|---|
| Color: | White,yellow,Blue As Customized | Steering: | LHD,RHD,right Hand Drive,left Hand Drive |
| Engine: | 336hp | Wrecker Type: | Wheel Lift,intergrated,flatbed,lift Flatbed |
| High Light: | 20T Emergency Tow Truck,6x4 Emergency Tow Truck,20T Recovery Tow Truck |
||
SINOTRUK HOWO 6x4 20tons 25T wrecker truck emergency recovery towing conjoined truck
Product Description:
Wrecker tow truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck, towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Specifications
| Chassis No. | ZZ1257 (EUROIII) |
| Chassis Brand | Sinotruk Howo |
| Engine No. | WD615.95/WD615.96 |
| Engine Power (KW) | 247/276 |
| Oversize (L×W×H) | 10645×2496×3250(3420)mm |
| Total Weight | 19500/20400 Kg |
| Max Weight | 32000 Kg |
| Axles | 3 |
| Drive | 6x4 |
| Wheelbase | 5825+1350 mm |
| Tire Qty | 10 +1 spare tire |
| Tire | 11.00-20,12.00-20 |
| Upper structure(Wrecker body) | |
| Max lifting capacity-Optional | 20000 Kg |
| Max lifting high-Optional | 5000/9600 mm |
| Lift-hoist telescope length-Optional | 3530 mm |
| Winch rating pulling capacity | 10000 Kg*2 |
| Length of steel | 40 m*2 |
| Max under-hoist useful length | 3100 mm |
| Rating under-hoisting capacity | 12370/11470 Kg |
| Fully extended max under-hoisting capacity | 7500/7000 Kg |
| Rating under-pulling capacity | 32000 Kg |

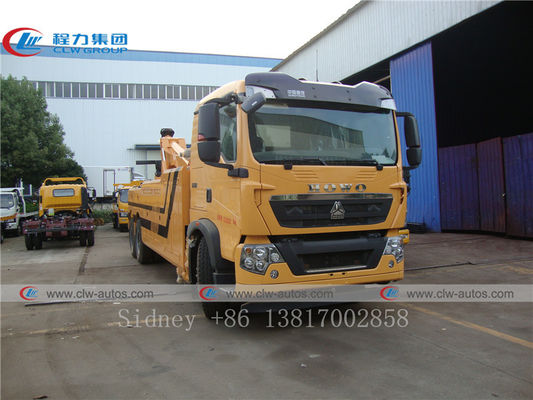

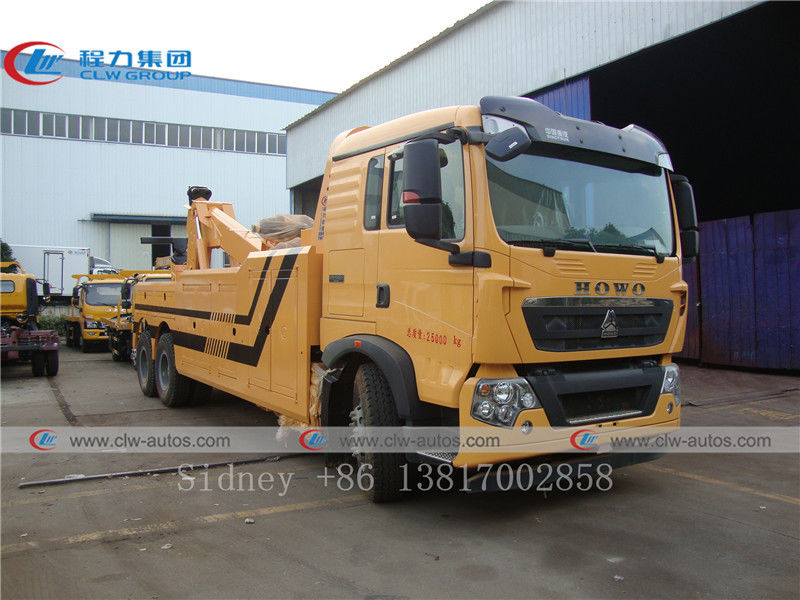

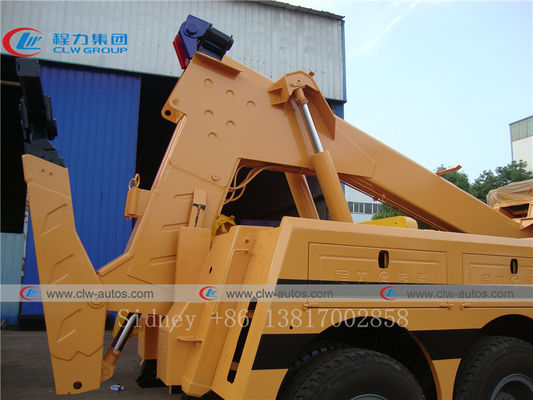

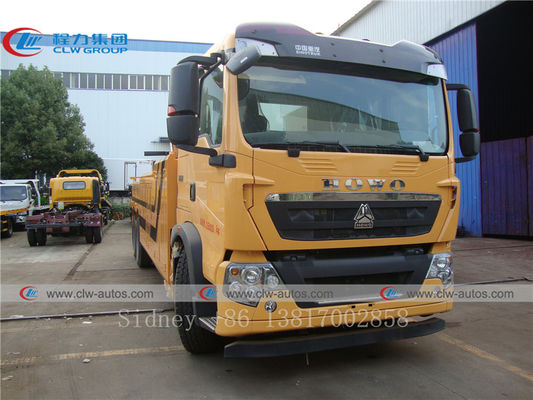

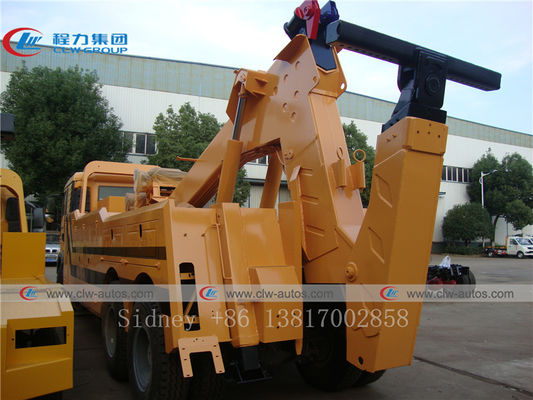

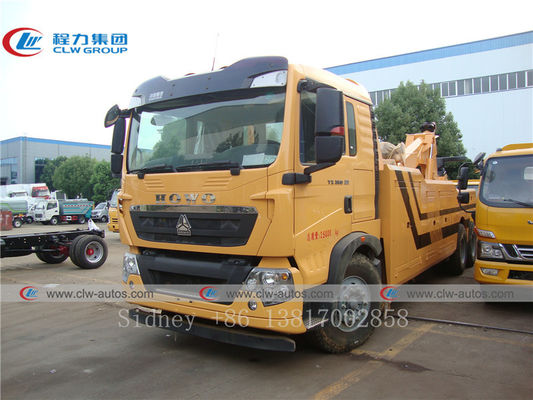

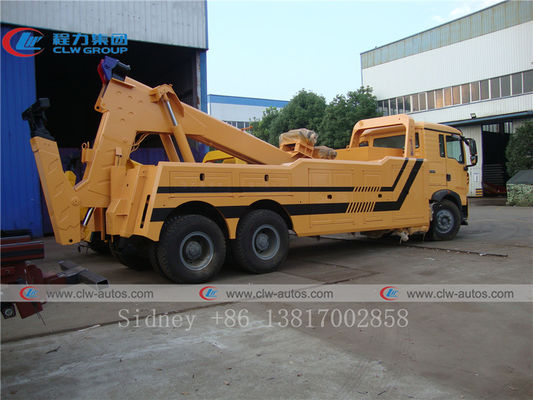

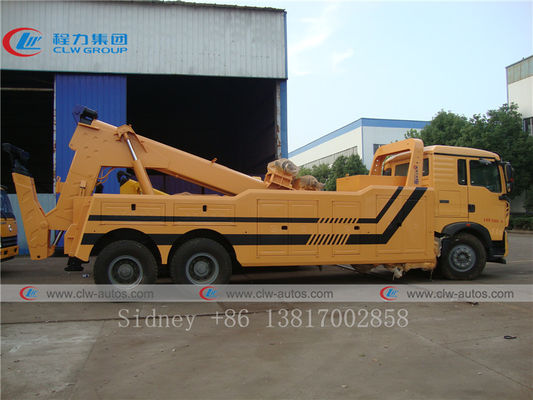

Reference Photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of intergrated tow truck I can order from your company?
A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your requests.We will recommend you suitable product.
Q2: Have you supplied intergrated tow truck to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
