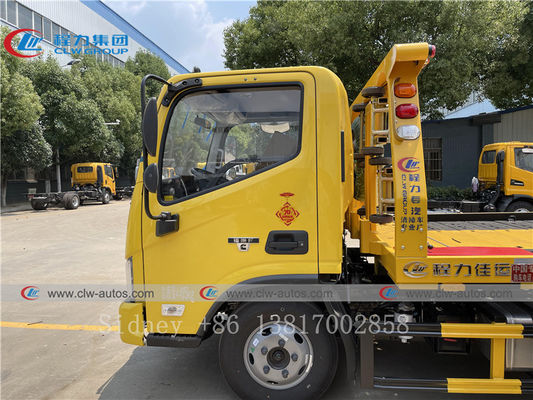

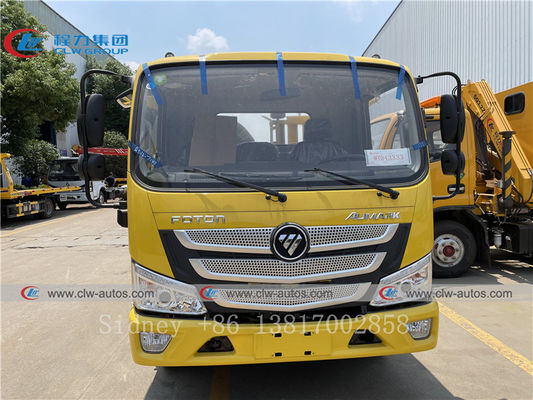

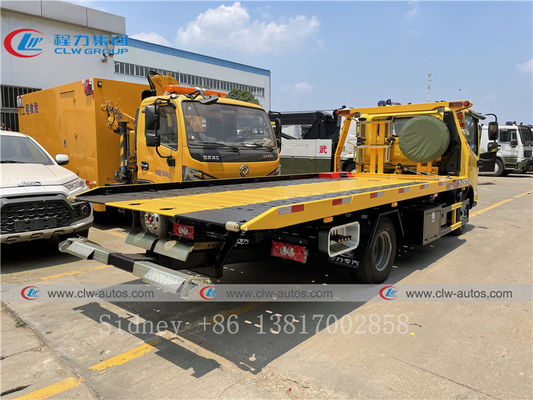

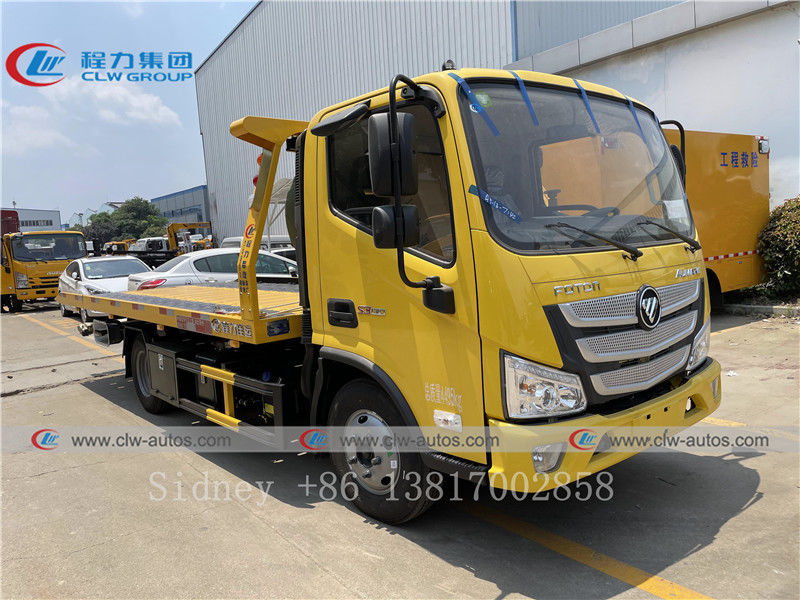

FOTON AUMARK 3tons 4tons Flatbed Wrecker Towing Trucks
Description
1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.
2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.
3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.
4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.
5. We have different brands of truck chassis to make the wrecker tow truck.
6. The tow truck chassis are Foton, SINOTRUK HOWO, Dongfeng, FAW, ISUZU, JAC etc.
Specification
| ITEM | UNIT | DESCRIPTION |
| Vehicle name | FOTON Aumark 3ton flatbed wrecker tow truck | |
| Overall dimension | mm | 5995×2300×2350 |
| Flatbed dimension | 4200×2300 | |
| Curb weight | kg | Appro×4100 |
| Flatbed loading weight | Appro×3000 | |
| Carriage arm towing weight | Appro×2000 | |
| Wheel base | mm | 3360 |
| Front/Rear overhang | 1095/1540 | |
| Approach/departure angle | ° | 22/12 |
| Standard configuration | 1) Flatbed weighing capacity 3 ton,widely used in transporting cars, vans, SUVs, mini vans. | |
| 2) Hydraulic control flatbed extend and rollback. | ||
| 3) A 4 ton winch, 25m steel rope. | ||
| 4) Hydraulic tail plate,thickness 8mm,length 1m. | ||
| 5) Rear carriage arm towing capacity 2 ton, hydraulic control lifting. | ||
| 6) Rear tail lights LED,both sides electronic lights. | ||
| 7) 2pcs auxiliary wheels | ||
| 8) 4pcs bunding belt | ||
| Chassis Parameter | ||
| Cabin | Single row cabin,air conditioner, cabin roof warning light, 2 passengers | |
| Drive form | 4×2 | |
| Engine |
Brand : CUMMINS Model : ISF2.8s5129T, 129hp Type : diesel, 4 cylinder, turbocharged, intercooled. Displacement : 2780ml Emission standard : Euro 5 |
|
| Transmission gearbox | 5-speed, manual | |
| Tire model | 7.00R16 | |
| No.of tires | 6 pcs | |
| Item No. | Name |
| 1 | chassis |
| 2 | Warning lamp |
| 3 | Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 | Winch and steel rope |

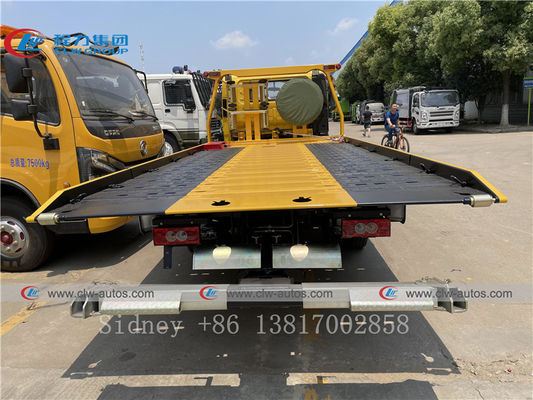

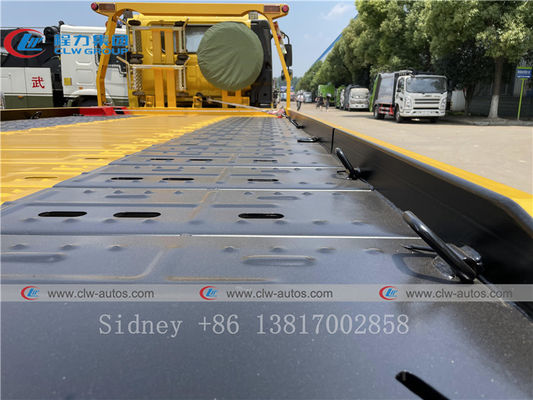

| 5 | Loading plate |
| 6 | Side signal lamp |
| 7 | Chain hook |
| 8 | Wheel lift |
| 9 | “L” bracket |

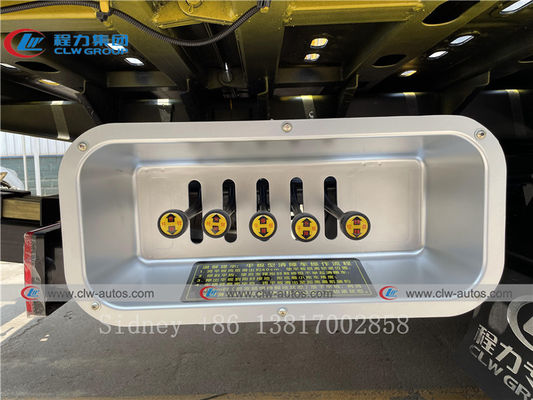

| 10 | Operation and hydraulic system |

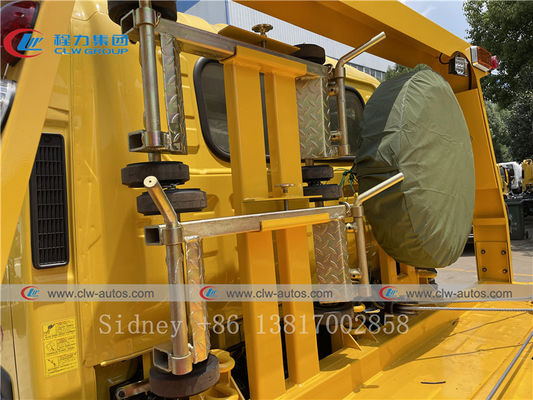

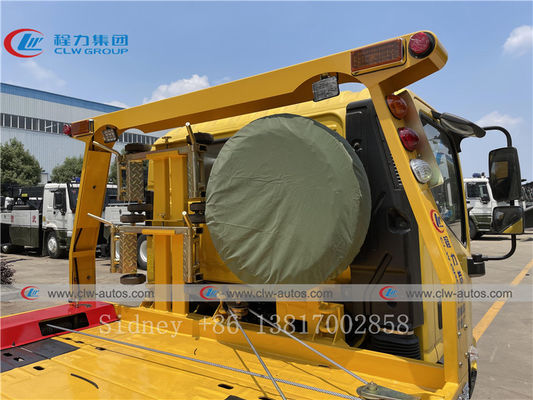

| 11 | Auxiliary wheel |
| 12 | Side guard rail |
| 13 | Tool box and accessories |
| 14 | PTO and oil pump |
| 15 | Witch and operation handle of PTO |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
