Product Details:
Payment & Shipping Terms:
|
| Product Name: | ISUZU Wrecker Recovery Rescue Towing Truck | Truck Brand: | Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC Etc |
|---|---|---|---|
| Drive Model: | 4x2, 6 Wheels, 6 Wheeler | Drive Type: | Right Hand Drive, Or Left Hand Drive. |
| Max. Loading Weight: | 4000KG, 5000KG, 4 TONS, 5 TONS, | Equipment: | Hydraulic Pump, Oil Cylinder |
| Main Parts: | Boom, Hoisting, Winches, Landing Leg | Wire Rope: | 25 Meters |
| Other: | With XCMG Brand Straight Arm Crane | ||
| High Light: | 5T Flatbed Towing Truck,ISUZU Flatbed Towing Truck,LHD Recovery Tow Truck |
||

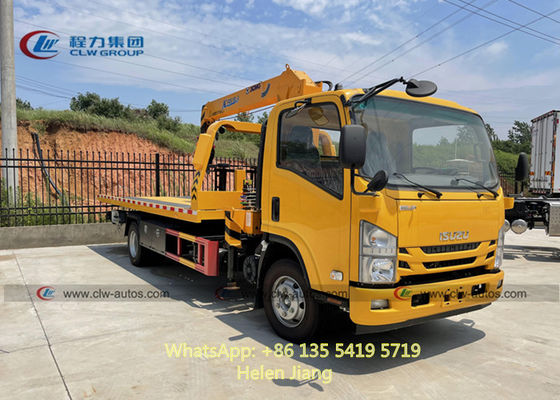

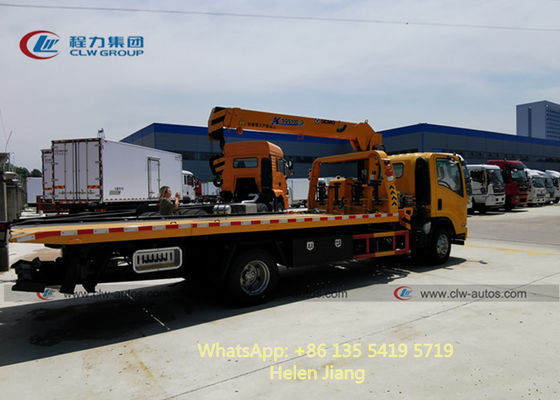

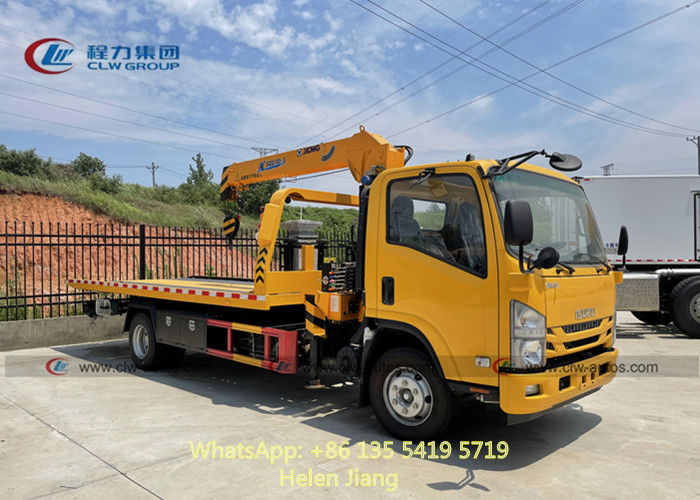

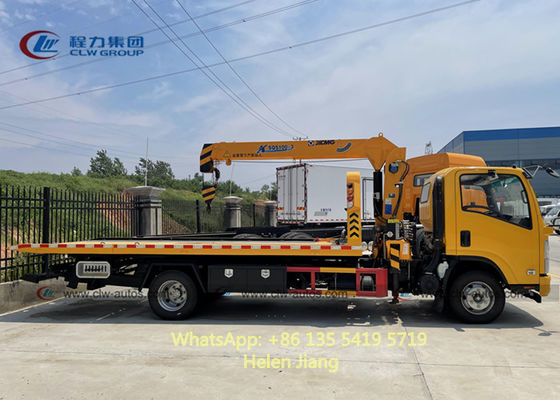

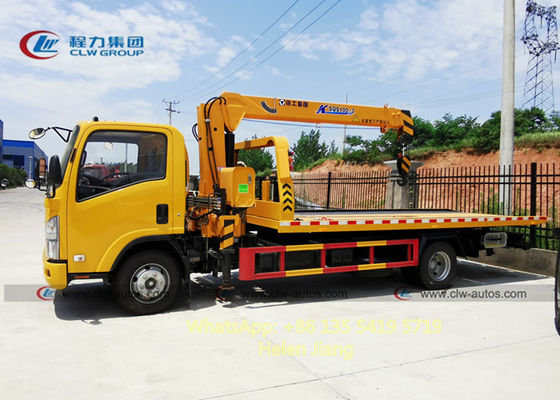

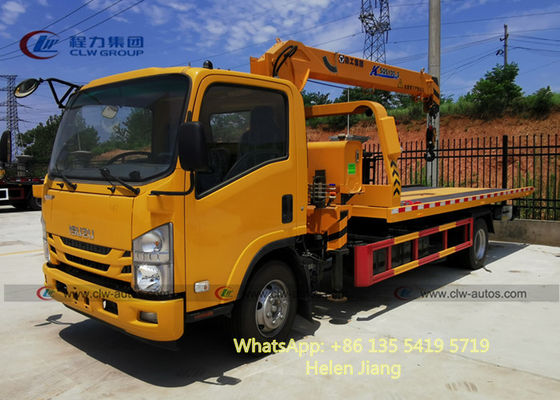

Japanese ISUZU 4x2 5T Road Recovery Wrecker Flatbed Towing Truck With XCMG Crane
Product Description:
1. Purpose of 4ton flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.
Specification:
| Description | ISUZU 4X2 Flatbed Towing Truck LHD | |
| Drive Model | 4X2 | |
| Chassis | QL1070 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 7645X2180X2610 |
| Wheel base (mm) | 3815 | |
| Overhang (front/rear) (mm) | 1015/1815 | |
| Wheel track (front/rear) (mm) | 1504/1425 | |
| Approach/Departure angle(°) | 24/14 | |
| Weight in KGS | GVW. | 6990 |
| Curb Weight | 2220 | |
| Max. driving speed(km/h) | 95 | |
| Allowable passengers in cab | 2 | |
| Engine | Model | 4KH1-TCG40 |
| Type | 4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 120 | |
| Emission standard | Euro IV | |
| Gearbox | 5 forwards & 1 reverse | |
| Fuel tank (L) | 120L | |
| Tire | 6.50-16-14PR, 6 pieces+1 spare tire | |
| Operation control system | Electrically hydraulic control | |
| UPPER |
| Platform Organ | Length(mm)×Width(mm) | 5600*2300 | |
| Operating stroke(mm) | 2680 | ||
| Min. angle of slope(°) | 8 | ||
| Rated loading weight(kg) | 4000 | ||
| Rated winch traction weight(kg) | 4000 | ||
| Length of steel wire rope(m) | 21 | ||
| Ground clearance of cage floor(mm) | 470 | ||
| Hoisting Organ | Max. length of extended boom(mm) | 1680 | |
| Rated lifting weight(kg) | 3635 | ||
| Max. extended lifting weight(kg) | 2500 | ||
| Rated traction weight(kg) | 5000 | ||
| Elevation of boom (upper/ lower)(°) | 9~-10 | ||
| Other Equipment | One tool box, one alarm lamp, two auxiliary wheels and 4 bandages | ||
| With 1-2tons XCMG brand Straight Arm Crane | |||
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
