Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dongfeng Off Road Wrecker Recovery Rescue Truck | Engine Horse Power: | 340HP, Cummins Diesel Engine |
|---|---|---|---|
| Truck Brand: | Dongfeng HOWO, SHACMAN, FAW, FOTON, JAC Etc | Drive Model: | 6x6, 10 Wheels, All Wheel Drive 8x4, 12 Wheels, |
| Drive Type: | Right Hand Drive, Or Left Hand Drive. | Wrecker Type: | 360 Degree Rotation. 360 Degree Rotated As Option |
| Equipment: | Hydraulic Pump, Oil Cylinder | Main Parts: | Boom, Hoisting, Winches, Landing Leg |
| Loading Capacity: | 12tons 16 Tons, 20 Tons, Etc | ||
| High Light: | 16T Off Road Recovery Tow Truck,6x6 Off Road Recovery Tow Truck,Dongfeng Off Road Tow Truck |
||

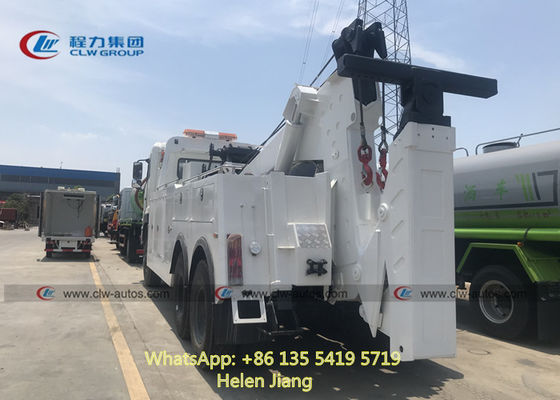

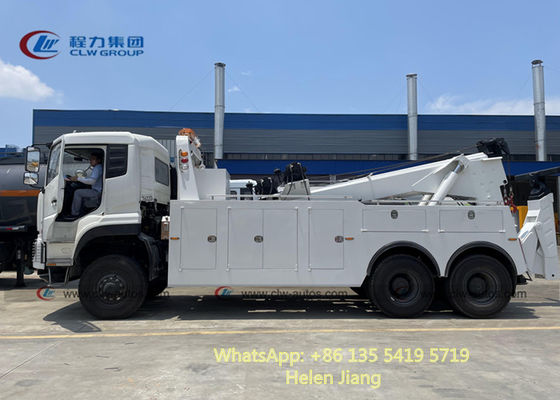

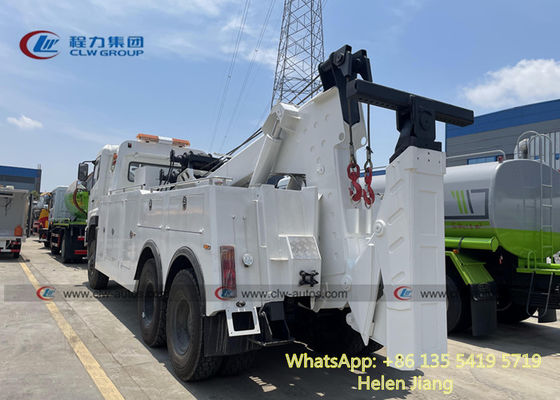

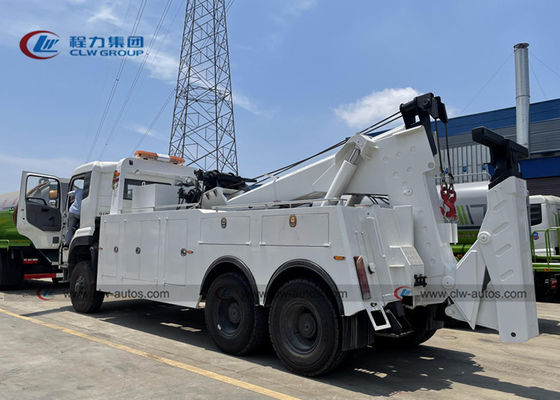

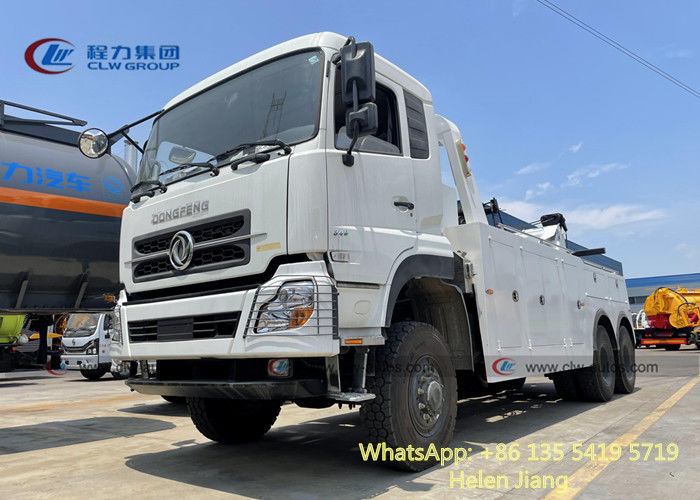

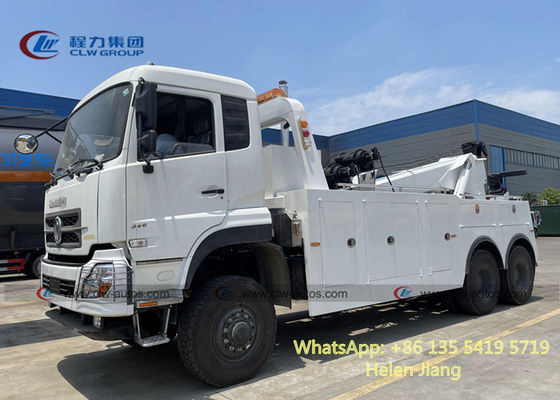

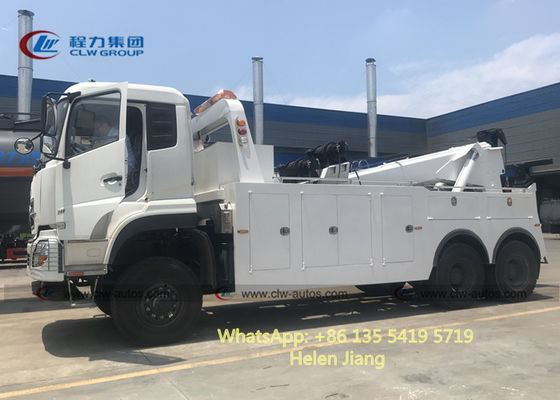

Dongfeng 6X6 All Wheel Drive 16T 16tons Off Road Rescue Recovery Wrecker Truck
Product Description:
1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows
Feature
-- Powerful howo 6X6 off road truck chassis;
-- 360 ° rotation rotator towing truck;
-- Italy hydro control control valve and balance valve;
-- Wuxi oil hydraulic pneumatic equipment co ltd;
-- One-step modeling compartment plate by germany 3P2A punching machine;
-- Adopting American wrecker design and manufacturing technology.
-- Key components using the finite element stress analysis (CAE technology)
-- Adopting high quality high-strength steel for important components
-- Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
-- The key hydraulic lines seals imported from Germany.
-- All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.
-- Equipped with various fork lifts (including leaf spring forks).
-- High and low fork combined with various fork lifts.
-- Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
-- Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
-- Boom with 360 degree continuous rotation.
-- Equipped with trailer towing disk, remote control is optional.
Specification:
| Special Device For 20tons Wrecker System | ||
| Hoisting Organ | Max hoisting weight(kg) | 7400 |
| Max Hoisting Weight under all extension(kg) | 4000 | |
| Max Under-hoisting Capacity (kg) | 16000 | |
| Max Under-hoist length (mm) | 1600 | |
| Extension Distance of oil Cylinder(mm) | 2800 | |
| Under hoisting work angle(°) | -10~2° | |
|
Lifting Organ
|
Max lifting capacity(kg) | 20000 |
| Basic arm length(mm) | 5393 | |
| Total arm length(mm) | 11393 | |
| Telescope length(mm) | 6000 | |
| Max lifting height(mm) | 11500 | |
| Crane lifting angle | 0°~ 60° | |
| Crane rotation angle | 360° | |
| Winch | Quantity | 2 |
| Max. Pulling power | 15000kgs*2 | |
| Winch rated hoisting force(KN) | 150×2 | |
| Steel rope | 50M length,Φ22mm | |
|
Landing Leg |
Quantity | 4 |
| Type of front Landing leg | H Type | |
| Type of rear Landing leg | L Type | |
| Max Under-hoisting Capacity (kg) | 2494 | |
| Distance between rear legs(mm) | 4650 | |
| Equipped |
Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly
|
|
